eSSL Automatic Swing Gate Openers | Heavy-Duty Gate Operators for Commercial & Industrial Access Control

What Are Automatic Swing Gate Openers?

A swing gate opener is an automated mechanical system designed to operate swing gates without manual effort by using electrical, electronic, or electromechanical components. eSSL offers a comprehensive range of heavy-duty automatic swing gate openers for industrial units, corporate offices, gated communities, and commercial facilities. These robust systems enable controlled opening and closing of gates through various input methods such as remote controls, access cards, sensors, mobile apps, biometric systems, or wired switches.

Gate openers consist of a motor, drive mechanism, and a control unit that work together to move the gate in a safe, smooth, and controlled manner. They are engineered to provide convenience, enhance security, regulate access, and improve traffic flow in residential, commercial, and industrial environments. Based upon gate type and application, eSSL has different models of gate openers.

Key Features & Benefits of eSSL Swing Gate Openers

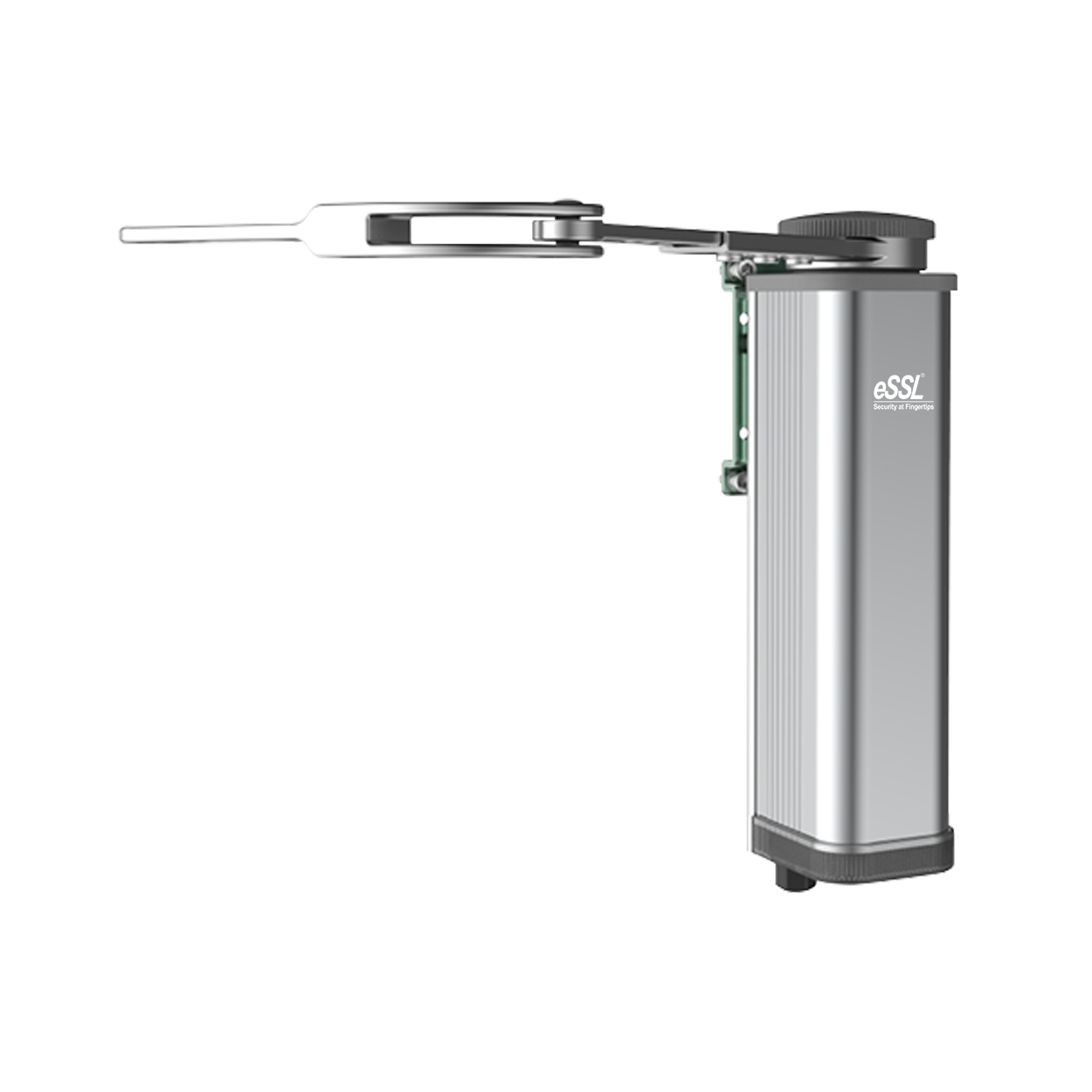

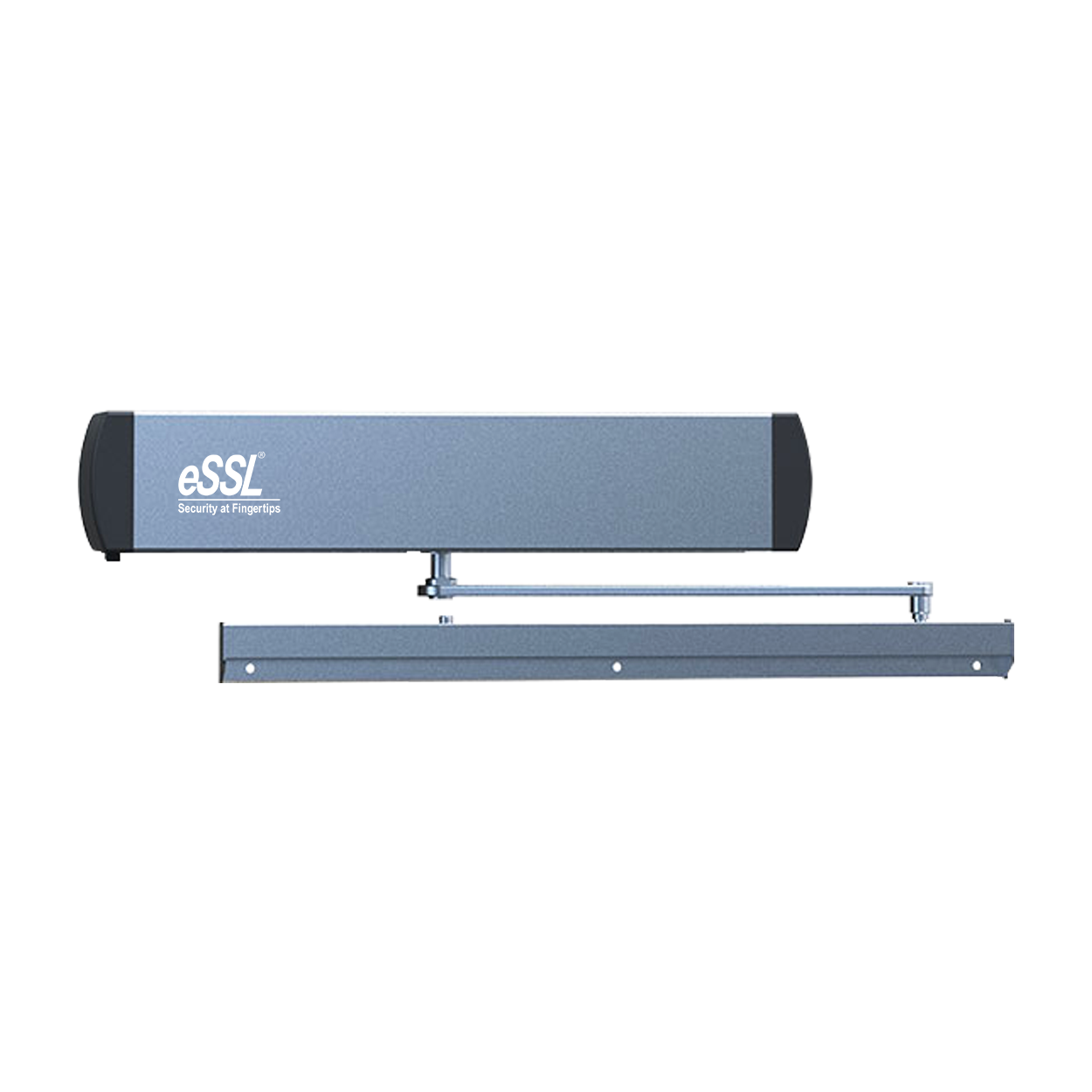

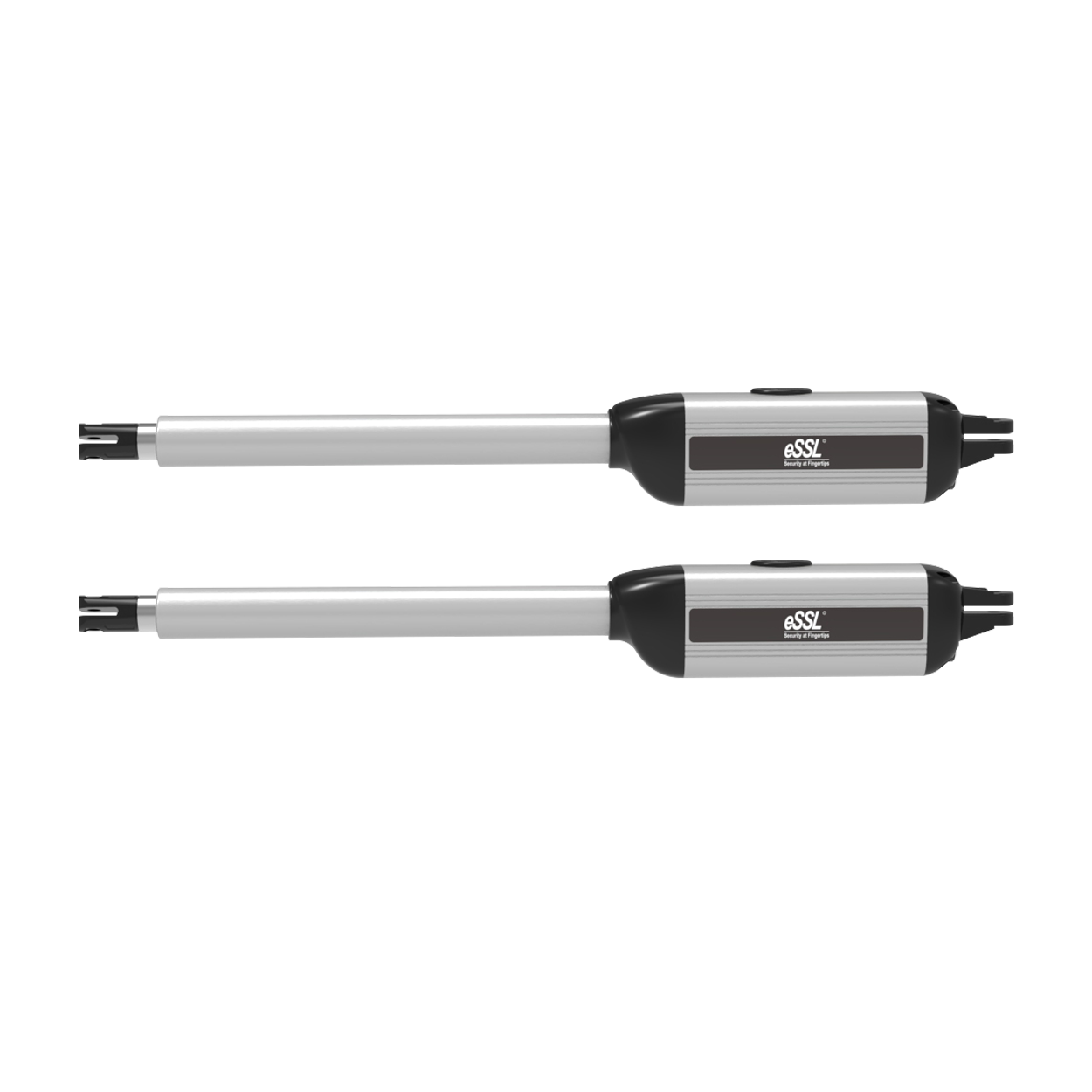

• Multiple Model Options for Every Need: Choose from a range of models including GO-O-03, GO-I-28, and GO-O-29, each designed for specific gate weights and applications—from residential driveways to heavy-duty industrial entrances.
• Robust DC Brushless Motor Technology: eSSL openers feature advanced DC brushless motors (24VDC/40W to 24VDC/90W) for quiet, reliable operation with lower maintenance. These hull-element designs deliver accurate limiting, working stability, and a long lifespan of up to 2 million cycles.
• Comprehensive Safety & Obstacle Detection: Built-in safety features include obstacle detection with auto-reverse, soft start/soft stop for smooth operation, and emergency release mechanism for manual override during power outages.
• Weather-Resistant Outdoor Design: The GO-O-03 and GO-O-29 models feature IP54 protection class, making them suitable for outdoor installation in all weather conditions. They operate reliably in temperatures from -20°C to +55°C.
• Seamless Access Control Integration: All eSSL swing gate openers connect effortlessly with photocell sensors, radar detectors, access control systems—including face recognition, card readers, and fingerprint identifiers—and feature fire alarm linkage for fail-safe operation during emergencies.
• Adjustable Operation Parameters: The open/close force, running speed, auto-close delay, and limit positions are fully programmable. One-button auto-learning simplifies setup and calibration for different gate types.
• Dual Opener Support for Bi-Parting Gates: For wide entrances requiring two gate leaves, eSSL openers offer excellent synchronous operating performance when double openers are installed.

Technical Specifications & Model Comparison

eSSL offers a range of swing gate openers to suit different gate sizes, weights, and applications. Compare our popular models below.

All eSSL swing gate openers feature soft start/stop, obstacle detection with auto-reverse, auto-close function, and support for external photocell, radar, and access control integration. For gates exceeding standard capacities, contact us for custom heavy-duty solutions up to 2000kg.

Advanced Safety & Integration Features

• Obstacle Detection & Auto-Reverse: When the gate encounters an obstacle during operation, it stops and reverses (or returns during closing/stops during opening), preventing damage and ensuring pedestrian and vehicle safety.
• Soft Start & Soft Stop: Ensures smooth, jerk-free gate movement, reducing mechanical stress on the gate hardware and extending the lifespan of the entire system.
• Emergency Release Mechanism: Manual override allows gate operation during power outages or emergencies via a release key, ensuring access is never completely blocked.
• Fire Alarm Linkage Connection: Direct connection to building fire alarm systems forces the gate to open automatically during fire emergencies, providing an unobstructed evacuation path.
• Photocell & Radar Sensor Inputs: External sensors can be connected for enhanced safety (detecting people or vehicles in the gate path) or for automatic activation (radar triggering gate opening).
• Access Control Integration: Seamlessly connects with RFID card readers, QR code scanners, biometric fingerprint readers, and face recognition systems for comprehensive security management.
• Adjustable Operating Parameters: The open/close force, running speed, auto-close delay, and limit positions are programmable via the control board, with one-button auto-learning for quick setup.
• LED Status Indicators: LED lights on the control unit show working status: Green when fully open, red during opening and closing, yellow when blocked or a fault is detected.
• Battery Backup Compatibility: 24V battery can be connected to selected models (GO-O-03) to ensure continued operation during mains power failures.
• Remote Control & Mobile App Operation: Operate your gate using included remote controls, or upgrade to mobile app control for smart access management.

Industry & Facility Applications

eSSL swing gate openers are deployed across a wide range of environments where secure and automated vehicle access is essential:

• Industrial & Manufacturing Facilities: Secure factory entrances, loading docks, material yards, and restricted vehicle zones with heavy-duty gate automation.
• Gated Residential Communities & Villas: Provide residents with convenient remote-controlled entry while maintaining security and access logs for visitors and service vehicles.
• Corporate Office Parks & IT Hubs: Manage vehicle access to campus parking, executive areas, and delivery zones while integrating with employee access credentials.
• Government & Defense Installations: Secure perimeters and checkpoints with high-reliability gate operators featuring emergency override and access control integration.
• Commercial Complexes & Retail Centers: Automate parking entry/exit, manage delivery vehicle access, and enforce visitor management protocols.
• Farm & Agricultural Properties: Automate remote entrance gates for convenience and security on large rural properties.
• Warehouses & Logistics Hubs: Control truck and vehicle access to loading bays and secure storage areas with programmable operation schedules.
