What Are Door Controllers?

A door controller is the centralized intelligence behind any modern access control system. It serves as the processing hub that manages and monitors access to secured doors by communicating between credentials (RFID cards, biometric data, keypad PINs) and door hardware (electric locks, magnetic locks).

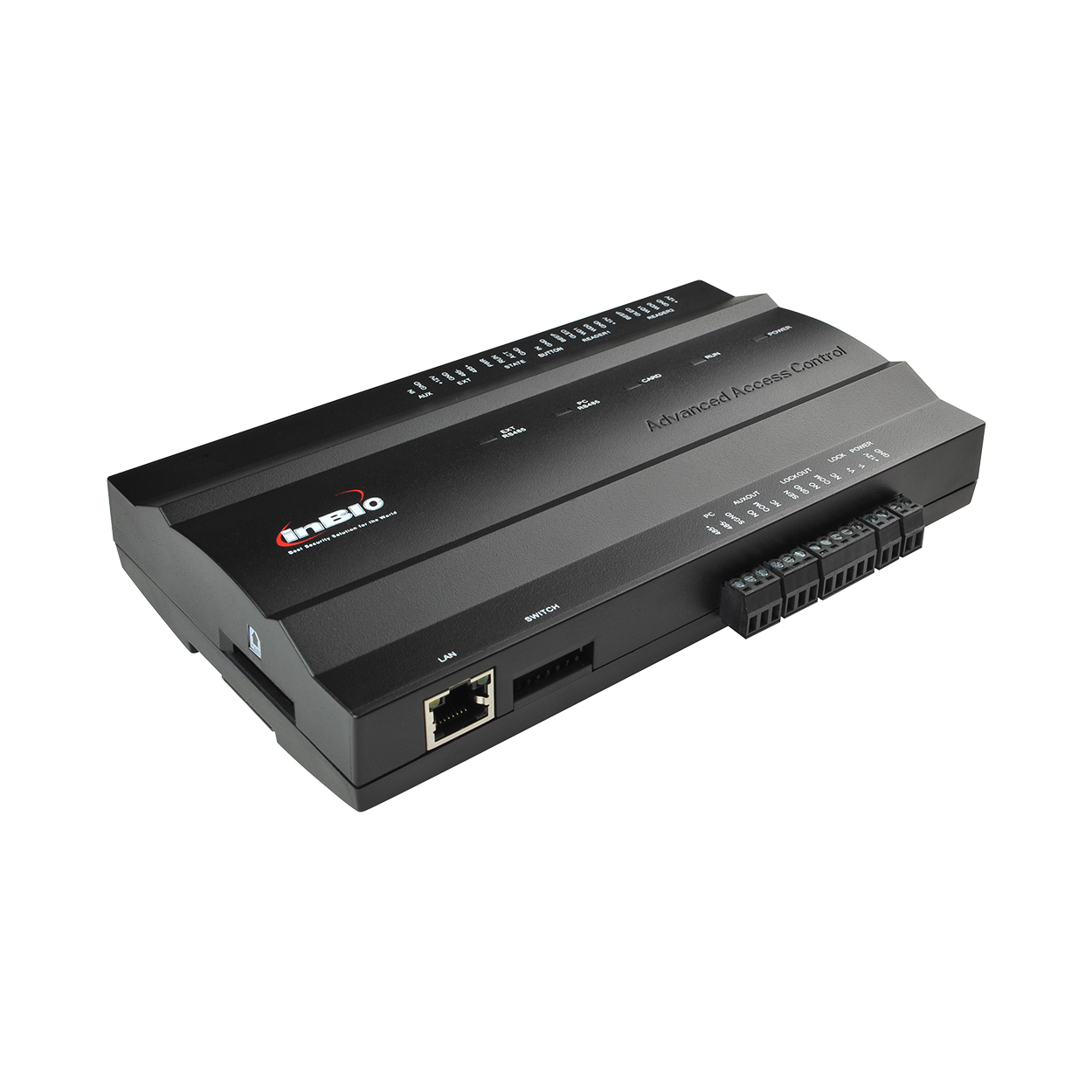

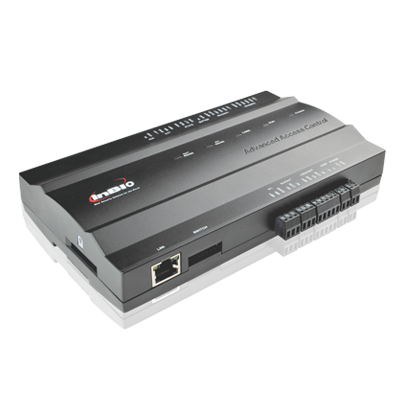

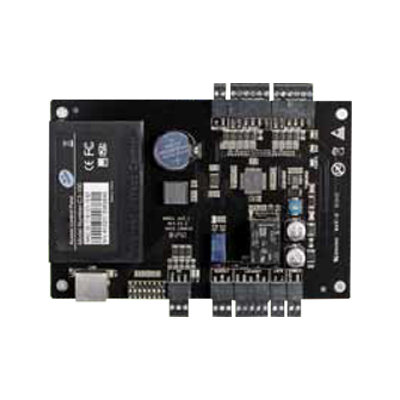

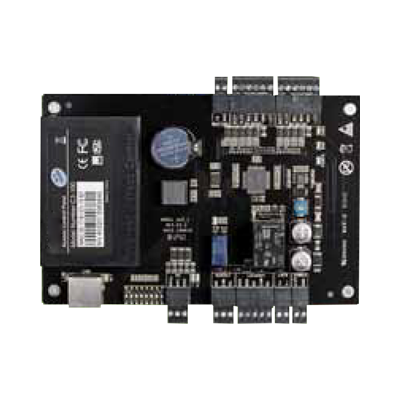

eSSL brings you the latest door access control systems — available as 2-door controllers and 4-door controllers. These robust devices give you complete control over who, where, and when people can access your organization's premises. Every user access can be controlled door-wise and time-wise, and advanced features like Anti-Passback, Interlocking, Linkage, and fire panel integration can be enabled for sensitive zones.

Key Features & Benefits of eSSL Access Control System

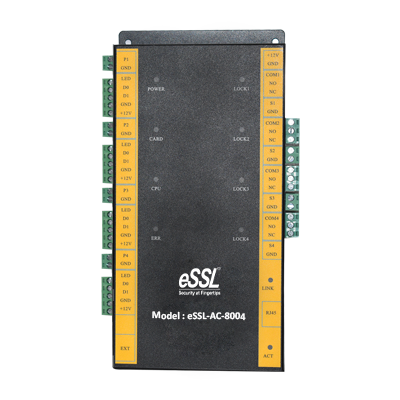

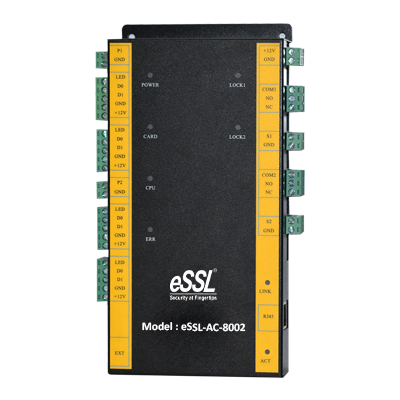

• 2-Door & 4-Door Configurations: Choose between 2-door (eSSL-Access-8002) and 4-door (eSSL-Access-8004) models to match your facility's size. Multiple controllers can be networked together to scale to any number of doors.
• High User Capacity: Supports 20,000 to 30,000 cardholders and stores up to 100,000 transaction events — ideal for high-traffic environments like factories, universities, and corporate campuses.
• Anti-Passback (APB): Prevents credential sharing and tailgating by requiring users to present their credential at an exit reader before re-entry is permitted. This ensures one credential = one person at all times.
• Interlocking Function: Link multiple doors with logical rules — for example, ensuring Door A must be closed before Door B can open. This is critical for secure zones like laboratories, data centers, and vault rooms.
• Fire Panel Integration (Fail-Safe): Automatically unlocks all doors when the fire alarm is triggered, ensuring safe and rapid evacuation. Controller automatically sends unlock signals when connected to building fire safety systems.
• Multi-Card Opening: Requires multiple authorized credentials to be presented simultaneously to unlock a door — ideal for highly sensitive areas like cash rooms, armouries, or security command centers.
• 256 Time Zones & Access Levels: Configure granular access permissions based on shifts, departments, or security clearances. Define exactly when each user can access each door — down to the minute.
• TCP/IP Network Connectivity: Built-in 10M/100M adaptive Ethernet port enables real-time monitoring, remote access control, and seamless integration with your existing IT network. Centralized management from any browser-enabled device.
• Extreme Temperature Operation: Engineered to perform reliably in harsh environments with an operational temperature range of -40°C to +70°C and humidity tolerance of 10-90% RH, non-condensing.
• eSSL Access Management Software: Generates comprehensive door-wise and user-wise reports. Provides real-time monitoring, log retrieval, access right management, and audit trails. Database support includes MS Access and MS SQL.

Access Control System Technical Specifications (Model-Dependent)

Access Control System Advanced Security Features

• Anti-Passback (Hard & Soft): Prevent credential reuse and tailgating. Hard APB blocks re-entry without an exit log; Soft APB only logs the violation without blocking access — choose based on your security requirements.
• Interlock Function: Link doors with programmable logic — perfect for mantrap zones and secure areas requiring one door closed before another opens.
• Duress Mode: Users can trigger a silent alarm by presenting a special duress credential or PIN under coercion, automatically notifying security personnel without alerting the intruder.
• Multi-Card Opening: Requires multiple users to present credentials simultaneously — essential for high-security zones like cash rooms, server rooms, and research labs.
• Remote Door Opening: Administrators can remotely unlock doors from the management software — ideal for visitor access, deliveries, or emergency scenarios.
• First Card Normal Open: The first valid credential presented in the morning can automatically hold the door open during specified hours, streamlining employee access during peak times.
• Integrated Hardware Protection: Multiple protection measures including over-current protection, over-voltage protection, and reversal protection for all power supply and input/output terminals, ensuring maximum reliability and preventing hardware damage.
• Power Interruption Protection: High-speed memory ensures records are never lost during power failure. All transaction data is preserved, and the system resumes normal operation automatically when power is restored.

Seamless Integration Capabilities

• Security System Integration: Integrates with CCTV systems, fire alarm panels, building automation systems (BAS), and intrusion detection systems to create a unified, multi-layered security ecosystem.
• Multiple Reader Support: Compatible with Wiegand 26/34 readers, supporting EM ID cards, Mifare, HID, and other proximity technologies. Also supports eight-bit burst for PIN entry.
• Biometric Compatibility: Works seamlessly with eSSL fingerprint readers and face recognition systems alongside traditional card readers, providing multi-factor authentication options.
• HRMS & Payroll Integration: Integrates with leading ERP systems, third-party HRMS platforms like Spine, GreytHR, HROne, Zoho CRM, and payroll software including Candle, Saral, and Oracle for unified workforce management.
• Software Development Kit (SDK): Available for customers and system integrators to develop custom access control software or integrate eSSL controllers into existing security platforms.
• B/S Architecture: Browser-based management allows system administrators to control and monitor access from any client PC with a web browser — no dedicated software installation required on each workstation.

Industry & Facility Applications

eSSL Access Control System are deployed across a wide range of environments where multi-level access control is essential:

• Corporate Campuses & IT Parks: Control access to different departments, meeting rooms, executive cabins, server rooms, and restricted zones across multiple floors.
• Educational Institutions: Regulate access to exam rooms, laboratories, libraries, administrative offices, and faculty areas with time-based permissions.
• Residential Complexes & Apartment Buildings: Provide secure keyless entry to main gates, lobbies, stairwells, utility rooms, and parking areas while restricting unauthorized movement.
• Healthcare Facilities: Ensure compliance by restricting access to ICUs, operation theatres, pharmacies, laboratories, and medical records rooms to authorized personnel only.
• Industrial & Manufacturing Plants: Isolate hazardous zones, equipment rooms, material storage, and sensitive production areas to protect workers and prevent security breaches.
• Hotels & Hospitality: Control access to staff areas, back offices, storerooms, executive floors, and guest service zones while maintaining guest privacy and security.~
• Government & Public Buildings: Secure sensitive offices, record rooms, and restricted areas while maintaining audit trails for compliance and security accountability.
