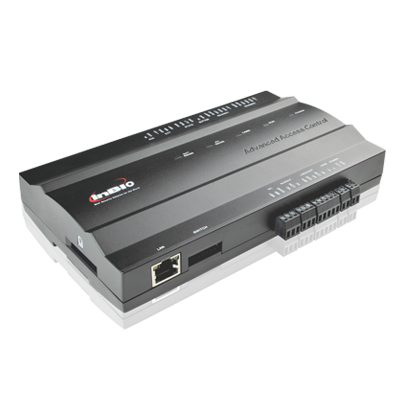

eSSL inBio‑460 – 4‑Door Biometric Controller for Identity Management and Access Control
Centralise identity management and access control with a true IP‑based biometric panel. On‑board fingerprint matching, 30,000 cardholders, 4 doors, and a rich set of advanced access control functions – all managed from a web browser.
The eSSL inBio‑460 is a complete hardware platform that fuses identity management and access control in a single, scalable package. Unlike conventional controllers that only pass card numbers, the inBio‑460 performs fingerprint matching directly on the panel, giving you blazing fast response and higher security. It manages up to 4 doors, supports 30,000 cardholders, 3,000 fingerprint templates, and stores 100,000 event records – everything you need for medium to large enterprises.
🔒 Core Identity Management and Access Control Features
Fingerprints are matched inside the controller, not on the reader. FR Series readers send encrypted templates via RS‑485 for fast, accurate authentication.
Control entry and exit on four doors. Supports 8 RS‑485 (biometric) readers + 4 Wiegand (card / PIN) readers – enough for the most demanding layouts.
Prevent tailgating and enforce one‑card‑one‑entry rules. Ideal for high‑security zones that require strict identity management and access control.
Configure doors to open only when the first valid card is presented, or require multiple credentials for sensitive areas (labs, data centres, cash rooms).
Trigger a silent alarm using a special password. Connect exit buttons, door sensors, fire alarms, CCTV, intrusion panels and door bells.
All transaction data is retained even when power is lost. The controller continues to operate normally even if the network connection is interrupted.
📊 Technical Specifications – eSSL inBio‑460
| Doors Controlled | 4 Doors |
|---|---|
| Readers Supported | 12 total – 8 RS‑485 (biometric) + 4 Wiegand (26‑bit) |
| Card / Fingerprint Capacity | 30,000 cardholders / 3,000 fingerprint templates (expandable options available) |
| Transaction Logs | 100,000 events (full audit trail) |
| Communication | TCP/IP (Ethernet) + RS‑485 (industrial bus) |
| CPU / Memory | 32‑bit 400 MHz CPU, 32 MB RAM, 128 MB Flash |
| Inputs / Outputs | 12 inputs (4 exit, 4 door status, 4 AUX) / 8 outputs (4 lock relays + 4 auxiliary relays) |
| Power Supply | 9.6 V – 14.4 V DC, 12V +5A for controller (max 1A for Wiegand ports) |
| Dimensions (bundle) | 350(L) × 90(H) × 300(W) mm, weight ~3.6 kg |
| Operating Temp / Humidity | 0 °C to 45 °C / 20 % to 80 % (non‑condensing) |
| Software | Biosecurity 3.1 (web, PostgreSQL / MS SQL) | Access Security System 3.5 (desktop, MS Access / MS SQL) |
| Certifications / Compliance | CE, FCC, RoHS |
💻 Centralised Management & Integration
Centralised identity management and access control over LAN/WAN. Manage users, access levels, time zones and doors from any browser. Databases: PostgreSQL or MS SQL.
Rich desktop client with door‑wise reports, real‑time event monitoring and full access level programming. Works with MS Access or MS SQL.
Our technical team assists with exporting attendance logs to Spine, GreytHR, HROne, Zoho CRM, Candle, Saral and Oracle. For custom integrations a free SDK is available.
🏢 Where to Deploy the inBio‑460 – Enterprise Identity Management and Access Control
- 🔒 Corporate Offices & IT Parks – control entry to server rooms, executive floors and perimeter doors.
- 🏭 Industrial & Manufacturing Facilities – enforce attendance and restrict access to hazardous areas.
- 🧪 Research Labs / Pharma / Data Centres – multi‑card opening and duress alarms for high‑security zones.
- 🏛️ Government Buildings & Campuses – centralise identity management and access control across multiple doors.
- 🏫 Universities & Large Schools – libraries, exam halls, faculty offices and gymnasiums.
🔌 Scalable Architecture – Mix & Match inBio Models
A key advantage of the inBio series is the ability to mix 1‑door, 2‑door and 4‑door controllers in the same system. You can start with an inBio‑460 for your main entrance, add an inBio‑260 for the south wing, and finish with inBio‑160 for isolated offices – all managed from the same software, preserving your investment.
❓ Frequently Asked Questions – Identity Management and Access Control
📈 Seamless HRMS, Payroll and ERP Integration
eSSL Pune has deep experience integrating the inBio‑460 with leading business platforms. Whether you need to send attendance logs to Spine, GreytHR, HROne, Zoho CRM, Candle, Saral or Oracle, our team can configure the data export (CSV, Excel, API) to match your workflow. We also provide installation and integration support for mixed‑model eSSL systems.
