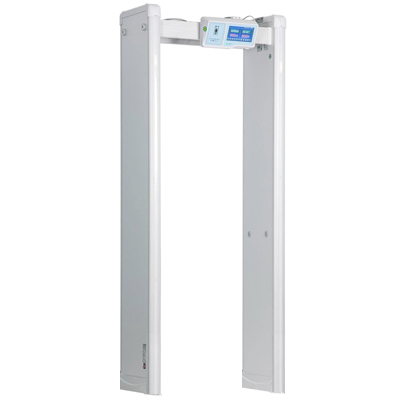

eSSL D4006 Metal Detector Gate – 6‑Zone Walk‑Through Security Screening
The eSSL D4006 metal detector gate combines 6 detection zones, a 255‑level sensitivity range, and a 7‑inch LCD touchscreen for fast, accurate security screening. With automatic pass/ alarm counters, an IP54‑rated enclosure, and electromagnetic detection technology, it’s the ideal choice for airports, malls, corporate lobbies, government buildings and industrial sites.
The eSSL D4006 metal detector gate is a professional walk‑through security detector designed for high‑traffic entry points. Its six detection zones, powered by pulse induction technology, provide precise location information while a 255‑level sensitivity range allows fine‑tuning for different threat levels. The integrated 7‑inch color touchscreen displays real‑time pass counts, alarm records, system menus, and an on‑screen virtual keypad for configuration. Together, these features deliver a fast, reliable, and highly user‑friendly security screening solution for a wide variety of public and private facilities.
🔑 Key Features – eSSL D4006 Metal Detector Gate
✅ 6 Independent Detection Zones
Each zone has a dedicated LED light strip that illuminates specifically when metal is detected, providing instant visual feedback on the approximate height of the concealed object and enabling faster secondary searching.
Each zone has a dedicated LED light strip that illuminates specifically when metal is detected, providing instant visual feedback on the approximate height of the concealed object and enabling faster secondary searching.
✅ 255‑Level Sensitivity per Zone
The sensitivity of every zone can be adjusted independently (from 0 to 255), allowing precise calibration for the detection of different metal objects while avoiding false alarms from small items such as coins, keys or belt buckles.
The sensitivity of every zone can be adjusted independently (from 0 to 255), allowing precise calibration for the detection of different metal objects while avoiding false alarms from small items such as coins, keys or belt buckles.
✅ 7‑inch LCD Touchscreen
The large, high‑brightness touchscreen displays the current pass count, alarm count, live system status, and an on‑screen keypad for the operator. The graphical interface makes navigation intuitive and simplifies setup.
The large, high‑brightness touchscreen displays the current pass count, alarm count, live system status, and an on‑screen keypad for the operator. The graphical interface makes navigation intuitive and simplifies setup.
✅ Separate Pass & Alarm Counters
Infrared sensors automatically count every person who walks through the gate and separately log every triggered alarm. This provides valuable data for security staff and supervisors who need to track screening activity.
Infrared sensors automatically count every person who walks through the gate and separately log every triggered alarm. This provides valuable data for security staff and supervisors who need to track screening activity.
✅ IP54 Weather‑Resistant Enclosure
Rated IP54 for dust and water protection, the D4006 can be used in a variety of environments, including sheltered outdoor locations, and resists the ingress of dust and water splashes.
Rated IP54 for dust and water protection, the D4006 can be used in a variety of environments, including sheltered outdoor locations, and resists the ingress of dust and water splashes.
✅ 0‑100 Adjustable Working Frequency
The multi‑frequency operation reduces electrical interference when multiple metal detectors are installed side‑by‑side, ensuring that each unit operates reliably and without cross‑talk.
The multi‑frequency operation reduces electrical interference when multiple metal detectors are installed side‑by‑side, ensuring that each unit operates reliably and without cross‑talk.
📊 Technical Specifications – eSSL D4006 Walk‑Through Metal Detector
| Detection Technology | Electromagnetic pulse induction |
|---|---|
| Detection Zones | 6 multi‑zone detection with LED location indicators |
| Passage Dimensions (H × W × D) | 2000 mm × 720 mm × 430 mm (width customisable 720 mm – 1500 mm) |
| External Dimensions (H × W × D) | 2200 mm × 850 mm × 430 mm |
| Net Weight | 43 kg |
| Gross Weight | 48 kg |
| Display | 7‑inch capacitive LCD touchscreen |
| Ingress Protection (IP) Rating | IP54 (dust‑protected, resistant to water splashes) |
| Working Humidity | ≤ 99 % (non‑condensing) |
| Working Temperature | -20 °C to +85 °C |
| Power Input | AC 100 V – 240 V, 50 Hz / 60 Hz |
| Power Output | DC 12 V, 4.2 A, 12 W |
| Sensitivity Adjustment | 0–255 per zone |
| Working Frequency Adjustment | 0–100 |
| Alarm Indicators | Audible sounder and multi‑zone LED location lights |
| Construction Material | High‑intensity ABS (Acrylonitrile Butadiene Styrene) raw material |
| Package Dimensions (L × W × H) | 2270 mm × 700 mm × 230 mm |
Data derived from eSSL Security technical documentation and official product specifications.
⚙️ How the eSSL D4006 Metal Detector Gate Works
🔎 Electromagnetic Field Generation
Coils embedded in the side panels create a low‑intensity pulsed magnetic field across the passage area. When a person walks through the gate, any metal object on their body disturbs this field.
Coils embedded in the side panels create a low‑intensity pulsed magnetic field across the passage area. When a person walks through the gate, any metal object on their body disturbs this field.
⚡ Signal Processing
The sensitive electronics analyse the disturbance in real time. The microprocessor compares the signal against the programmed sensitivity threshold (0–255) to confirm a threat.
The sensitive electronics analyse the disturbance in real time. The microprocessor compares the signal against the programmed sensitivity threshold (0–255) to confirm a threat.
🎯 Multi‑Zone Localization
Thanks to the six detection zones, the system knows exactly which vertical segment of the gate was disturbed. The corresponding LED strip lights up, telling the operator exactly where on the body the metal object is located.
Thanks to the six detection zones, the system knows exactly which vertical segment of the gate was disturbed. The corresponding LED strip lights up, telling the operator exactly where on the body the metal object is located.
📊 Automatic Counting
Internal infrared sensors count the number of persons passing through, while the alarm counter records every detection event, providing a complete audit trail of the security checkpoint’s activity.
Internal infrared sensors count the number of persons passing through, while the alarm counter records every detection event, providing a complete audit trail of the security checkpoint’s activity.
🏢 Where to Deploy the eSSL D4006 Metal Detector Gate
✈️ Airports & Metro Stations
Screen high volumes of passengers at security checkpoints for firearms, knives and other prohibited metallic objects.
Screen high volumes of passengers at security checkpoints for firearms, knives and other prohibited metallic objects.
🏢 Corporate Offices & IT Parks
Secure the main lobby, server rooms and high‑security floors by ensuring employees and visitors do not carry unauthorised metal items.
Secure the main lobby, server rooms and high‑security floors by ensuring employees and visitors do not carry unauthorised metal items.
🏛️ Government Buildings & Courts
Protect sensitive facilities by screening every person entering the premises, including employees, visitors and contractors.
Protect sensitive facilities by screening every person entering the premises, including employees, visitors and contractors.
🏫 Educational Institutions
Enhance campus safety at school and university entrances, reducing the risk of weapons or other dangerous objects being brought onto the campus.
Enhance campus safety at school and university entrances, reducing the risk of weapons or other dangerous objects being brought onto the campus.
🏨 Hotels & Hospitality Venues
Secure hotel lobbies, banquet halls, convention centres and executive meeting floors against potential security threats.
Secure hotel lobbies, banquet halls, convention centres and executive meeting floors against potential security threats.
🏭 Industrial & Manufacturing Facilities
Prevent the unauthorised removal of metal assets and reinforce compliance at factory gates and warehouse entrances.
Prevent the unauthorised removal of metal assets and reinforce compliance at factory gates and warehouse entrances.
🌟 Why Choose eSSL Pune as Your Metal Detector Gate Partner?
Genuine eSSL Hardware
We supply factory‑fresh D4006 metal detectors with a full manufacturer warranty and complete compliance with eSSL security standards.
We supply factory‑fresh D4006 metal detectors with a full manufacturer warranty and complete compliance with eSSL security standards.
Expert Installation & Support
Our Pune‑based engineers handle site surveys, assembly, calibration and integration with existing security systems.
Our Pune‑based engineers handle site surveys, assembly, calibration and integration with existing security systems.
Seamless Integration
Connect the metal detector to turnstiles, boom barriers, CCTV and access control systems for a complete security ecosystem.
Connect the metal detector to turnstiles, boom barriers, CCTV and access control systems for a complete security ecosystem.
Competitive Pricing & AMC Options
Best‑in‑class rates for the eSSL D4006, plus optional annual maintenance contracts for ongoing support.
Best‑in‑class rates for the eSSL D4006, plus optional annual maintenance contracts for ongoing support.
🔌 Seamless Integration with ERP, HRMS & Security Systems
The eSSL D4006 metal detector gate can be integrated with a wide range of business and security systems, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral and Oracle. Our experts can help you configure event logging, visitor access records and audit trails directly into your existing ERP platform, unifying physical security with workforce management.
❓ Frequently Asked Questions – Metal Detector Gate
What is the eSSL D4006 metal detector gate?
The eSSL D4006 is a high‑sensitivity 6‑zone walk‑through metal detector. It uses electromagnetic induction technology and can be adjusted from 0–255 sensitivity. The system automatically counts both the number of persons passing through and the number of alarms triggered.
How many detection zones does the D4006 have?
The eSSL D4006 is a 6‑zone metal detector, meaning it divides the detection area into six independent vertical zones. When an alarm occurs, the bright LED light on the corresponding zone instantly indicates the approximate height of the detected metal object, allowing security staff to carry out a more focused secondary check.
What is the IP rating of the D4006 metal detector gate?
The D4006 features an IP54 ingress protection rating. Its ABS housing is dust‑protected and resistant to water splashes, making the detector suitable for both indoor and sheltered outdoor applications.
What is the typical throughput of the D4006?
Like other professional walk‑through detectors, the D4006 can screen 30 to 60 persons per minute, depending on the sensitivity setting and the flow of foot traffic.
Can the D4006 be integrated with other security systems?
Yes. The metal detector can be integrated with turnstiles, flap barriers, CCTV cameras and ERP platforms such as Spine, GreytHR, HROne, Zoho, Candle, Saral and Oracle.
