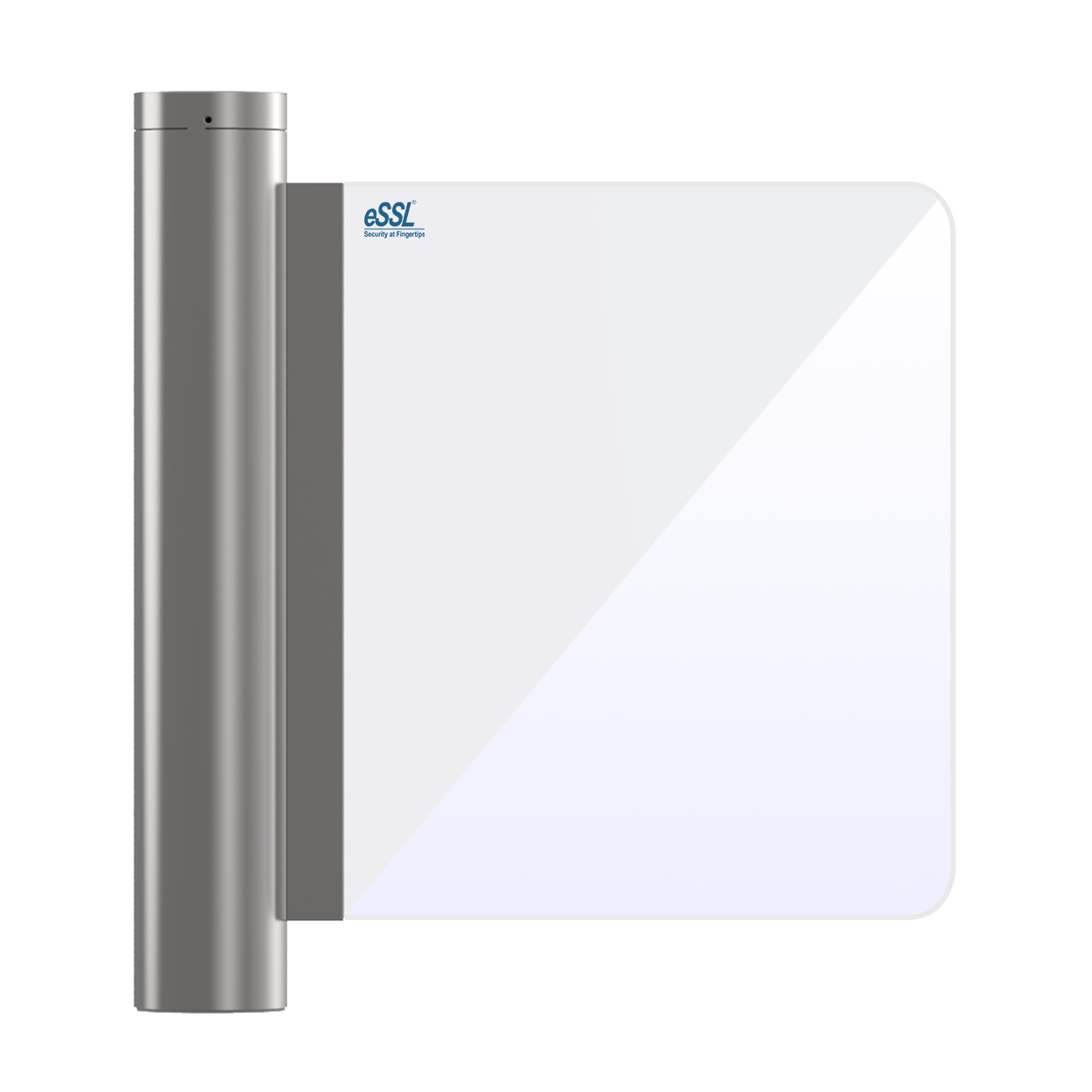

eSSL SB‑E315 – High‑Speed Automatic Swing Barrier Gate
The eSSL SB‑E315 swing barrier gate combines sleek design with robust engineering to deliver high‑speed pedestrian access control for corporate campuses, commercial complexes, metro stations, airports and industrial facilities. Its 304 stainless steel cabinet, 10mm clear acrylic swing arms, 200W servo motor drive and integrated anti‑tailgating features ensure both security and efficiency in high‑traffic environments.
The eSSL SB‑E315 is a servo‑motor‑driven swing barrier gate built for high‑frequency pedestrian throughput. Designed for secure entry points where controlled access is critical, it delivers smooth, near‑silent operation with adjustable speed and fail‑safe mechanisms. The cabinet is manufactured from 304 Stainless Steel with a round tube thickness of 2.2mm, and the swing arms are crafted from 10mm transparent acrylic, providing an elegant complement to any modern building lobby. The barrier integrates seamlessly with standard access control systems – from RFID card readers to advanced biometric solutions – and includes infrared anti‑clip and anti‑tailgating functions as standard.
🔑 Key Features – eSSL SB‑E315 Swing Barrier Gate
The cabinet is crafted from high‑grade 304 stainless steel with a round tube thickness of 2.2mm, offering superior corrosion resistance and long‑term durability for high‑traffic installations.
The elegantly designed swing arms are manufactured from 10mm clear acrylic, combining impact strength with an aesthetic that complements modern building interiors.
The heart of the swing barrier is a high‑performance 200W servo motor, ensuring fast, precise arm movement with adjustable speed profiles and low maintenance requirements.
The standard passage width of 600mm can be optionally increased to 900mm, accommodating ADA‑compliant installations and wheelchair access.
With a throughput rate of 15–25 persons per minute, the SB‑E315 efficiently handles peak‑hour traffic while maintaining high security.
Built‑in logic prevents unauthorised following and reverse passage, ensuring that each valid authentication grants access to only one person.
Multiple infrared sensor pairs detect obstacles instantly, preventing the swing arms from closing on people or objects and ensuring user safety.
In the event of a power cut or fire alarm, the gate automatically swings open to provide an unimpeded evacuation path (fire‑fighting passage mode).
📊 Technical Specifications – eSSL SB‑E315 Swing Barrier Gate
| Product Model | eSSL SB‑E315 |
|---|---|
| Product Size (L × W × H) | 168mm × 168mm × 1000mm |
| Passage Width | 600mm (standard); 900mm (optional) |
| Cabinet Material | Stainless Steel 304 Grade, round tube thickness δ=2.2mm |
| Bar (Arm) Material | Transparent Acrylic, thickness δ=10mm |
| Movement / Drive Unit | 200W servo motor |
| Control Unit | Servo control system |
| Power Supply | 24V 500W |
| Power Consumption | 50W |
| Throughput Rate (pass rate) | 15‑25 persons/minute |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | ≤ 90% (non‑condensing) |
| Ingress Protection (IP) Rating | IP54 (dust‑protected, splash‑resistant) |
| Environment | Indoor and outdoor (direct outdoor with canopy) |
Derived from eSSL Security technical documentation and official product data.
⚙️ Advanced Security & Integration Capabilities
Operators can choose “with memory” or “without memory” modes, defining whether the gate holds the passage open for the next user after valid authentication.
If a user does not pass within a preset time after authentication, the gate automatically restores to the locked state, preventing unauthorised “piggyback” attempts.
The swing barrier can be configured for two‑way card reading, single‑way entry with automatic exit, or strict one‑way operation depending on site requirements.
Standard dry contact outputs enable direct connection to access control panels, relay modules, and third‑party automation systems without additional converters.
🏢 Where to Deploy the eSSL SB‑E315 Swing Barrier Gate
Secure employee and visitor access at main lobbies, cafeteria zones and high‑security floors. Integrates with biometric readers and RFID card systems.
Provide elegant yet secure access for hotel staff entry, fitness centres, rooftop pools and executive lounges without compromising aesthetic appeal.
High‑speed throughput makes the SB‑E315 ideal for passenger boarding gates, staff entrances, and security checkpoints in transportation hubs.
Enhance perimeter security with anti‑tailgating and anti‑reverse pass enforcement in high‑security controlled areas, seamlessly integrated with access control systems.
Manage student and staff access to libraries, labs, sports facilities and restricted zones while maintaining high throughput during peak hours.
Enforce attendance‑based access at factory gates, tool cribs, and cleanroom entrances with a barrier that withstands harsh industrial environments.
🌟 Why Choose eSSL Pune as Your Swing Barrier Gate Partner?
We supply factory‑fresh SB‑E315 swing barrier gates with full manufacturer warranty and compliance with eSSL security standards – no grey market or counterfeit products.
Our Pune‑based engineers handle site surveys, foundation planning, electrical wiring, and seamless integration with your existing access control ecosystem.
Integrate the swing barrier with turnstiles, flap barriers, face recognition devices, RFID readers and boom barriers. Interconnect with third‑party and ERP systems for unified security.
Best‑in‑class rates for the eSSL SB‑E315, plus optional annual maintenance contracts for calibration, sensor testing and 24×7 technical assistance.
🔌 Seamless ERP, HRMS & Access Control Integration
The eSSL SB‑E315 swing barrier gate can be fully integrated with a wide range of business and security systems, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle. Our experts can help you configure event logging, visitor access records, and audit trails directly into your existing ERP platform, unifying physical security with workforce management and access control.
