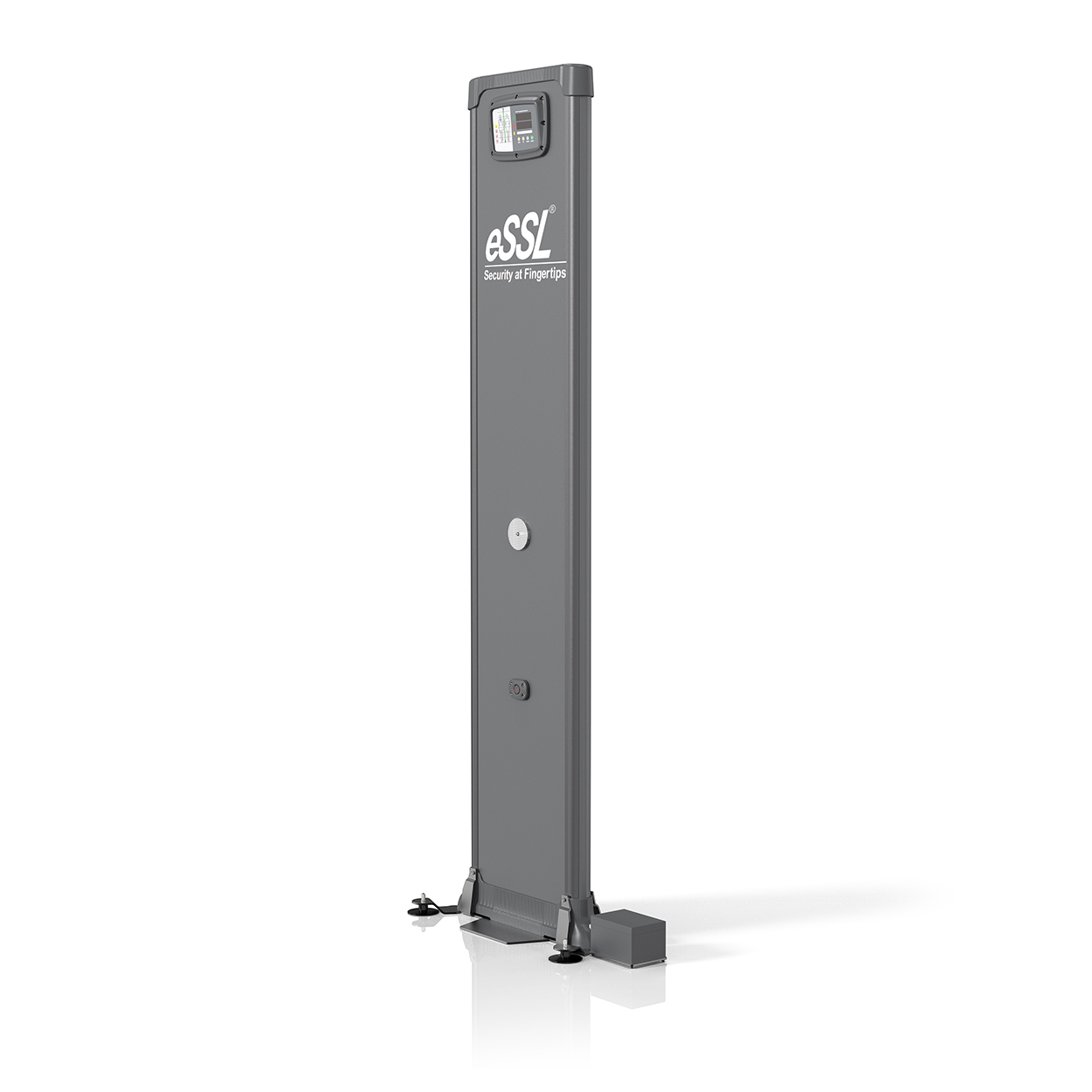

eSSL D468-6 – Single Door Metal Detector for Basic Security Screening
The eSSL D468-6 single door metal detector is a reliable, cost‑effective walk‑through DFMD designed for basic security screening in low to medium‑threat environments. With electromagnetic pulse‑induction technology, 0–400 adjustable sensitivity, 15 selectable alarm tones, and integrated pass/ alarm counters, the D468‑6 delivers cost‑effective screening for schools, offices, factories, retail stores, and public buildings.
The eSSL D468‑6 door frame metal detector (DFMD) is the entry‑level model in eSSL’s D468 series, offering a single‑zone detection configuration. It uses pulse‑induction technology to create an electromagnetic field across the passage area; any metallic object large enough to meet the sensitivity threshold will disturb the field, triggering an audible alarm and a visual signal on the side‑panel LED indicator [0†L5-L8][6†L26-L32]. The D468‑6 is built with an IP54‑rated ABS housing, making it suitable for both indoor and sheltered outdoor installations, and its ability to track both pass and alarm counts provides security supervisors with real‑time checkpoint statistics.
This single door metal detector is perfect for locations where basic entry‑level security screening is acceptable and budget is a primary concern. It retains core security functions – adjustable sensitivity, 15 alarm tones, volume control, and optional entrance automation integration – while keeping the total cost of ownership low.
🔑 Key Features – eSSL D468-6 Single Zone Walk Through Detector
The D468‑6 scans the entire height of the passage as a single zone. A bright LED light on the side panel illuminates when any metal is detected, providing a simple, effective alert for security personnel [5†L3-L8].
Fine‑tune the sensitivity from 0 to 400 to reduce false alarms from small items such as keys, coins, or belt buckles while maintaining detection reliability [5†L15-L16].
Choose among 15 different audible alerts with user‑adjustable volume (0–50) and alarm duration (0–3 seconds), customising the detector for any environment [5†L13-L14].
Built‑in infrared sensors automatically count the number of persons walked through the gate while separately recording triggered alarms, providing valuable security management data [5†L20-L21].
The large LED display provides clear, immediate readouts of sensitivity settings, alarm counts, and system status, ensuring operators always have critical information at a glance [5†L20-L21].
Rated IP54, the detector is dust‑protected and resistant to water splashes, making it suitable for both indoor and sheltered outdoor installations [5†L15-L16].
Integrate with turnstiles, flap barriers, swing barriers, and boom barriers via an optional IoT controller, physically blocking persons carrying prohibited items from entering [5†L21-L23].
Reliably performs in temperatures from -20°C to +65°C, making it suitable for a wide range of environments and weather conditions [5†L12-L13].
📊 Technical Specifications – eSSL D468-6 Single Door Metal Detector
| Product Model | eSSL D468-6 |
|---|---|
| Detection Technology | Electromagnetic pulse induction |
| Detection Zones | Single zone (full‑height coverage) |
| External Dimensions (H × W × D) | 2203 mm × 580 mm × 117 mm |
| Net Weight / Gross Weight | 19 kg / 24 kg |
| Ingress Protection (IP) Rating | IP54 (dust‑protected, splash‑resistant) |
| Working Humidity | ≤ 99 % RH (non‑condensing) |
| Operating Temperature Range | -20 °C to +65 °C |
| Power Supply | AC 100 V – 240 V, 50 Hz / 60 Hz | Power Consumption | 35 W |
| Sensitivity Adjustment | 0–400 (single zone) |
| Operating Frequency Range | 0–99 (adjustable, multi‑frequency operation) |
| Alarm Volume / Duration | 0–50 / 0–3 seconds (user‑adjustable) |
| Alarm Tones | 15 different selectable tones | Minimum Detectable Metal | Ferrous metals < 75 g; |
| Detection Precision (min dims) | Thickness 2 mm, length 50 mm, width 20 mm |
| Materials | High‑strength ABS (Acrylonitrile Butadiene Styrene) |
| Product Colour | Matte Black |
Specifications derived from eSSL Security technical documentation and official product data.
⚙️ How the eSSL D468-6 Single Zone Metal Detector Works
The embedded coils in the side panels create a low‑intensity pulsed magnetic field that fills the entire passage area. Any metal object disturbs this field, triggering an immediate response [6†L26-L32].
A high‑speed microprocessor analyses the disturbance against the programmed sensitivity threshold (0–400). By adjusting the sensitivity, operators can minimise false alarms from harmless items like keys, coins, or belt buckles while maintaining detection reliability for genuine threats.
When a metal object is detected, the system activates a sharp audible tone and simultaneously illuminates the single‑zone LED, providing immediate feedback to the operator and security personnel [5†L20-L21].
Infrared sensors count the number of persons walked through the gate, while a separate counter logs every alarm event. This complete audit trail helps management monitor checkpoint efficiency, allocate resources, and maintain security compliance [5†L20-L21].
🏢 Where to Deploy the eSSL D468-6 Single Door Metal Detector
Provide basic security screening at school entrances. The single‑zone operation and adjustable sensitivity keep false alarms low while maintaining a discreet, welcoming environment.
Secure office lobbies and visitor entry points with a cost‑effective DFMD that integrates easily with existing security systems.
Low‑cost screening for low‑security perimeter checkpoints, contractor areas, and employee entrances.
Prevent unauthorised removal of metal assets and enforce compliance at factory gates and warehouse entrances.
Basic screening for back‑of‑house staff entrances and service areas without impacting guest flow.
Entry‑level security for staff entrances, stock rooms, and loading bays.
🌟 Why Choose eSSL Pune as Your Single Door Metal Detector Partner?
We supply factory‑fresh D468-6 detectors with full manufacturer warranty and compliance with eSSL security standards – no grey market or counterfeit products.
Our Pune‑based engineers handle site surveys, assembly, calibration, and integration with existing security systems, ensuring your metal detector is operational from day one.
Connect the D468-6 to turnstiles, flap barriers, swing barriers, boom barriers, and CCTV for a complete security ecosystem. An optional IoT controller can physically block unauthorised passage [5†L21-L23].
Best‑in‑class rates for the eSSL D468-6, plus optional annual maintenance contracts for ongoing support, calibration checks, and firmware updates.
🔌 Seamless ERP, HRMS & Security System Integration
The eSSL D468-6 single door metal detector can be integrated with a wide range of business and security systems, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle. Our experts can help you configure event logging, visitor access records, and audit trails directly into your existing ERP platform, unifying physical security with workforce management and access control.
