eSSL QR Code Reader | High-Speed Contactless Access Control & Attendance

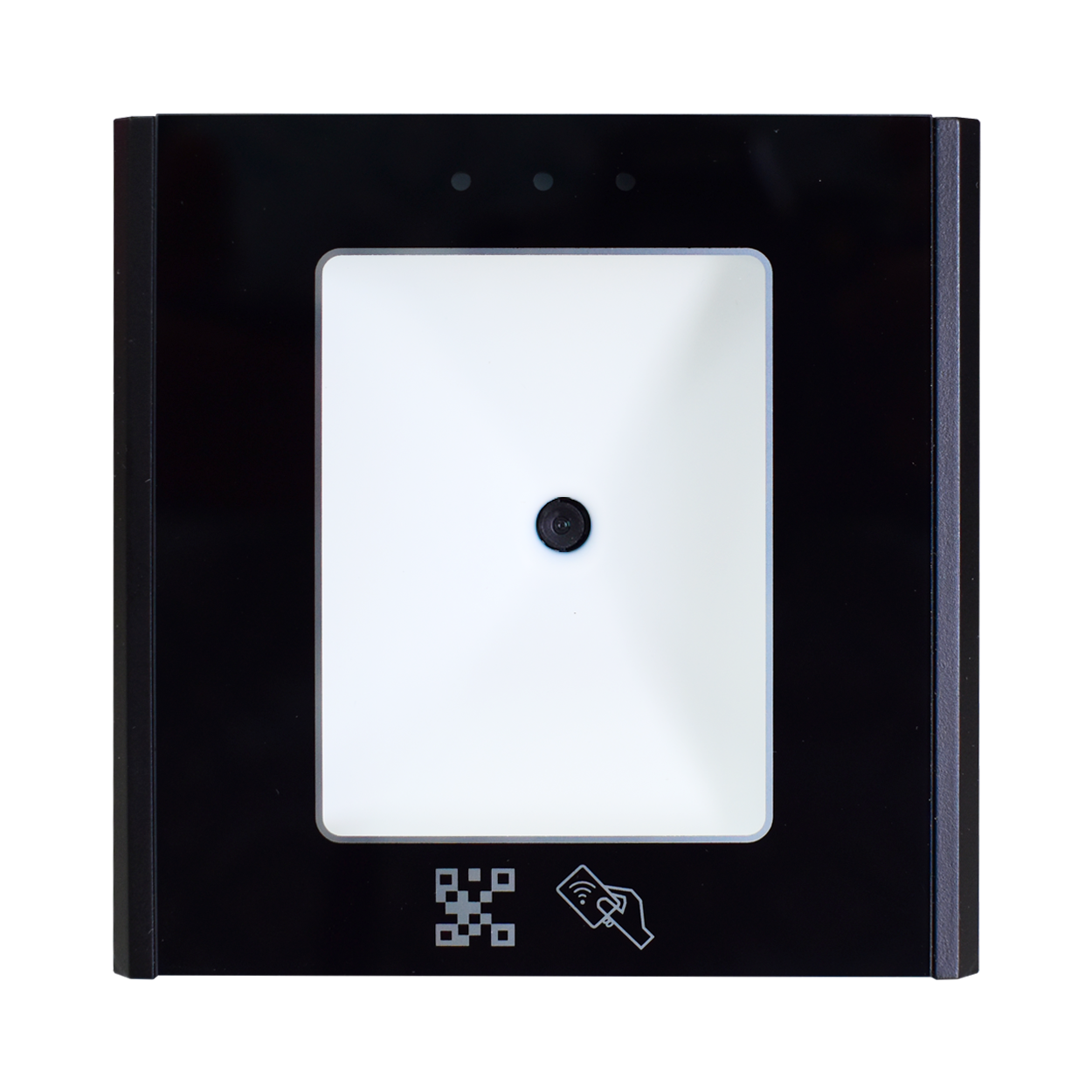

Welcome to the future of contactless identification. The eSSL FQR-80 QR Code and Barcode Reader is a versatile, high-performance terminal designed to streamline access control and employee attendance tracking for modern businesses.
By supporting both 1D barcodes and 2D QR codes, this single device offers unprecedented flexibility. It can serve as a reader for employee RFID cards, a scanner for visitor QR codes, an attendance terminal for time tracking, or even a ticket validator for events or facilities.
Key Features of the eSSL QR Reader
Dual Credential Support
Integrates QR, Barcode, and Proximity RFID (125 kHz) reading capabilities into one unit. Great for hybrid employee/visitor environments.
High-Speed Scanning
Rapid reading speed of less than 200 milliseconds ensures minimal queuing and a smooth user experience even during peak hours.
Standard Wiegand Output
Supports Wiegand 26 and 34-bit protocols, ensuring seamless compatibility with most existing access control panels, controllers, and time-attendance systems.
Network Ready (Optional)
An optional Ethernet TCP/IP port allows direct IP-based communication, ideal for network-centric installations and management.
Weather-Resistant Design
With an IP54 rating and durable PC housing and tempered glass front, the FQR-80 is built to last, offering reliable performance in sheltered outdoor locations.
Enhanced Developer Support
Comes with a Software Development Kit (SDK) for creating custom solutions and enabling advanced integrations.
Technical Specifications (eSSL FQR-80)
| Product Model | eSSL FQR-80 |
|---|---|
| Reading Capabilities |
1D / Barcode: Supported 2D / QR Code: Supported RFID Tag Support: Proximity (125 kHz), reading range 3-6 cm |
| Reading Speed | < 200 ms |
| QR Reading Range | 0 to 20 cm |
| Reading Angle | Camera slant 45° |
| Reading Feature | Auto-induction, Beep sound on successful read |
| Communication Interfaces | Wiegand 26/34 (Standard), Ethernet TCP/IP (Optional), HTTP Output (Optional) |
| Environmental Rating | IP54 (Dust-protected and splash-resistant) |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | 10% to 90% (Non-condensing) |
| Power Supply | 4-15 VDC |
| Power Rating | 0.95A @ 12VDC |
| Material | PC (Polycarbonate) Case & Tempered Glass |
| Additional Support | SDK (Software Development Kit) available for custom integrations |
Versatile Applications: Where to Use the QR Reader
Corporate & Office Access
Employees use their RFID cards while temporary visitors, contractors, or interview candidates are issued time-sensitive QR codes. Manage it all with a single reader, reducing hardware duplication.
Visitor Management Systems
Issue a QR code to a visitor via email. On arrival, a simple scan at the turnstile logs them in, opens the door, and notifies their host. This enables a truly contactless, paperless visitor workflow.
Contactless Attendance
Employees use the reader to scan their personal QR code via a mobile app, a printed badge, or even a wristband to instantly mark attendance. This virtually eliminates buddy punching and speeds up entry.
Event & Venue Ticketing
Perfect for gyms, stadiums, or event spaces. Scan mobile or printed tickets with QR codes for fast, accurate validation. The reader can be integrated directly with your event management system.
Co-working Spaces
Manage dozens or hundreds of members, day-pass guests, and event attendees flexibly. QR keys can be distributed instantly and revoked just as fast.
Industrial & Manufacturing
With an IP54 rating and a wide operating temperature range, the reader is robust enough for warehouse floor duty cycles, accepting employee card swipes at shift changes.
Why Choose eSSL Pune for Your QR Code Solution?
- Comprehensive Solutions: Leverage our strong IoT platform to combine QR readers with biometrics, access controllers, turnstiles and People Counting sensors to build a holistic security ecosystem.
- Seamless Integration: Our QR readers integrate effortlessly with ERP systems, HRMS platforms like Spine, GreytHR, and HROne, and payroll software like Candle, Saral, and Oracle.
- OEM Partnership & Support: Being an OEM partner of eSSL, we provide genuine products, on-site installation, business-hour support and a Pan India team for end-to-end assistance.
- Cost-Effective & Future-Ready: Reduce your hardware footprint by eliminating separate RFID and QR readers. Our FQR-80 handles both, saving on cabling, maintenance, and installation complexity.
Key Benefits of a QR Code Access Control System
🔹 Hygiene & Safety: Touch-free scanning promotes a healthier workplace, especially critical for controlling the spread of germs.
🔹 Temporary Credentials: Issue unlimited time-limited QR codes via email. Credentials are automatically revoked after expiration, no need to collect old cards.
🔹 Low Infrastructure Cost: Employees use their smartphones as access keys, drastically reducing the cost of issuing, replacing, and managing physical cards.
🔹 High Security: Dynamic QR codes are one-time-use or time-limited, rendering screenshots or photos of the code useless and making replay attacks impossible.
Frequently Asked Questions (FAQ)
What types of barcodes does the eSSL QR reader support?
The eSSL FQR-80 reader supports both QR codes and standard barcodes. This versatility allows you to use it for a wide range of applications, from modern QR-based access to traditional barcode-based ticketing systems.
Can the QR reader be integrated with existing access control panels?
Yes. The reader supports standard Wiegand 26 or 34 bit output, making it compatible with virtually any existing access control panel, controller, or attendance system on the market.
Does it support network connectivity?
Yes, an optional Ethernet TCP/IP module is available. This, along with the optional HTTP output feature, allows for direct integration into IP-based systems without a traditional controller, simplifying certain deployments.
Is the reader suitable for outdoor use?
Yes. The eSSL FQR-80 is built with a durable polycarbonate (PC) housing and a tempered glass surface. It has an IP54 environmental rating, meaning it is protected against dust and splashing water, making it suitable for sheltered outdoor locations.
Does the QR reader have RFID capabilities?
Yes. In addition to QR and barcode reading, the FQR-80 features built-in proximity RFID support. It can read standard 125 kHz proximity cards or fobs within a range of 3-6 cm, providing a fallback option for employees with existing cards.
What is the expected reading speed of the QR reader?
The eSSL QR reader is designed for speed. It boasts a reading speed of less than 200 milliseconds, ensuring a fast and smooth experience, even during peak traffic hours.
Does the reader offer developer support for custom integrations?
Yes, eSSL provides a Software Development Kit (SDK) for the FQR-80. This enables developers to build custom software solutions for specific applications or to integrate the reader deeply into a proprietary system.
Ready to Modernise Your Access Control?
Contact eSSL Pune today for a personalized demo, site survey, or a custom quote for the QR reader solution tailored to your needs.
For integration support with Spine, GreytHR, HROne, Zoho, Candle, Saral, or Oracle, contact our technical team.
