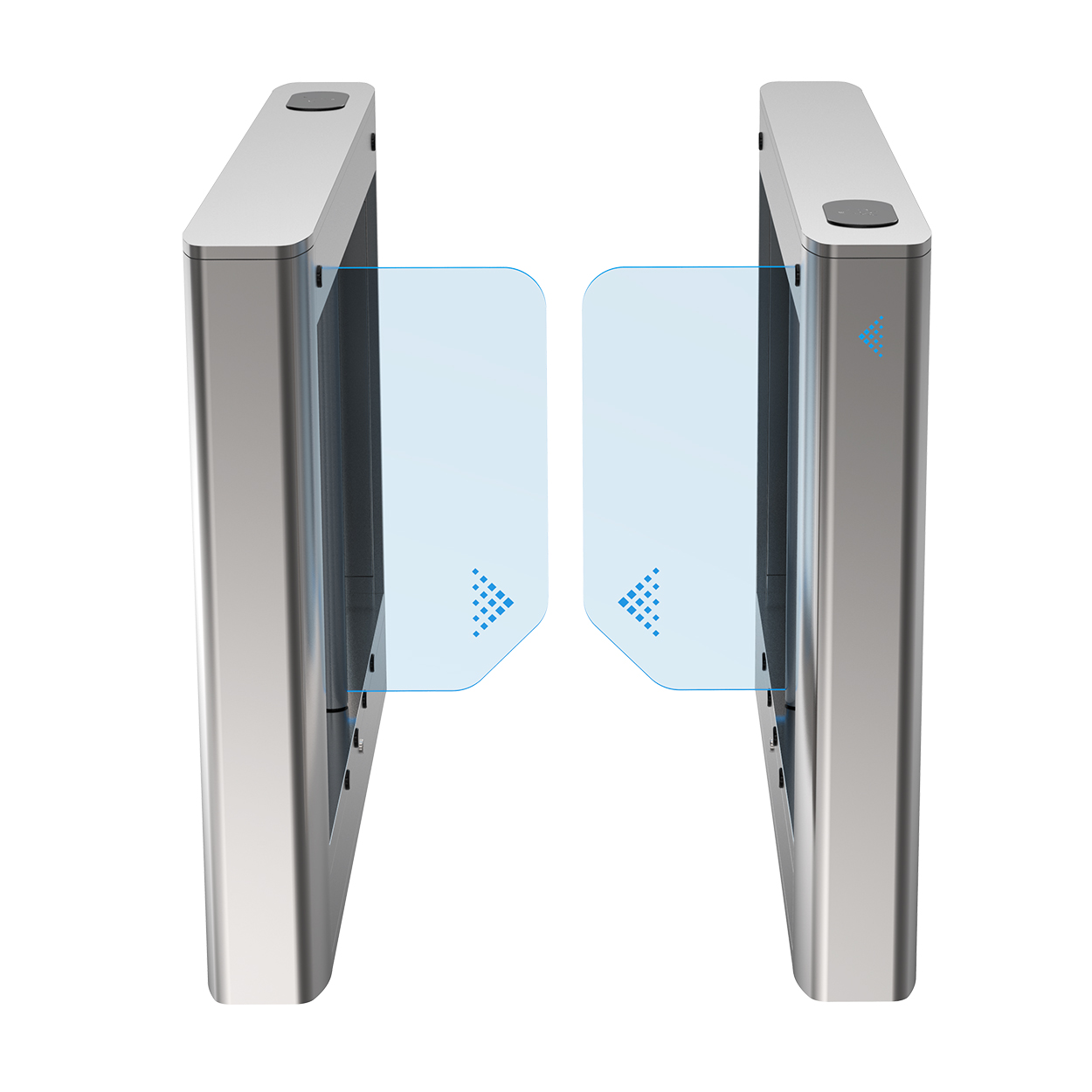

eSSL SB‑ES‑3216 – Single Lane Swing Barrier
The eSSL SB‑ES‑3216 Single Lane Swing Barrier is a high‑speed pedestrian access control gate designed for corporate lobbies, transit hubs, commercial complexes, and government facilities. Its brushed 304 stainless steel body, 8mm acrylic swing arms, and 6‑pair sensor array deliver an optimal balance of reliability, security, and aesthetic appeal.
The eSSL SB‑ES‑3216 is a state‑of‑the‑art single lane swing barrier engineered for smooth, quiet, and fast operation. Built with a 304 grade stainless steel cabinet (1.2mm top cover, 0.9mm body) and 8mm clear acrylic wings, it provides a modern, minimalist appearance while withstanding the demands of high‑traffic environments. The brushless DC motor (Fengdun 90K, 30W) delivers adjustable opening/closing speeds from 0.5s to 1.5s, achieving a pass rate up to 50 persons/min when normally open, or 35 persons/min in standard closed mode. Integrated safety features including anti‑tailgating, anti‑reverse pass, infrared anti‑clip, and automatic fire‑fighter opening on power failure ensure both robust physical security and safe pedestrian egress.
🔑 Key Features – SB‑ES‑3216 Swing Barrier
Top cover 1.2mm, body 0.9mm, 304 brushed plate ensures long‑term corrosion resistance and durability.
Aesthetically pleasing, high‑impact, 8mm‑thick transparent acrylic wings with optional 10mm baffle material.
Configurable to standard 600mm or wide 900mm passageway for wheelchair accessibility.
30W, 90K series motor offering quiet, maintenance‑free operation with an adjustable opening/closing speed of 0.5–1.5 seconds.
Dense IR array for precise detection, anti‑clip, anti‑tailgating, and anti‑reverse passage logic.
Open mode: 50 persons/min; closed mode: 35 persons/min – ideal for peak traffic periods.
Visual status indicators for authorised passage, alert, and standby modes.
During power failure or fire alarm, the barrier automatically swings open to meet emergency evacuation requirements.
📊 Technical Specifications – eSSL SB‑ES‑3216
| Overall Dimensions (L×W×H) | 1400 mm × 160 mm × 980 mm |
|---|---|
| Passage Width | 600 mm (standard) / 900 mm (optional, with ADA compliance) |
| Fuselage (Cabinet) Material | Top cover 1.2mm, body 0.9mm 304 brushed stainless steel | Diaphragm (Arm) Material | 8 mm clear acrylic (Baffle material: 10 mm clear acrylic) |
| Movement / Drive Unit | Brushless swing brake integrated movement |
| Drive Motor | Fengdun DC brushless 90K 30W |
| Power Supply / Consumption | 24V 150W power supply; equipment consumption ≤55W |
| Input Voltage | AC100 V – 240 V, 50 Hz / 60 Hz |
| Reaction Time / Speed | Adjustable opening/closing from 0.5 s to 1.5 s |
| Pass Rate | Open mode: ≤50 persons/min; Normal closed: ≤35 persons/min |
| Sensor Configuration | 6 pairs of infrared sensors (anti‑tailgate, anti‑reverse, anti‑clip) |
| Communication Interface | Dry contact (simple relay‑based operation) |
| Control Components | 12V brushless simplified board + electric control box + mesh board box |
| Operating Temperature | -20 °C to +70 °C |
| Relative Humidity | ≤ 90 % (non‑condensing) |
| Noise Level | ≤ 65 dB |
| Protection Class | IP4X (enclosure sealed against objects ≥ 1 mm) |
⚙️ Operating Modes & Advanced Behaviours
Two‑way card reading (entry+exit), one‑way card reading with free exit, or one‑way with exit button – configurable to site policy.
Set to “with memory” (allows re‑entry after valid card while gate is open) or “without memory” (one card, one passage).
If user does not pass within the configured time after authentication, the gate automatically relocks.
Doors automatically open on power loss or external fire alarm signal, ensuring an unobstructed evacuation path.
🏢 Where to Deploy the eSSL SB‑ES‑3216 Swing Barrier
Secure main lobbies, executive zones and server rooms. Integrates seamlessly with biometric, face recognition, or RFID readers.
High‑speed throughput (≤50 persons/min) makes it ideal for busy passenger checkpoints and staff entry gates.
Visually elegant, quiet operation for staff entrances, back‑of‑house zones, and premium guest areas.
Anti‑tailgating and anti‑reverse pass logic enforce strict physical security perimeters.
Control access to libraries, research labs, sports centres and dormitory zones while maintaining high throughput during class changes.
Durable stainless construction withstands industrial environments; integrates with attendance and time‑tracking systems.
🔌 Seamless Integration with Access Control Systems
The SB‑ES‑3216 uses standard dry contact communication, making it compatible with virtually any access control panel, biometric reader (fingerprint, face recognition), RFID card reader, or third‑party attendance system. In combination with the eSSL AI Face series or Aiface Magnum terminals, the barrier locks/unlocks automatically upon authorised identification, while also logging timestamps for attendancing. The system can be further integrated with leading HR/ERP platforms:
- HRMS: Spine, GreytHR, HROne
- Payroll: Candle, Saral, Oracle
- CRM: Zoho, custom ERPs
