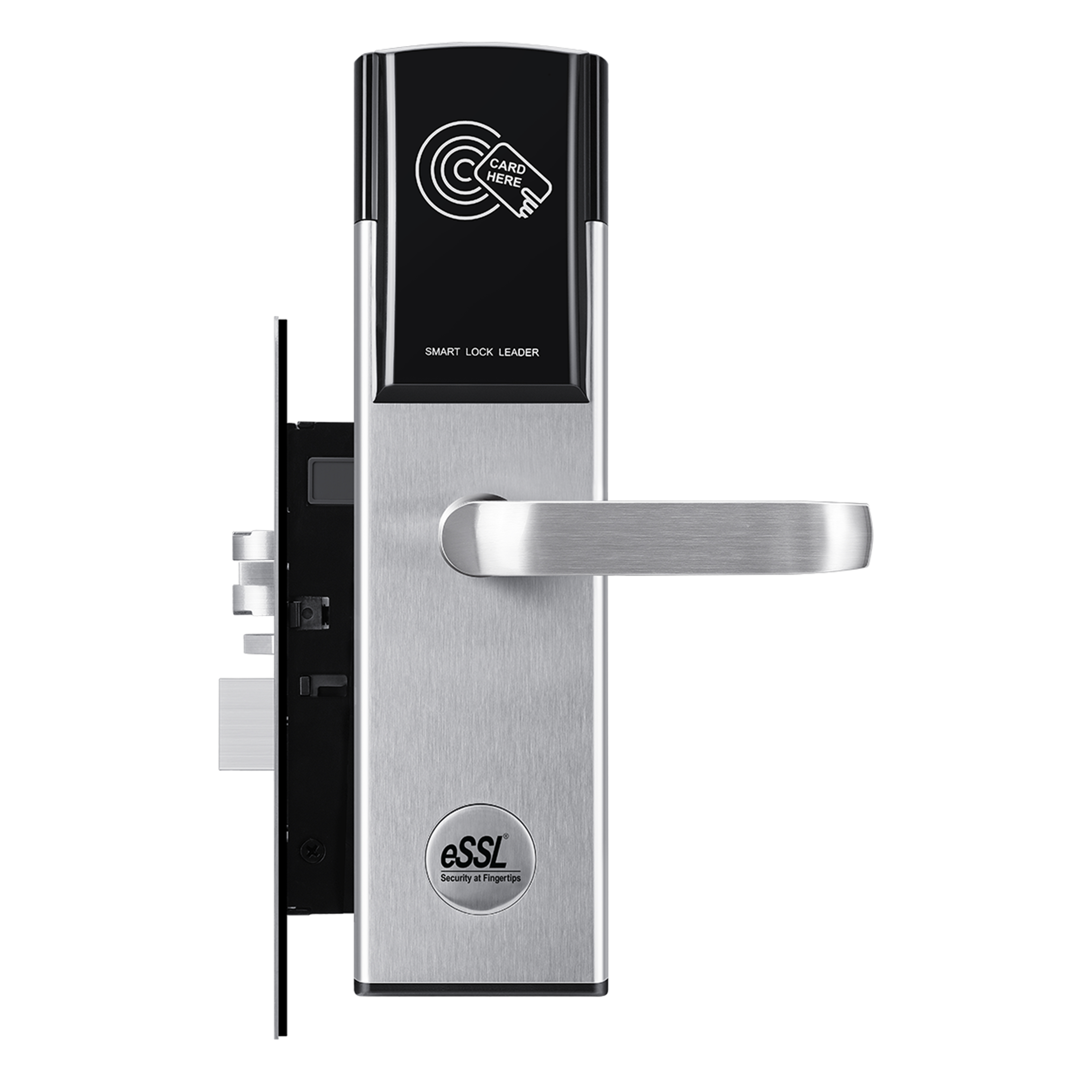

eSSL HL-200 RFID Hotel Room Lock – High-Security Electronic Lock for Hospitality
The eSSL HL-200 electronic hotel room lock combines robust security, sophisticated design, and intelligent card management. Powered by 13.56MHz MIFARE technology, it offers reliable, contactless access for guests while delivering full control to hotel managers through the BIS Hotel software platform. The lock features a 3-point stainless steel latch, panic release function, and a 414 events audit trail. It is also available in ANSI, AUS and EURO mortise versions to meet global installation standards.
📌 What is the eSSL HL-200 Hotel Room Lock?
The eSSL HL-200 is a standalone RFID electronic lock designed for modern hotel guest rooms. Using MIFARE 13.56MHz card technology (ISO 14443A), it enables guests to unlock their door simply by tapping their programmed key card. The lock is powered by 4 AA alkaline batteries, making installation extremely flexible – no complex wiring required. The HL-200 includes an emergency mechanical override cylinder, a panic release function (automatically retracts deadbolt and latch from inside handle), and a high-security stainless steel mortise lockcase available in ANSI, AUS, and EURO versions to accommodate different door standards. The full package (lock, encoder, MIFARE cards, and BIS Hotel software) provides hotel operators with a comprehensive, ready-to-deploy security solution.
With a 20mm throw deadbolt, 3-point stainless steel latch construction with anti‑friction mechanism, and a programmable FLASH RAM control board, the HL-200 delivers long-term reliability, operational safety (tested from -20°C to +66°C), and future-proof upgradeability.
📊 Technical Specifications – eSSL HL-200
| Product Model | eSSL HL-200 |
|---|---|
| Product Type | Standalone RFID Electronic Hotel Lock |
| RFID Technology | 13.56 MHz MIFARE (ISO 14443A MIFARE Classic) |
| Power Supply | 4 × AA alkaline batteries (1.5V) |
| Battery Location | Inside the back lock body |
| Material (Handles) | Zinc Alloy (lock body: SUS304 stainless steel) |
| Locking Mechanism | Electro-mechanical with micro electric motor |
| Mortise Versions | ANSI, AUS, EURO |
| Latch Construction | 3‑point stainless steel latch with anti‑friction mechanism |
| Deadbolt Throw | 20mm high strength deadbolt |
| Door Thickness Compatibility | 35mm – 65mm |
| Emergency Opening | Mechanical cylinder (emergency key) |
| Audit Trail Capacity | 414 events |
| Memory Type | Re‑programmable FLASH RAM |
| Panic Release | Automatically retracts deadbolt and latch from inside handle |
| Operating Temperature (Tested) | -20°C to +66°C |
| Storage Temperature | -40°C to +80°C (non‑condensing) |
| Software Compatibility | BIS Hotel (full card management & reporting) |
Specifications derived from eSSL Security technical documentation and official product data.
🔑 Key Features & Design Highlights of the HL-200 Hotel Lock
✅ Standalone RFID Lock – No Wiring Needed
Fully battery-powered design eliminates complex wiring. Install on any compatible wooden door and immediately start issuing MIFARE cards – perfect for retrofits and new builds.
Fully battery-powered design eliminates complex wiring. Install on any compatible wooden door and immediately start issuing MIFARE cards – perfect for retrofits and new builds.
✅ High‑Security Stainless Steel Mortise
Available in ANSI, AUS, and EURO versions, the lock’s mortise uses a 3‑point stainless steel latch with an anti‑friction mechanism for smooth, reliable operation.
Available in ANSI, AUS, and EURO versions, the lock’s mortise uses a 3‑point stainless steel latch with an anti‑friction mechanism for smooth, reliable operation.
✅ 20mm High‑Strength Deadbolt
Equipped with a 20mm throw deadbolt, providing enhanced resistance against forced entry and physical attacks.
Equipped with a 20mm throw deadbolt, providing enhanced resistance against forced entry and physical attacks.
✅ Panic Release Function
In an emergency, turning the inside handle automatically retracts both the deadbolt and latch, allowing guests to exit quickly without fumbling for a key or remembering complicated steps.
In an emergency, turning the inside handle automatically retracts both the deadbolt and latch, allowing guests to exit quickly without fumbling for a key or remembering complicated steps.
✅ 414 Events Audit Trail
Onboard memory stores up to 414 access events. Staff can retrieve logs to monitor room entries, track staff activity, and investigate security incidents.
Onboard memory stores up to 414 access events. Staff can retrieve logs to monitor room entries, track staff activity, and investigate security incidents.
✅ BIS Hotel Management Software
The BIS Hotel platform provides full card management (guest cards, master cards, housekeeping cards), check‑in/out automation, expiry control, and audit reporting – all from a centralized Windows PC.
The BIS Hotel platform provides full card management (guest cards, master cards, housekeeping cards), check‑in/out automation, expiry control, and audit reporting – all from a centralized Windows PC.
✅ Emergency Mechanical Override
A standard mechanical cylinder and emergency key serve as a failsafe, ensuring access during battery drain or electronic malfunction.
A standard mechanical cylinder and emergency key serve as a failsafe, ensuring access during battery drain or electronic malfunction.
✅ Future‑Proof Re‑programmable Memory
The lock uses FLASH RAM which can be re‑programmed, allowing hotels to update firmware or migrate to new card technologies without replacing hardware.
The lock uses FLASH RAM which can be re‑programmed, allowing hotels to update firmware or migrate to new card technologies without replacing hardware.
🔐 Complete Hotel Key Card Management System
The eSSL HL-200 is part of a complete hotel security ecosystem. The package includes:
📇 BIS Hotel Management Software
Centralised platform to manage guest check‑ins/outs, create master and housekeeping cards, set expiry times, and generate access reports.
Centralised platform to manage guest check‑ins/outs, create master and housekeeping cards, set expiry times, and generate access reports.
💳 Encoder & MIFARE Cards
The encoder quickly programs MIFARE 13.56MHz cards with room‑specific access rights, expiry times, and access levels (guest, master, housekeeping). Same card optionally controls energy saving switches.
The encoder quickly programs MIFARE 13.56MHz cards with room‑specific access rights, expiry times, and access levels (guest, master, housekeeping). Same card optionally controls energy saving switches.
🔌 Energy Saving Switch (Optional)
Single‑card solution for both door access and room power. Guest inserts the same card into the energy saving switch to activate lighting, AC, and appliances – reducing energy waste by up to 30%.
Single‑card solution for both door access and room power. Guest inserts the same card into the energy saving switch to activate lighting, AC, and appliances – reducing energy waste by up to 30%.
🏨 Why Modern Hotels Are Switching to RFID Electronic Room Locks
⚡ Enhanced Guest Experience
Guests appreciate the convenience of a tap‑to‑open key card. No fumbling with traditional keys – faster, easier, and more hygienic access.
Guests appreciate the convenience of a tap‑to‑open key card. No fumbling with traditional keys – faster, easier, and more hygienic access.
🔒 Superior Security
MIFARE RFID cards are difficult to clone. The mechanical override key provides a failsafe backup, and audit trails can track all card accesses.
MIFARE RFID cards are difficult to clone. The mechanical override key provides a failsafe backup, and audit trails can track all card accesses.
💼 Operational Efficiency
BIS Hotel software automates key card creation, expiry, and block‑listing. Reduce front desk workload, eliminate manual key tracking, and improve guest check‑in speed.
BIS Hotel software automates key card creation, expiry, and block‑listing. Reduce front desk workload, eliminate manual key tracking, and improve guest check‑in speed.
💡 Energy Savings
Pair the HL-200 with an energy saving switch (optional) to automatically cut power when rooms are unoccupied. Lower utility bills while supporting green hotel initiatives.
Pair the HL-200 with an energy saving switch (optional) to automatically cut power when rooms are unoccupied. Lower utility bills while supporting green hotel initiatives.
🌟 Key Benefits of the eSSL HL-200 Hotel Room Lock
✅ Reduce Operational Costs
Eliminate traditional key replacement and lock re‑keying expenses. Digital cards are cheap and easy to deactivate. Battery‑powered design requires no hardwiring, lowering installation and maintenance costs.
Eliminate traditional key replacement and lock re‑keying expenses. Digital cards are cheap and easy to deactivate. Battery‑powered design requires no hardwiring, lowering installation and maintenance costs.
✅ Improve Guest Satisfaction
Fast, contactless access impresses tech‑savvy travellers. Reduce front desk queues at check‑in with pre‑programmed key cards.
Fast, contactless access impresses tech‑savvy travellers. Reduce front desk queues at check‑in with pre‑programmed key cards.
✅ Future‑Ready Technology
MIFARE technology is the industry standard for RFID access control, ensuring compatibility with future upgrades, mobile keys, and third‑party integrations.
MIFARE technology is the industry standard for RFID access control, ensuring compatibility with future upgrades, mobile keys, and third‑party integrations.
✅ Tamper‑Proof Audit Trail
Every door access is logged (414 events). BIS Hotel software provides detailed audit reports, helping management track staff access, investigate incidents, and ensure accountability.
Every door access is logged (414 events). BIS Hotel software provides detailed audit reports, helping management track staff access, investigate incidents, and ensure accountability.
✅ Long‑Lasting & Low Maintenance
SUS304 stainless steel and electro‑mechanical design withstand heavy daily use. AA batteries last 12‑18 months with low battery warning alerts before failure.
SUS304 stainless steel and electro‑mechanical design withstand heavy daily use. AA batteries last 12‑18 months with low battery warning alerts before failure.
✅ Protect Your Property & Guests
Rugged construction, high‑strength deadbolt, and 3‑point latch design resist forced entry attempts while providing emergency panic release for guest safety.
Rugged construction, high‑strength deadbolt, and 3‑point latch design resist forced entry attempts while providing emergency panic release for guest safety.
🏢 Where to Deploy the eSSL HL-200 Electronic Hotel Lock
🏨 Hotels & Resorts
Perfect for guest rooms, suites, and VIP floors – from boutique hotels to large luxury resorts.
Perfect for guest rooms, suites, and VIP floors – from boutique hotels to large luxury resorts.
🏢 Serviced Apartments
Provide secure, keyless access for short‑term and long‑stay guests.
Provide secure, keyless access for short‑term and long‑stay guests.
🏥 Healthcare & Assisted Living
Control access to patient rooms, medication storage, and staff‑only areas.
Control access to patient rooms, medication storage, and staff‑only areas.
🏫 Educational Institutions
Secure dormitories, faculty housing, and administrative offices with RFID cards.
Secure dormitories, faculty housing, and administrative offices with RFID cards.
🏘️ Residential Complexes
Use MIFARE cards for apartment entry and common area access.
Use MIFARE cards for apartment entry and common area access.
🏢 Corporate Guest Houses
Provide employee housing with secure, trackable access using company ID cards.
Provide employee housing with secure, trackable access using company ID cards.
✅ Why eSSL is the Right Choice for Your Hotel Security
Proven Hospitality Expertise
Thousands of hotel locks installed across India and international properties. eSSL provides robust, reliable security hardware for the demanding hospitality industry.
Thousands of hotel locks installed across India and international properties. eSSL provides robust, reliable security hardware for the demanding hospitality industry.
Complete Solution – One Vendor
We supply locks, MIFARE cards, encoder, BIS Hotel software, and optional energy saving switches – no need to assemble from multiple suppliers.
We supply locks, MIFARE cards, encoder, BIS Hotel software, and optional energy saving switches – no need to assemble from multiple suppliers.
Easy Installation & Scalability
From a single‑door retrofit to a multi‑floor hotel, the HL‑200 is simple to install. The BIS Hotel software seamlessly scales to manage hundreds of rooms.
From a single‑door retrofit to a multi‑floor hotel, the HL‑200 is simple to install. The BIS Hotel software seamlessly scales to manage hundreds of rooms.
Dedicated Local Support
eSSL Pune provides on‑site installation, hotel staff training, and ongoing technical support – across India.
eSSL Pune provides on‑site installation, hotel staff training, and ongoing technical support – across India.
❓ Frequently Asked Questions – eSSL HL-200 Hotel Room Lock
What type of cards work with the eSSL HL-200 hotel room lock?
The HL-200 uses MIFARE 13.56MHz RFID cards (ISO 14443A). It is compatible with MIFARE Classic cards, and the same cards can be used to operate both the room lock and the optional energy saving switch.
What is the power source for the eSSL HL-200 lock?
The HL-200 is powered by 4 AA alkaline batteries (1.5V each), housed inside the back lock body. Batteries are easily replaceable without removing the lock. A low battery indicator alerts staff before the batteries need replacement.
Does the HL-200 have a manual override in case of battery failure?
Yes. The HL-200 includes a mechanical cylinder that can be opened with an emergency key, providing a reliable fail-safe access method even if the electronics fail or batteries are completely drained.
What door thickness does the HL-200 support?
The lock is designed for doors with a thickness range of 35mm to 65mm, making it suitable for standard wooden doors, fire-rated doors, and many retrofit applications.
Does the HL-200 integrate with hotel management software?
Yes. The HL-200 is fully compatible with the BIS Hotel software platform, enabling centralized card management, guest check-in/check-out, master and emergency cards, along with audit trail generation.
What is the panic release function?
In an emergency, rotating the inside handle automatically retracts both the latch and deadbolt, allowing guests to exit the room quickly without fumbling for keys or pressing multiple buttons – critical for fire safety.
