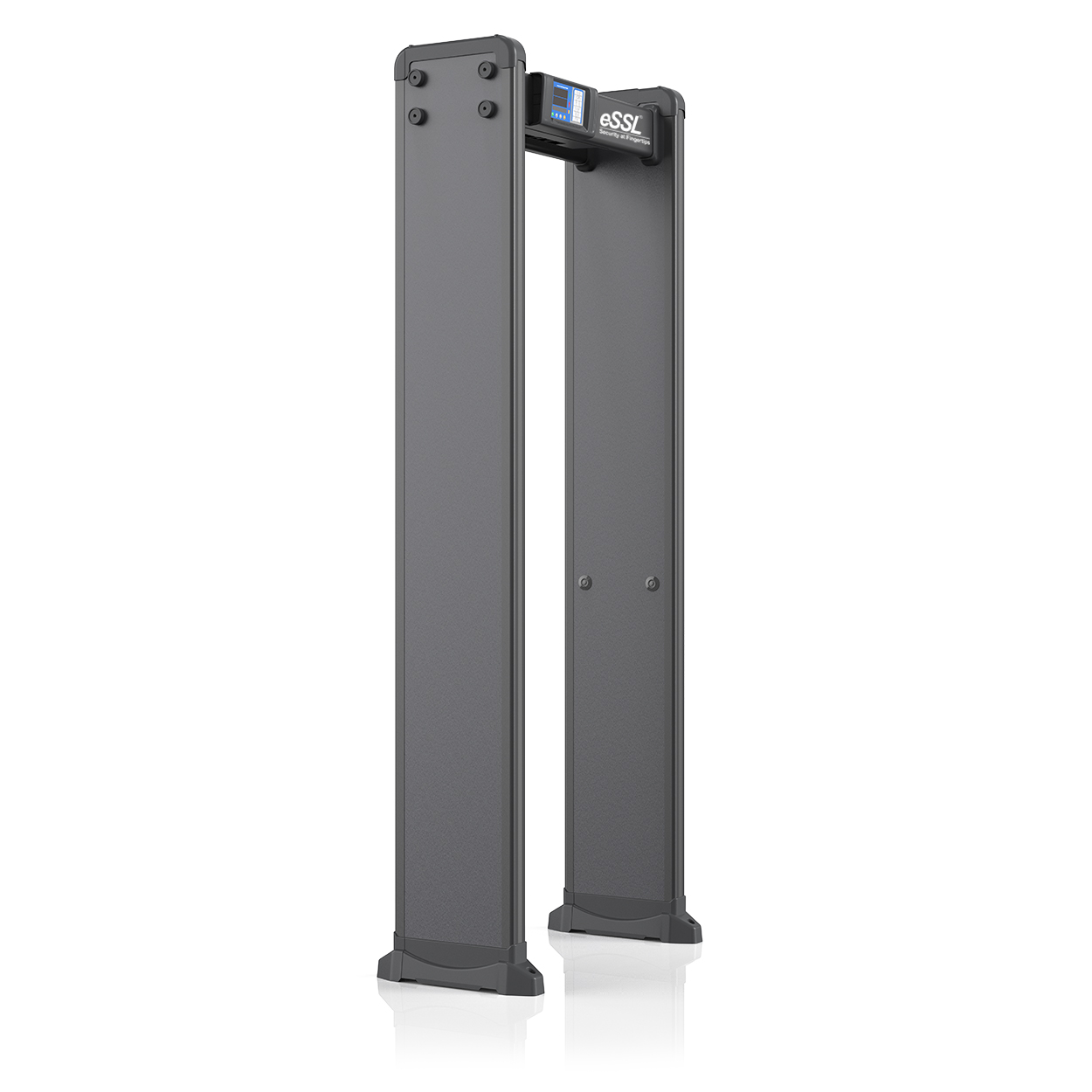

eSSL D330-18-IP65 – 18 Zone Door Frame Metal Detector with IP65 Rating
The eSSL D330-18-IP65 door frame metal detector is a professional 18‑zone walk‑through security system engineered for both indoor and harsh outdoor environments. With its IP65 weather‑resistant enclosure, 0–400 adjustable sensitivity per zone, 15 distinct alarm tones, and integrated pass/alarm counters, it delivers precise, reliable threat detection for airports, metro stations, government buildings, corporate campuses, and industrial facilities.
The eSSL D330‑18‑IP65 is the most rugged member of the D330 series, offering 18 detection zones and an IP65‑rated dust‑tight and water‑jet‑resistant housing. Powered by electromagnetic pulse induction technology, it pinpoints concealed metal objects with exceptional precision while supporting high‑throughput screening – even in rain, dust, and extreme temperatures (-20°C to +65°C). Its 5‑digit 7‑segment bright LED display, zone LED indicators, and built‑in IR people/ alarm counters provide security personnel with the real‑time information needed to operate an efficient checkpoint.
Unlike standard indoor metal detectors, the D330-18-IP65 is specially designed for outdoor security checkpoints, industrial gateways, event venues, and any location where exposure to the elements is unavoidable. Its IP65 rating means the electronics are completely protected against dust ingress and low‑pressure water jets, ensuring uninterrupted operation in the harshest environments.
🔑 Key Features – eSSL D330-18-IP65 Door Frame Metal Detector
18 independent detection zones with high‑brightness LED displays help security staff quickly pinpoint the exact height of any concealed metal object, dramatically reducing pat‑down time.
Rated IP65, the detector is dust‑tight and protected against low‑pressure water jets. Perfect for outdoor installations, uncovered entry points, and locations subject to rain or industrial dust.
Fine‑tune each zone’s sensitivity to discriminate between harmless items (keys, coins) and genuine threats while maintaining high‑probability threat detection.
Select from 6, 12, or 18 detection zone modes depending on your security requirements – the same hardware adapts to different threat levels.
Choose among 15 different audible alerts with user‑adjustable volume (0–50) and alarm duration (0–3 seconds), ensuring the alarm is always distinct but not disruptive.
Built‑in infrared sensors automatically count total footfall and separately record triggered alarms, providing security supervisors with real‑time checkpoint statistics and full audit trails.
Adjustable operating frequency eliminates cross‑talk and interference when multiple metal detectors are installed side‑by‑side – essential for large security checkpoints.
Integrate with turnstiles, flap barriers, and boom barriers via an optional IoT access controller. The system can physically block persons carrying prohibited items from entering.
📊 Technical Specifications – eSSL D330-18-IP65 Walk‑Through Metal Detector
| Detection Technology | Electromagnetic induction |
|---|---|
| Detection Zones | 18 independent multi‑zone detection with high‑brightness LED displays (selectable 6/12/18 zones) |
| Overall Dimensions (H×W×D) | 2191 mm × 875 mm × 446 mm |
| Passage Dimensions (H×W×D) | 2007 mm × 720 mm × 446 mm |
| Net Weight / Gross Weight | 35 kg / 42 kg |
| Ingress Protection (IP) Rating | IP65 (dust‑tight, protected against water jets) |
| Operating Temperature Range | -20 °C to +65 °C |
| Operating Humidity | ≤ 99 % (non‑condensing) |
| Power Supply | AC 100 V – 240 V, 50 Hz / 60 Hz |
| Sensitivity Adjustment | 0–400 per zone (independent) |
| Operating Frequency | 0–99 (adjustable) |
| Alarm Volume | 0–50 (user‑adjustable) |
| Alarm Duration | 0–3 seconds (adjustable) |
| Alarm Tones | 15 different selectable tones |
| Minimum Detectable Metal (Ferrous) | < 75 g |
| Minimum Detectable Metal Dimensions | Thickness 2 mm, length 50 mm, width 20 mm |
| Construction Material | High‑intensity ABS (Acrylonitrile Butadiene Styrene) |
| Colour | Matte Black |
⚙️ How the eSSL D330-18-IP65 Detection System Works
Embedded coils in the side panels create a low‑intensity pulsed magnetic field that fills the entire passage area. Any metal object disturbs this field, triggering an immediate response.
A high‑speed microprocessor analyses the disturbance against programmed sensitivity thresholds (0–400 per zone), using advanced filtering algorithms to reduce false alarms.
When detection occurs, the corresponding zone’s LED illuminates, giving security personnel an instant visual indication of where on the body the object is located – reducing search time and improving throughput.
Infrared sensors count the number of persons walked through and the number of alarms triggered. This complete audit trail helps management monitor checkpoint efficiency and compliance.
🏢 Where to Deploy the eSSL D330-18-IP65 Door Frame Metal Detector
Screen high volumes of passengers for firearms, knives, and other prohibited items – even at outdoor security screening areas exposed to rain and wind.
Secure main lobbies, server rooms, and high‑security floors. The IP65 rating provides reliable operation at building entrances with open-air exposure.
Protect sensitive facilities by screening employees, visitors, and contractors at perimeter entry checkpoints.
Enhance campus safety at school/university entrances. The IP65 housing withstands weather exposure for outdoor campus gates.
Secure hotel lobbies, banquet halls, convention centres, and stadium entrances with a detector that maintains performance in variable lighting and weather.
Prevent unauthorised removal of metal assets and reinforce compliance at factory gates, distribution centres, and warehouse entrances – even in dusty or wet conditions.
🌟 Why Choose eSSL Pune as Your Door Frame Metal Detector Partner?
We supply factory‑fresh D330-18-IP65 detectors with full manufacturer warranty and compliance with eSSL security standards – no grey market or counterfeit products.
Our Pune‑based engineers handle site surveys, assembly, calibration, and integration with existing security systems. We ensure your metal detector door is operational from day one.
Connect the detector to turnstiles, flap barriers, boom barriers, CCTV, and access control systems for a complete security ecosystem. Optional IoT controller blocks unauthorised passage.
Best‑in‑class rates for the eSSL D330-18-IP65, plus optional annual maintenance contracts for ongoing support, calibration checks, and firmware updates.
🔌 Seamless ERP, HRMS & Security System Integration
The eSSL D330-18-IP65 door frame metal detector can be integrated with a wide range of business and security systems, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral and Oracle. Our experts can help you configure event logging, visitor access records, and audit trails directly into your existing ERP platform, unifying physical security with workforce management and access control.
