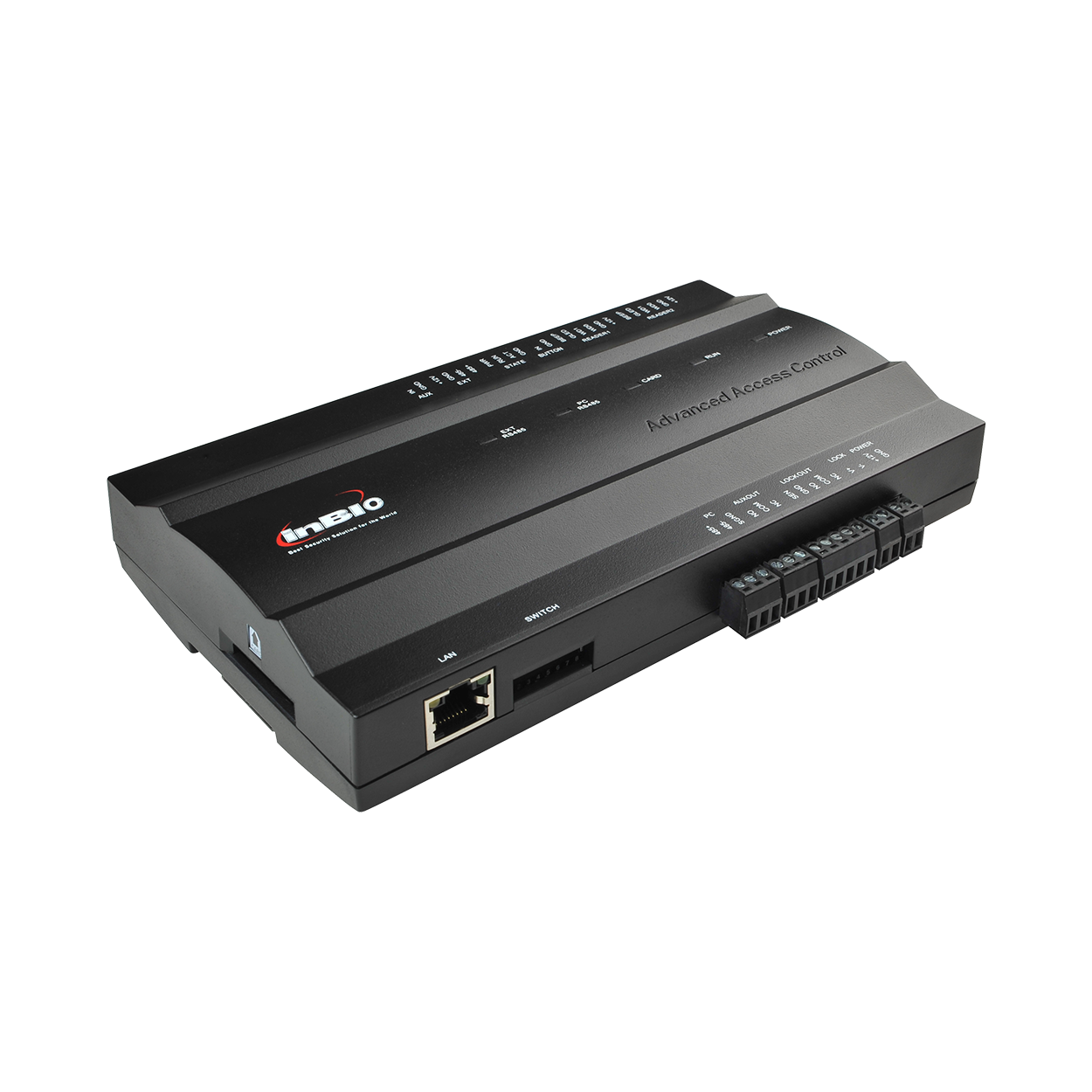

eSSL InBio 160 Pro Plus – High‑Security 1‑Door Biometric Controller
The InBio 160 Pro Plus represents the new generation of eSSL door controllers – a powerful Linux‑based IP access control panel that combines embedded biometric verification (fingerprint, face), RFID card, password and QR code authentication inside a single unit. Designed for professional installations where reliability, scalability and data security are non‑negotiable.
eSSL InBio 160 Pro Plus is a flagship member of the advanced eSSL door controllers family. Unlike conventional access panels, it performs fingerprint matching directly on‑board (no external PC needed for verification). It connects to a wide range of RS‑485 biometric readers (face, fingerprint) and Wiegand readers, making it the ideal choice for offices, banks, research labs, and industrial facilities that demand the highest level of physical access control.
🔐 Core Capabilities – eSSL Door Controllers Excellence
Fingerprint templates are verified inside the controller, delivering instant response times. Works seamlessly with eSSL/ ZKTeco RS‑485 readers (FR1200, FR1500S, etc.).
2 RS‑485 (OSDP) ports + 2 Wiegand ports allow flexible reader combinations for entry/exit or multi‑credential setups (fingerprint + card).
Supports up to 100,000 cards, 20,000 fingerprints, 3,000 faces and 100,000 QR codes – exceptional scalability for a single‑door eSSL door controller.
Full audit trail of all access attempts, alarm events and configuration changes. Never lose critical security data.
Anti‑passback, interlocking, multi‑card opening, duress alarm, first‑card opening, and global interlock – built into the controller firmware.
AES‑256 for stored data, AES‑128 for reader communication, and HTTPS / TLS 1.2 for web management sessions – protection at every level of the eSSL door controller architecture.
📊 Technical Specifications – InBio 160 Pro Plus
| Model | eSSL InBio 160 Pro Plus |
|---|---|
| Type | IP‑Based 1‑Door Biometric Access Control Panel |
| Operating System | Linux OS |
| CPU | Single Core @ 1.0 GHz |
| Memory | 128 MB RAM / 256 MB Flash |
| Card Capacity | 100,000 (standard) 30,000 default, expandable with license |
| Fingerprint Templates | 20,000 (standard) |
| Face Templates | 3,000 |
| QR Code Capacity | 100,000 (static / dynamic) |
| Transaction Logs | 500,000 events |
| Communication | TCP/IP (Ethernet), RS‑485, Wiegand |
| Reader Interfaces | 2 × RS‑485 (OSDP protocol) 2 × Wiegand (26/34/66 bit) |
| Number of Inputs | 3 (1 Exit Button, 1 Door Sensor, 1 AUX Input) |
| Number of Outputs | 2 (1 Form‑C Relay for Lock, 1 Form‑C Relay for AUX) |
| Expansion | Up to 8 × EX0808 I/O boards via RS‑485 (adds 64 inputs / 64 outputs) |
| Power Supply | 9.6 V – 14.4 V DC |
| Operating Temperature / Humidity | 0°C to 45°C / 20% – 80% RH (non‑condensing) |
| Dimensions (Board) | 185.12 mm × 106 mm × 36.07 mm |
| Mounting | Wall Mount (metal enclosure optional) |
| Software & Database | eSSL BioCVsecurity 6.4.1 (Web) – PostgreSQL, MSSQL, Oracle |
| Software Features | 256 Time Zones, 256 Access Levels, Anti‑passback, Interlock, Linkage, Multi‑Card Opening, Remote Door Control, Real‑Time Web Monitoring |
💻 Centralised Management – eSSL BioCVsecurity 6.4.1
Manage all eSSL door controllers from any browser – real‑time monitoring, access rule programming, report generation and firmware updates.
Default PostgreSQL, plus optional MSSQL or Oracle – suitable for multi‑branch and large‑scale deployments.
Firmware can be updated remotely for both the controller and connected RS‑485 readers, greatly reducing maintenance costs.
🏗️ Scalable architecture – mix InBio Pro Plus models
All models of the InBio Pro Plus family (160, 260, 460) can be freely mixed in a single physical security system. This unique flexibility of eSSL door controllers allows you to use 1‑door panels for remote offices, 2‑door for department entrances, and 4‑door for main lobbies – all managed from the same BioCVsecurity software, drastically reducing hardware costs while keeping centralised control.
🏢 Typical Applications for eSSL Door Controllers
- 🏦 Banking & financial institutions – secure server rooms, vault access and back offices with multi‑factor authentication.
- 🧪 Research & pharmaceutical labs – enforce dual‑person authentication for high‑risk zones.
- 🏭 Industrial & manufacturing facilities – restrict entry to production areas and tool storage while tracking attendance.
- 🏛️ Government buildings & data centres – anti‑passback, interlock and duress alarms for critical perimeters.
- 🏢 Corporate campuses & IT parks – manage hundreds of employees with fingerprint or QR code access.
🔌 Seamless HRMS & Payroll Integration
Stop manual data entry – the InBio 160 Pro Plus can be integrated with leading business platforms via scheduled exports (CSV, Excel) or using the available SDK. eSSL Pune's technical team has deep experience connecting attendance logs to Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, Oracle and other ERP systems.
