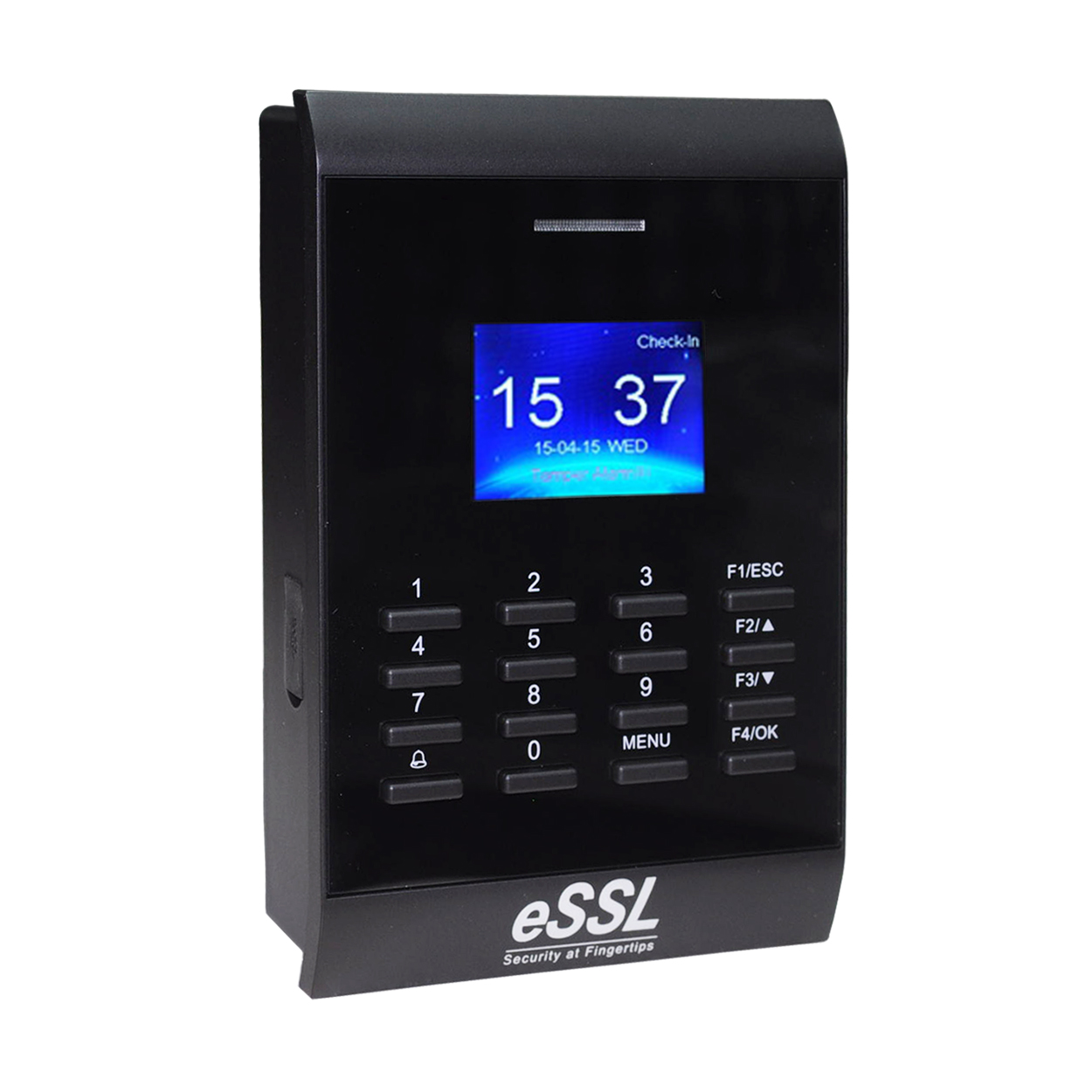

eSSL SC-405 – Standalone RFID Access Control Machine & Time Attendance Terminal
The eSSL SC-405 access control machine is a compact, standalone RFID terminal that combines time attendance tracking with door access control in one cost‑effective device. Supporting 125kHz EM proximity cards and PIN codes, it delivers fast (≤0.1 sec), secure, and contactless authentication. With a built‑in relay for direct lock control, 30,000 card capacity, 50,000 transaction logs, and TCP/IP + USB communication, the SC-405 is the ideal solution for offices, factories, schools, and residential buildings.
The eSSL SC-405 is a standalone RFID access control and time attendance terminal that combines a card reader, keypad, and door controller in a single unit. It reads 125kHz EM proximity cards and accepts PIN‑based authentication, transmitting the user ID to the built‑in relay for direct lock control – no external controller needed. All user credentials (up to 30,000 cards) and attendance logs (50,000 events) are stored locally on the device, making it a cost‑effective, easy‑to‑install solution for small to medium‑sized facilities.
The SC-405 features a 2.0‑inch colour TFT display with an intuitive graphical user interface, a backlit 4 × 4 keypad, and both green/red LED indicators for clear access feedback. It supports multiple verification methods – card only, PIN only, or card + PIN – allowing you to choose the appropriate security level for each user group. The device connects to a PC via TCP/IP (Ethernet), RS485, or USB for data export, configuration, and software updates. With its built‑in relay, door sensor input, exit button support, and anti‑passback logic, the SC-405 is a complete, all‑in‑one access control machine for single‑door installations.
📊 Technical Specifications – eSSL SC-405
Product Model
eSSL SC-405 (Proximity T&A & Access Control)
Product Type
Standalone RFID Access Control / Time Attendance Terminal
Authentication Methods
EM Proximity Card (125kHz), PIN, Card + PIN
User / Card Capacity
30,000 cards
Transaction Log Capacity
50,000 events
Identification Speed
≤ 0.1 sec (≤1 sec typical)
FAR / FRR
≤0.0001% / ≤1%
Display
2.0‑inch Color TFT LCD (Graphical UI)
Keypad
4 × 4 backlit membrane keypad
LED Indicators
Green / Red status LEDs
Communication Interfaces
TCP/IP (Ethernet), RS232/RS485, USB‑Host 2.0
Wiegand Interface
26‑bit Input & Output (supports external readers)
Power Supply
12 V DC, 2 A – 3 A (recommended)
Power Input
12 V DC / 400 mA typical
Relay Output (Lock)
Built‑in relay for electric lock / magnetic lock / strike
Door Sensor Input
Yes (monitors forced‑open, held‑open)
Exit Button Input
Yes
Fire Alarm Input
Yes (override for failsafe opening)
Anti‑Passback
Yes (hard / soft configurable)
Time Zones / Groups
50 time zones, 5 user groups, 10 time combinations
Operating Temperature / Humidity
0 °C to 45 °C / 20% – 80% RH (non‑condensing)
Dimensions (L × W × H)
143 mm × 95.5 mm × 39.5 mm
Specifications derived from eSSL Security documentation and industry‑recognised technical data. Optional features (Mifare/HID, Anti‑passback) may require accessory modules.
🔑 Key Features – eSSL SC-405 Access Control Machine
✅ 30,000 Card Capacity & 50,000 Transaction Logs Large‑scale user and event storage for small to medium enterprises. Maintain a complete attendance and access audit trail without frequent downloads.
✅ ≤0.1 Sec Identification Speed High‑speed 32‑bit ARM microprocessor for instant card reading – employees can tap and go without waiting, reducing queuing during peak hours.
✅ 2.0" Colour TFT Display + 4×4 Keypad Clear, user‑friendly graphical interface with backlit keypad. Employees can view their last punch time, check schedules, and receive system notifications directly on the device.
✅ Built‑In Relay for Lock Control The SC-405 includes a built‑in relay (≤3 A) to directly control electric locks, magnetic locks, and strikes – no external controller required for single‑door installations.
✅ Multiple Communication Interfaces Standard TCP/IP (Ethernet) for network integration, RS232/RS485 for industrial connectivity, and USB‑Host for offline data export and firmware upgrades.
✅ Wiegand Input/Output (26‑bit) Expands system flexibility: Wiegand input allows connection of external exit readers (KR500E, KR503) or exit buttons; Wiegand output can feed card data to a central panel in multi‑door configurations.
✅ 50 Time Zones & 5 User Groups Define exactly when each user can access the door. Combine groups with 10 time combinations to enforce department‑specific or shift‑based access schedules.
✅ Anti‑Passback & Fire Alarm Integration Anti‑passback prevents card sharing and tailgating. The dedicated fire alarm input automatically opens the lock for safe evacuation, overriding all other access restrictions.
🔒 Standalone Access Control – Manage Doors Without a Controller
✅ Built‑In Lock Relay (12 V, ≤3 A) Direct connection to electric locks, magnetic locks, or strike locks. No external controller needed – single‑door installations are up and running in minutes.
✅ Wiegand Input for Exit Readers Connect external exit readers (e.g., KR500E, KR503) or hardwired exit buttons. Enables secure two‑way access control with a single SC‑405.
✅ Door Sensor Input Monitors the door position. Reports forced‑open or door‑held‑open events to the log, improving security and maintenance response.
✅ Anti‑Passback (Hard / Soft) Prevents card sharing. Enforces that a user must exit before being allowed to re‑enter, closing a common security loophole.
✅ Fire Alarm Override Fire alarm input automatically releases the lock, allowing barrier‑free evacuation. This overrides any active anti‑passback or time‑zone restrictions, meeting safety codes.
✅ 50 Time Zones & Schedule Bell Assign access schedules by hour, day, or user group. The built‑in schedule bell can be configured to ring during shift changes, breaks, or other timed events.
🏢 Where to Deploy the eSSL SC‑405 Access Control Machine
🏢 Corporate Offices & SMEs Secure employee entrances, server rooms, and executive areas. Eliminate manual registers – employees use their existing EM proximity cards for touch‑free attendance and door access.
🏭 Industrial & Manufacturing Facilities Card‑based authentication withstands dusty factory environments. Manage shift attendance for up to 30,000 workers and secure tool cribs or production zones.
🏫 Educational Institutions & Libraries Staff and student attendance tracking for schools and universities. Secure labs, libraries, and administrative blocks with simple card access and scheduled bells.
🏥 Healthcare Facilities & Pharmacies Pharmacy access, staff entry to restricted wards, and secure medical record rooms – all from a single device. Integrated fire alarm input meets safety codes.
🏘️ Residential Apartments & Gated Communities Control entry to lift lobbies, clubhouses, and parking areas using resident ID cards. The anti‑passback feature prevents tailgating.
🏗️ Construction & Contractor Sites Issue temporary credentials to subcontractors, enforce attendance for billing, and secure material storage zones. Retrieve logs via USB without network installation.
🌟 Why Choose the eSSL SC‑405 Access Control Machine?
True Standalone – No PC Required All user credentials, access rules, and transaction logs are stored locally on the device. Program the unit directly from the keypad, add or delete cards, set door‑open time, and define time zones – no PC, no server, no software license needed.
Cost‑Effective Card‑Based Solution If your organisation already uses EM proximity cards for ID badges, the SC-405 is the most economical way to automate attendance and door access without buying fingerprint hardware or additional controllers.
Future‑Ready Communications TCP/IP, RS485, and USB options ensure you can network the device with your existing infrastructure – or use USB for offline data retrieval at remote sites without network connectivity.
Seamless ERP / HRMS Integration Export data directly to your payroll, HR, or ERP platform using eTimeTrackLite or the device‘s SDK. Reduce manual data entry and payroll errors while unifying physical security with workforce management.
🔌 Software, ePush & ERP/HRMS Integration
The eSSL SC-405 is fully supported by eTimeTrackLite (desktop and web versions), which provides comprehensive time‑attendance reporting, shift management, and leave tracking. For remote deployments, the device supports Push Data functionality, automatically sending attendance logs to a cloud server (eSSL ePush) in real time. Standard data export (CSV, Excel) and SDK are available for custom integrations with leading ERP, HRMS, and payroll platforms, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle. Our integration team can configure event logging, access records, and audit trails directly into your enterprise software.
❓ Frequently Asked Questions – eSSL SC‑405 Access Control Machine
What is the eSSL SC-405 access control machine?
The eSSL SC-405 is a standalone RFID access control and time attendance terminal that uses 125kHz EM proximity cards and PIN codes for authentication. It manages door access, records employee attendance, and stores data locally – no computer needed for daily operation.
How many users can the eSSL SC-405 store?
The SC-405 supports up to 30,000 card users and stores 50,000 transaction logs, making it suitable for small to medium‑sized enterprises and multi‑user environments.
Does the eSSL SC-405 require an external controller?
No. The SC-405 is a standalone access control machine with a built‑in relay. It can directly control electric locks, magnetic locks, strikes, and alarm outputs without needing an external access control panel – ideal for single‑door installations.
Can the eSSL SC-405 be integrated with existing payroll or HRMS software?
Yes. When connected to eSSL‘s eTimeTrackLite software or via its data export function, the SC-405 can feed attendance logs into leading ERP, HRMS, and payroll platforms, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle.
Ready to Deploy the eSSL SC‑405 Access Control Machine?
Our security specialists will help you integrate the SC‑405 with your door hardware, configure attendance policies, and connect it to your ERP or HRMS platform.
