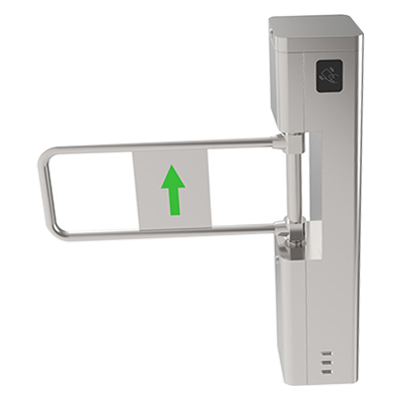

eSSL SB‑SPL‑310 – High‑Speed Single Lane Swing Barrier
The eSSL SB‑SPL‑310 swing barrier is a high‑speed pedestrian access control gate engineered for smooth, secure, and efficient entry management. With a robust 304 stainless steel column, configurable passage width, and integrated access control compatibility, it delivers reliable performance for corporate offices, gyms, educational institutions, manufacturing facilities, and transport hubs.
The eSSL SB‑SPL‑310 is a column‑type single lane swing barrier designed for high‑frequency pedestrian access control. Built with a 200x200mm 304 brushed stainless steel post (1.2mm thickness), it combines exceptional durability with a modern, elegant appearance. The barrier operates with a bi‑directional single passage design, achieving a throughput of 20‑25 persons per minute. Its rapid 0.2‑second operating time ensures minimal wait times during peak traffic, while the 600mm standard passage (expandable to 900mm) accommodates both standard walkways and ADA‑compliant wide passages.
🔑 Key Features – eSSL SB‑SPL‑310 Swing Barrier Gate
Ultra‑fast unlocking and opening for smooth, high‑speed passage, minimising wait times during peak traffic periods.
Efficiently handles moderate‑traffic volumes, perfect for corporate offices, gyms, and educational campuses.
Standard 600mm passage, optionally expandable to 900mm for ADA‑compliant wide‑lane accessibility and wheelchair use.
200x200mm column with 1.2mm thickness, offering superior corrosion resistance and long‑term durability.
Durable stainless steel swing arm frame provides a robust, secure barrier while maintaining an elegant, unobtrusive appearance.
Built‑in logic prevents unauthorised following and reverse passage, ensuring one valid credential grants access to exactly one person.
Configurable for two‑way card reading (entry+exit), one‑way card reading with free exit, or one‑way with exit button – adaptable to site policy.
Doors automatically swing open on power failure or fire alarm, ensuring an unobstructed evacuation path in compliance with safety codes.
📊 Technical Specifications – eSSL SB‑SPL‑310 Swing Barrier
| Product Model | eSSL SB‑SPL‑310 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Size (L×W×H) | 200 mm × 200 mm × 980 mm | ||||||||||||||||||
| Passage Width | 600 mm (standard); 900 mm (optional) | ||||||||||||||||||
| Thickness / Material | SS 1.2mm / Stainless Steel 304
⚙️ Advanced Security & Safety Features🔒 Anti‑Tailgating & Anti‑Reverse Pass
Integrated sensor logic and control algorithms enforce “one card, one passage,” preventing unauthorised following and reverse‑direction attempts. ⏱️ Auto‑Reset & Timeout Lock
If the authorised user does not pass within the programmed time after authentication, the gate automatically restores to its locked state, preventing piggyback attempts. 🟢 LED Indicator & Guide Lights
Visual status indicators for authorised passage (green arrow), alert, and standby modes, giving operators immediate feedback on the gate‘s state. 🔥 Fail‑Safe Fire Interface
Doors automatically open on power loss or external fire alarm, ensuring an unobstructed evacuation path in compliance with fire safety regulations. 🏢 Where to Deploy the eSSL SB‑SPL‑310 Swing Barrier Gate🏢 Corporate Offices & IT Parks
Secure main lobbies, executive zones and server rooms. Integrates seamlessly with biometric, face recognition, or RFID readers. 🏫 Educational Institutions
Manage access to libraries, research labs, sports centres and dormitory zones, ensuring only authorised students and staff can enter. 🏭 Industrial & Manufacturing Facilities
Enforce attendance‑based access at factory gates, tool cribs, and production areas. The stainless steel construction withstands demanding industrial environments. 🏋️ Gyms & Fitness Centres
Securely manage member access to health clubs, swimming pools, and premium fitness areas while maintaining a sleek, modern appearance. 🚉 Transport Hubs & Airports
Efficiently control passenger and staff access at metro stations, bus depots, and airport employee entrances with high throughput. 🏛️ Government Buildings & Courts
Enforce strict physical security perimeters with anti‑tailgating and anti‑reverse pass logic. 🔌 Seamless Integration with Access Control & Biometric SystemsThe SB‑SPL‑310 uses dry contact communication, making it compatible with virtually any access control panel, biometric reader (fingerprint, face recognition), RFID card reader, or third‑party attendance system. When paired with eSSL’s AI Face series or Aiface Magnum terminals, the barrier automatically unlocks upon authorised identification, while also logging timestamps for attendance tracking. The system can be integrated with leading HR/ERP platforms:
🌟 Why Choose eSSL Pune as Your Swing Barrier Gate Partner?Genuine eSSL Hardware
We supply factory‑fresh SB‑SPL‑310 units with full manufacturer warranty – no grey market or counterfeit components. Expert Installation & Support
Our engineers handle site surveys, foundation planning, power/network wiring, and integration with any access controller. Seamless Ecosystem Integration
Integrate the swing barrier with turnstiles, boom barriers, CCTV, and attendance software for a unified security platform. Competitive Pricing & AMC Options
Best‑in‑class rates for the SB‑SPL‑310, plus optional AMC for sensor calibration, motor servicing, and firmware updates. ❓ Frequently Asked Questions – Swing Barrier GateWhat is the eSSL SB‑SPL‑310 swing barrier?
The eSSL SB‑SPL‑310 is a high‑speed single lane swing barrier designed for pedestrian access control at corporate offices, gyms, educational institutions, manufacturing facilities, and transport hubs. It features a 200x200mm 304 stainless steel column, 600mm standard passage (optional 900mm), and 0.2s operating time.
What is the passage width of the SB‑SPL‑310?
The SB‑SPL‑310 has a standard passage width of 600mm. An optional 900mm wide‑lane configuration is available for ADA‑compliant accessibility and wheelchair use.
Is the SB‑SPL‑310 compatible with third‑party access control systems?
Yes, the barrier uses dry contact communication, making it compatible with any standard access control panel, biometric reader, RFID card reader, face recognition terminal, or ERP/HRMS platform.
What safety features does the SB‑SPL‑310 offer?
The swing barrier includes anti‑tailgating detection, anti‑reverse pass logic, and a fire‑fighter automatic opening function that releases the barrier on power failure or fire alarm for safe evacuation.
