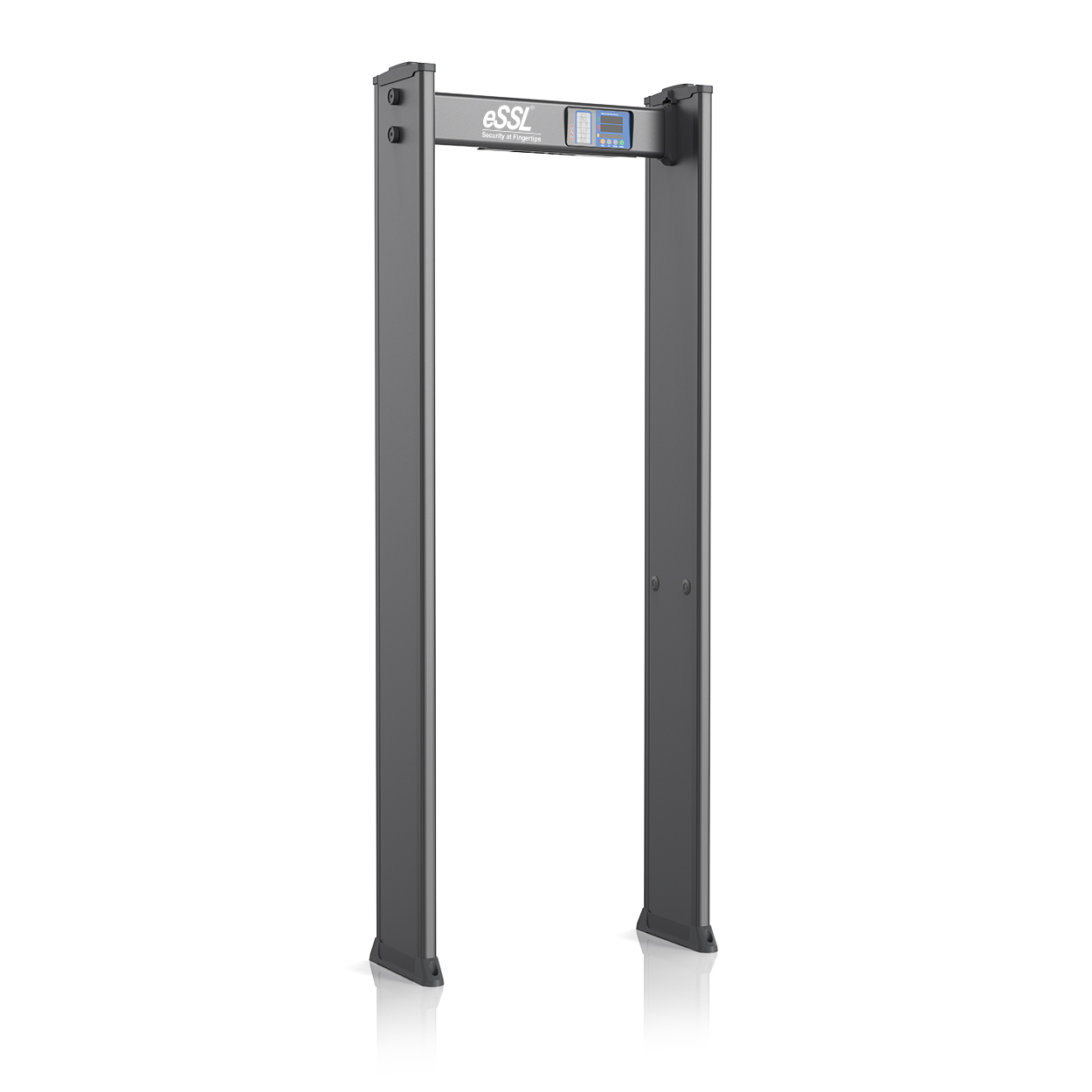

eSSL D270-18-IP65 – 18‑Zone IP65 Security Metal Detector
The eSSL D270-18-IP65 security metal detector is a professional 18‑zone walk‑through detector designed for high‑traffic screening in both indoor and outdoor environments. With an IP65 weather‑resistant enclosure, adjustable 0‑400 sensitivity per zone, 15 alarm tones, and integrated pass/alarm counters, it delivers reliable threat detection for airports, malls, government facilities, corporate campuses, and industrial sites.
The eSSL D270‑18‑IP65 is the most advanced member of the D270 series, offering 18 detection zones, an IP65‑rated dust‑tight and water‑jet‑resistant housing, and a rugged matte‑black ABS enclosure. Powered by electromagnetic pulse induction technology, it pinpoints concealed metal objects with exceptional precision while supporting high throughput screening – even in harsh weather conditions.
Unlike standard indoor detectors, the D270-18-IP65 is specially engineered for outdoor security checkpoints, industrial gateways, and event venues where exposure to rain, dust, humidity, and temperature extremes (-20°C to +65°C) is unavoidable. Its IP65 rating means the electronics are completely protected against dust ingress and low‑pressure water jets, ensuring uninterrupted operation in the harshest environments.
🔑 Key Features – eSSL D270-18-IP65 Security Metal Detector Gate
✅ 18‑Zone Precise Localisation
18 independent detection zones with dedicated high‑brightness LED displays help security staff quickly pinpoint the exact height of any concealed metal object, dramatically reducing pat‑down time.
18 independent detection zones with dedicated high‑brightness LED displays help security staff quickly pinpoint the exact height of any concealed metal object, dramatically reducing pat‑down time.
✅ IP65 Weatherproof Enclosure
Rated IP65, the detector is dust‑tight and protected against low‑pressure water jets. Perfect for outdoor installations, uncovered entry points, and locations subject to rain or industrial dust.
Rated IP65, the detector is dust‑tight and protected against low‑pressure water jets. Perfect for outdoor installations, uncovered entry points, and locations subject to rain or industrial dust.
✅ 0–400 Sensitivity per Zone (Independently Adjustable)
Fine‑tune each zone’s sensitivity to discriminate between harmless items (keys, coins) and genuine threats while maintaining high‑probability threat detection.
Fine‑tune each zone’s sensitivity to discriminate between harmless items (keys, coins) and genuine threats while maintaining high‑probability threat detection.
✅ Configurable 6/12/18 Zone Modes
Select from 6, 12, or 18 detection zone modes depending on your security requirements and site budget – the same hardware adapts to different threat levels.
Select from 6, 12, or 18 detection zone modes depending on your security requirements and site budget – the same hardware adapts to different threat levels.
✅ 15 Selectable Alarm Tones & Adjustable Volume
Choose among 15 different audible alerts with user‑adjustable volume (0–50) and alarm duration (0–3 seconds), ensuring the alarm is always distinct but not disruptive.
Choose among 15 different audible alerts with user‑adjustable volume (0–50) and alarm duration (0–3 seconds), ensuring the alarm is always distinct but not disruptive.
✅ Pass & Alarm Counters with IR Sensors
Built‑in infrared sensors automatically count total footfall and separately record triggered alarms, providing security supervisors with real‑time checkpoint statistics and full audit trails.
Built‑in infrared sensors automatically count total footfall and separately record triggered alarms, providing security supervisors with real‑time checkpoint statistics and full audit trails.
✅ Multi‑Frequency Operation (0–100)
Adjustable operating frequency eliminates cross‑talk and interference when multiple metal detectors are installed side‑by‑side – essential for large security checkpoints.
Adjustable operating frequency eliminates cross‑talk and interference when multiple metal detectors are installed side‑by‑side – essential for large security checkpoints.
✅ Optional Entrance Automation Integration
Integrate with turnstiles, flap barriers, and boom barriers via an optional IoT access controller. The system can physically block persons carrying prohibited items from entering.
Integrate with turnstiles, flap barriers, and boom barriers via an optional IoT access controller. The system can physically block persons carrying prohibited items from entering.
📊 Technical Specifications – eSSL D270-18-IP65 Walk‑Through Metal Detector
| Detection Technology | Electromagnetic pulse induction |
|---|---|
| Detection Zones | 18 independent multi‑zone detection with high‑brightness LED displays (selectable 6/12/18 zones) |
| Overall Dimensions (H×W×D) | 2165 mm × 828 mm × 349 mm |
| Passage Dimensions (H×W×D) | 2017 mm × 720 mm × 349 mm |
| Net Weight / Gross Weight | 21 kg / 27 kg |
| Ingress Protection (IP) Rating | IP65 (dust‑tight, protected against water jets) |
| Operating Temperature Range | -20 °C to +65 °C |
| Operating Humidity | ≤ 99 % (non‑condensing) |
| Power Supply | AC 100 V – 240 V, 50 Hz / 60 Hz |
| Sensitivity Adjustment | 0–400 per zone (independent) |
| Operating Frequency | 0–100 (adjustable) |
| Alarm Volume | 0–50 (user‑adjustable) |
| Alarm Duration | 0–3 seconds (adjustable) |
| Alarm Tones | 15 different selectable tones |
| Minimum Detectable Metal | Ferrous metals < 75 g (depending on composition/placement) |
| Construction Material | High‑intensity ABS (Acrylonitrile Butadiene Styrene) |
| Colour | Matte Black |
⚙️ How the eSSL D270-18-IP65 Security Metal Detector Works
🔎 Electromagnetic Field Generation
Embedded coils in the side panels create a low‑intensity pulsed magnetic field across the passage area. Any metal object disturbs this field, triggering an immediate response.
Embedded coils in the side panels create a low‑intensity pulsed magnetic field across the passage area. Any metal object disturbs this field, triggering an immediate response.
⚡ Real‑Time Signal Processing
A high‑speed microprocessor analyses the disturbance against programmed sensitivity thresholds (0–400 per zone), using advanced filtering algorithms to reduce false alarms.
A high‑speed microprocessor analyses the disturbance against programmed sensitivity thresholds (0–400 per zone), using advanced filtering algorithms to reduce false alarms.
🎯 18‑Zone Localisation
When detection occurs, the corresponding zone’s LED illuminates, giving security personnel an instant visual indication of where on the body the object is located – reducing search time and improving throughput.
When detection occurs, the corresponding zone’s LED illuminates, giving security personnel an instant visual indication of where on the body the object is located – reducing search time and improving throughput.
📊 Automatic Counting & Reporting
Infrared sensors count the number of persons walked through and the number of alarms triggered. This complete audit trail helps management monitor checkpoint efficiency and compliance.
Infrared sensors count the number of persons walked through and the number of alarms triggered. This complete audit trail helps management monitor checkpoint efficiency and compliance.
🏢 Where to Deploy the eSSL D270-18-IP65 Security Metal Detector
✈️ Airports & Metro Stations
Screen high volumes of passengers for firearms, knives, and other prohibited items – even at outdoor security screening areas exposed to rain and wind.
Screen high volumes of passengers for firearms, knives, and other prohibited items – even at outdoor security screening areas exposed to rain and wind.
🏢 Corporate Offices & IT Parks
Secure main lobbies, server rooms, and high‑security floors. The IP65 rating provides reliable operation at building entrances with open-air exposure.
Secure main lobbies, server rooms, and high‑security floors. The IP65 rating provides reliable operation at building entrances with open-air exposure.
🏛️ Government Buildings & Courts
Protect sensitive facilities by screening employees, visitors, and contractors at perimeter entry checkpoints.
Protect sensitive facilities by screening employees, visitors, and contractors at perimeter entry checkpoints.
🏫 Educational Institutions
Enhance campus safety at school/university entrances. The IP65 housing withstands weather exposure for outdoor campus gates.
Enhance campus safety at school/university entrances. The IP65 housing withstands weather exposure for outdoor campus gates.
🏨 Hotels & Hospitality Venues
Secure hotel lobbies, banquet halls, convention centres, and stadium entrances with a detector that maintains performance in variable lighting and weather.
Secure hotel lobbies, banquet halls, convention centres, and stadium entrances with a detector that maintains performance in variable lighting and weather.
🏭 Industrial & Manufacturing Facilities
Prevent unauthorised removal of metal assets and reinforce compliance at factory gates, distribution centres, and warehouse entrances – even in dusty or wet conditions.
Prevent unauthorised removal of metal assets and reinforce compliance at factory gates, distribution centres, and warehouse entrances – even in dusty or wet conditions.
🌟 Why Choose eSSL Pune as Your Security Metal Detector Partner?
Genuine eSSL Hardware
We supply factory‑fresh D270-18-IP65 detectors with full manufacturer warranty and compliance with eSSL security standards – no grey market or counterfeit products.
We supply factory‑fresh D270-18-IP65 detectors with full manufacturer warranty and compliance with eSSL security standards – no grey market or counterfeit products.
Expert Installation & Support
Our Pune‑based engineers handle site surveys, assembly, calibration, and integration with existing security systems. We ensure your metal detector is operational from day one.
Our Pune‑based engineers handle site surveys, assembly, calibration, and integration with existing security systems. We ensure your metal detector is operational from day one.
Seamless Integration
Connect the detector to turnstiles, flap barriers, boom barriers, CCTV, and access control systems for a complete security ecosystem. Optional IoT controller blocks unauthorised passage.
Connect the detector to turnstiles, flap barriers, boom barriers, CCTV, and access control systems for a complete security ecosystem. Optional IoT controller blocks unauthorised passage.
Competitive Pricing & AMC Options
Best‑in‑class rates for the eSSL D270-18-IP65, plus optional annual maintenance contracts for ongoing support, calibration checks, and firmware updates.
Best‑in‑class rates for the eSSL D270-18-IP65, plus optional annual maintenance contracts for ongoing support, calibration checks, and firmware updates.
🔌 Seamless ERP, HRMS & Security System Integration
The eSSL D270-18-IP65 security metal detector can be integrated with a wide range of business and security systems, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral and Oracle. Our experts can help you configure event logging, visitor access records, and audit trails directly into your existing ERP platform, unifying physical security with workforce management and access control.
❓ Frequently Asked Questions – Security Metal Detector
What is the eSSL D270-18-IP65 security metal detector?
The eSSL D270-18-IP65 is a professional 18-zone walk-through metal detector. It uses electromagnetic induction technology and can be adjusted from 0–400 sensitivity. The system automatically counts the number of persons passing through as well as the number of alarms triggered.
How many detection zones does the D270-18-IP65 have?
The eSSL D270-18-IP65 is an 18‑zone door metal detector. It divides the detection area into 18 independent vertical zones, each with a dedicated high‑brightness LED display. When a metal object is detected, the corresponding zone's LED illuminates, providing an instant visual indication of the object's approximate height.
What is the IP rating of the D270-18-IP65?
The D270-18-IP65 has an IP65 rating. Its ABS housing is dust‑tight and protected against water jets, making the detector suitable for outdoor installations where exposure to rain, dust, and moisture is a concern.
Can the D270-18-IP65 be integrated with other security systems?
Yes, the metal detector gate can be integrated with turnstiles, flap barriers, boom barriers, CCTV cameras, and ERP platforms such as Spine, GreytHR, HROne, Zoho, Candle, Saral, and Oracle. Optional IoT boards can also be added to physically block unauthorised entry.
What is the typical detection capability of this metal detector door?
The eSSL D270-18-IP65 can detect ferrous metals as small as 75 grams, depending on the item's composition and placement.
