eSSL-Access-8004 – 4‑Door Multi Door Access Control System

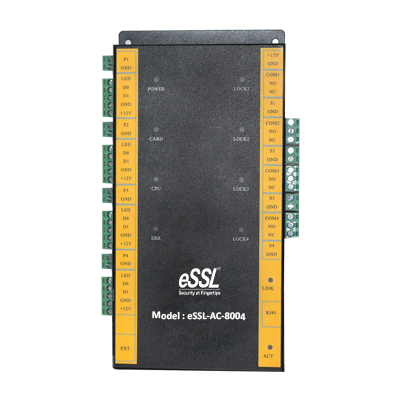

The eSSL-Access-8004 multi door access control system is a compact, high‑performance IP controller designed for 4 doors. It combines 20,000 card capacity, 100,000 event logs, dual‑door management, advanced anti‑passback and interlock, and real‑time PC monitoring – making it the ideal choice for offices, manufacturing facilities, residential towers and institutional campuses.
The eSSL-Access-8004 forms the core of a robust multi door access control infrastructure for mid‑sized and large premises. By connecting up to four Wiegand 26/34 readers, it gives you full two‑way access control while logging every event from a -40°C to +70°C operating range. With 256 time zones, 256 access levels, anti‑passback, interlock, multi‑card opening and optional fire alarm linkage, this 4‑door controller offers the kind of advanced security normally found in much larger access control systems.
🔑 Core Multi Door Access Control Capabilities
✅ 4‑Door Control with Flexible Modes
Control up to 4 doors. Configure each door as “entry with card, exit with button” or “entry with card, exit with card” – the choice is yours.
Control up to 4 doors. Configure each door as “entry with card, exit with button” or “entry with card, exit with card” – the choice is yours.
✅ 20,000 Cardholders / 100,000 Event Logs
High capacity for both users and transaction storage, making the eSSL-Access-8004 perfect for busy environments such as office towers and factory floors.
High capacity for both users and transaction storage, making the eSSL-Access-8004 perfect for busy environments such as office towers and factory floors.
✅ TCP/IP 10/100 Adaptive + RS‑485
Real‑time communication, remote door management and instant event uploads. Works flawlessly with your existing Ethernet infrastructure.
Real‑time communication, remote door management and instant event uploads. Works flawlessly with your existing Ethernet infrastructure.
✅ 256 Time Zones / 256 Access Levels
Fine‑grained permission control. Define exactly who can access which door and during what hours – down to the minute.
Fine‑grained permission control. Define exactly who can access which door and during what hours – down to the minute.
✅ Anti‑passback & Interlock
Prevent tailgating and enforce “one‑card‑one‑entry” rules. Interlock ensures that a second door cannot be opened while the first one is open – essential for high‑security zones.
Prevent tailgating and enforce “one‑card‑one‑entry” rules. Interlock ensures that a second door cannot be opened while the first one is open – essential for high‑security zones.
✅ Multi‑Card Opening & Adjustable Door‑Relay Delay
Require multiple cards to be presented simultaneously for sensitive areas. Unlocking delay is configurable from 1 to 600 seconds.
Require multiple cards to be presented simultaneously for sensitive areas. Unlocking delay is configurable from 1 to 600 seconds.
✅ Power Interruption Protection
High‑speed memory ensures that all card data and event logs are retained indefinitely, even when power is lost.
High‑speed memory ensures that all card data and event logs are retained indefinitely, even when power is lost.
✅ Optional Fire / Alarm Linkage
Connect directly to building fire alarm systems. Upon an alarm signal, the controller can be configured to release all locks for safe evacuation.
Connect directly to building fire alarm systems. Upon an alarm signal, the controller can be configured to release all locks for safe evacuation.
📊 Technical Specifications – eSSL-Access-8004
| Card Capacity | 20,000 users | |||
|---|---|---|---|---|
| Event Buffer | 100,000 logs | |||
| Communication | TCP/IP 10M/100M adaptive & RS‑485 | |||
| Reader Input Format | Wiegand 26/34 bit | |||
| Card Readers Supported | 4 | |||
| Door Control Outputs (relay) | 4 (for maglocks, strikes, actuators) | |||
| PCB Board Size | 21.9 × 12.2 × 3.4 cm | |||
| Controller Case Size (metal enclosure) | 273 × 228 × 65 mm | |||
| Power Supply Input | 12V DC @ 4‑7A | |||
| Circuit Board Power Consumption | < 200mA | Adjustable Unlocking Delay | 1 – 600 seconds (configurable per door) | |
| Operating Temperature | -40°C to +70°C | |||
| Operating Humidity | 10% – 90% RH (non‑condensing) | |||
| Advanced Features | 256 time zones, 256 access levels, anti‑passback, interlock, multi‑card opening, remote door opening & real‑time monitoring | |||
| Power Interruption Protection | High‑speed memory retains all records | |||
| Software Support | eSSL Professional Door Control Software (MS Access / MS SQL database) | |||
| Fire / Alarm Linkage | Optional (external input) |
💻 eSSL Professional Door Control Software
Centralised management
Configure access rights, time zones and holidays from a single PC across your entire multi door access control network.
Configure access rights, time zones and holidays from a single PC across your entire multi door access control network.
Real‑time monitoring & report generation
View live door status, monitor access events as they happen, and generate audit reports (PDF, Excel, CSV).
View live door status, monitor access events as they happen, and generate audit reports (PDF, Excel, CSV).
MS Access / MS SQL database
Choose the database that fits your organisation – light‑weight MS Access for smaller sites or scalable MS SQL for larger deployments.
Choose the database that fits your organisation – light‑weight MS Access for smaller sites or scalable MS SQL for larger deployments.
Remote door control
Open or close a door directly from the software – ideal for managing visitor access from a security office.
Open or close a door directly from the software – ideal for managing visitor access from a security office.
🏢 Where to deploy the eSSL-Access-8004 multi door access control system
🏢 Corporate offices & IT parks
Secure executive suites, server rooms and HR departments while managing employee entry with 256 time zones.
Secure executive suites, server rooms and HR departments while managing employee entry with 256 time zones.
🏭 Manufacturing & industrial facilities
Control access to production floors, tool cribs and material storage. Interlock prevents unauthorised movement between zones.
Control access to production floors, tool cribs and material storage. Interlock prevents unauthorised movement between zones.
🏘️ Residential buildings & gated communities
Enable keyless entry for residents at main gates, parking lifts and common areas – all from a single controller.
Enable keyless entry for residents at main gates, parking lifts and common areas – all from a single controller.
🏫 Educational institutions
Restrict access to laboratories, exam halls, libraries and faculty offices; logs double as attendance records for staff.
Restrict access to laboratories, exam halls, libraries and faculty offices; logs double as attendance records for staff.
🌟 Why choose eSSL Pune as your multi door access control partner?
Genuine eSSL hardware
We supply factory‑fresh eSSL-Access-8004 boards and accessories, fully compliant with eSSL Professional Door Control Software.
We supply factory‑fresh eSSL-Access-8004 boards and accessories, fully compliant with eSSL Professional Door Control Software.
Expert technical support & on‑site installation
Our Pune‑based engineers handle wiring, reader integration, software setup and end‑user training.
Our Pune‑based engineers handle wiring, reader integration, software setup and end‑user training.
Integration with HRMS & payroll systems
Export logs to Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, Oracle and other business platforms – unify physical security with workforce management.
Export logs to Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, Oracle and other business platforms – unify physical security with workforce management.
Competitive pricing & extended warranty
Best‑in‑class rates for the eSSL-Access-8004 controller, plus optional AMC plans for worry‑free maintenance.
Best‑in‑class rates for the eSSL-Access-8004 controller, plus optional AMC plans for worry‑free maintenance.
❓ Frequently Asked Questions – Multi Door Access Control
What is the eSSL-Access-8004 multi door access control system?
The eSSL-Access-8004 is a 4‑door access controller that acts as the core of a powerful multi door access control system. It supports 20,000 cardholders, 100,000 event logs, TCP/IP and Wiegand readers, and advanced features, including anti‑passback, interlock and multi‑card opening.
How many card readers can the eSSL-Access-8004 support?
The controller supports up to 4 Wiegand 26/34‑bit readers, allowing secure, two‑way access control for up to 4 doors.
What software is used to manage the eSSL-Access-8004?
The eSSL-Access-8004 is fully managed by eSSL Professional Door Control Software with database options MS Access or MS SQL. Administrators can configure access rules, time zones, monitor events in real time, generate reports and manage remote door opening.
What are the key security features of the eSSL-Access-8004?
The eSSL-Access-8004 includes 256 time zones, 256 access levels, anti‑passback, interlock, multi‑card opening, adjustable door‑open delay (1‑600 seconds) and optional fire/alarm linkage. All records are retained via high‑speed memory even during a power interruption.
Is the eSSL-Access-8004 suitable for outdoor installations?
Yes. The eSSL-Access-8004 operates reliably in extreme temperatures from -40 °C to 70 °C, making it an ideal multi door access control system for both indoor and outdoor environments.
