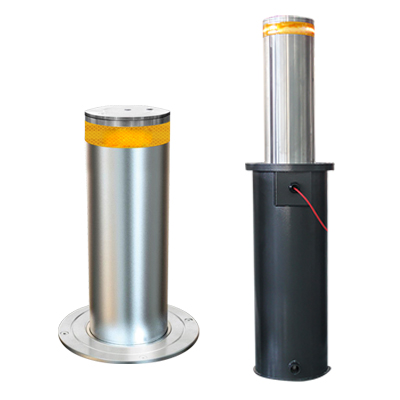

eSSL HB‑426 – Hydraulic Rising Security Bollard
The eSSL HB‑426 security bollard is a heavy‑duty, fully automatic hydraulic rising bollard designed for perimeter protection at high‑security entry points. Built to withstand 50‑tonne vehicle loads, IP68‑rated for all‑weather performance, and integrated with the HBC‑600 control unit – this is the rising bollard solution for government facilities, corporate campuses, commercial complexes and sensitive infrastructure.
The eSSL HB‑426 rising bollard combines advanced electromechanical & hydraulic integration with a supremely robust physical structure. The 304 stainless steel column (standard 600 mm, customisable up to 1000 mm) and the Q235 steel foundation box ensure years of reliable service even under constant heavy traffic. Whether you need a standalone security bollard or a fully networked rising bollard system, the HB‑426 delivers the performance that high‑security sites demand.
🔑 Key Features – Heavy‑Duty Rising Bollard
✅ 50‑Tonne Load Capacity
Withstands maximum passing pressure of 50 tonnes – perfect for stopping heavy unauthorised vehicles and protecting perimeters.
Withstands maximum passing pressure of 50 tonnes – perfect for stopping heavy unauthorised vehicles and protecting perimeters.
✅ IP68 Weatherproof Construction
Fully dust‑tight and submersible. The rising bollard operates flawlessly in flood‑prone areas, extreme rain or dusty industrial zones.
Fully dust‑tight and submersible. The rising bollard operates flawlessly in flood‑prone areas, extreme rain or dusty industrial zones.
✅ Hydraulic & Electromechanical Drive
Fast 4‑second up/down cycle, supported by an optional battery emergency mode (<4 sec with battery).
Fast 4‑second up/down cycle, supported by an optional battery emergency mode (<4 sec with battery).
✅ 304 Stainless Steel Column
Standard 600 mm height (customisable 800‑1000mm), wall thickness 6/8/10 mm, corrosion‑resistant against harsh outdoor elements.
Standard 600 mm height (customisable 800‑1000mm), wall thickness 6/8/10 mm, corrosion‑resistant against harsh outdoor elements.
✅ HBC‑600 Intelligent Controller
Controls up to 6 bollards, supports remote control (≥50 m), manual button box, and system interfaces (ground‑sense coil, infrared sensor, TCP/IP).
Controls up to 6 bollards, supports remote control (≥50 m), manual button box, and system interfaces (ground‑sense coil, infrared sensor, TCP/IP).
✅ Exceptional Durability
Q235 steel foundation box, electrophoresis + plastic spraying anti‑corrosion process, and high‑visibility 3M reflective film + LED warning lights.
Q235 steel foundation box, electrophoresis + plastic spraying anti‑corrosion process, and high‑visibility 3M reflective film + LED warning lights.
📊 Technical Specifications – eSSL HB‑426 Rising Bollard
| Working Power Supply | AC 220V |
|---|---|
| Drive Mode | Electromechanical & Hydraulic Electric Integration |
| Working Temperature | -30°C to +55°C |
| Protection Class (Bollard) | IP68 (fully dust‑tight, submersible) |
| Running Speed (Full Cycle) | 4 seconds |
| Emergency Mode | Manual up/down or battery up/down (optional) |
| Maximum Thrust | 200 kg |
| Column Height (Standard) | 600 mm (customisable 800–1000 mm) |
| Cylinder Diameter | 220 mm (customisable 270 mm) |
| Column Wall Thickness | 6 mm / 8 mm / 10 mm |
| Cylinder Material | 304 Stainless Steel |
| Foundation Box Material | Q235 Steel |
| Anti‑Corrosion Process | Electrophoresis + Plastic Spraying |
| Maximum Passing Pressure | 50 T (50 tonnes) |
| Reflective Warning | 3M Reflective Film (50 mm wide) |
| Warning Light | LED lamp beads (standard), optional LED light strip + anti‑collision rubber coating |
⚙️ HBC‑600 Control Unit – Complete Command of Your Security Bollards
| Number of Bollards Controlled | Up to 6 units |
|---|---|
| Input Power / Output Voltage | AC 220V / DC 36V |
| Working Temperature | -30°C to +55°C |
| Protection Class (Controller) | IP54 (dust‑splash protected) |
| Remote Control Distance | ≥50 m |
| Control Modes | Remote control / manual button box / external access control systems |
| External Interfaces | Ground‑sense coil, infrared sensor, TCP/IP (for network integration) |
| Emergency Override | Manual up/down and battery up/down (optional) |
🏢 Where to Deploy the eSSL HB‑426 Rising Bollard
🏛️ Government & Defence Facilities
Ministries, military bases, courts, police stations – secure perimeters against vehicle‑borne threats using high‑strength rising bollards.
Ministries, military bases, courts, police stations – secure perimeters against vehicle‑borne threats using high‑strength rising bollards.
🏢 Corporate Campuses & IT Parks
Protect underground parking entrances, main gates and sensitive buildings with IP68 security bollards that work in all conditions.
Protect underground parking entrances, main gates and sensitive buildings with IP68 security bollards that work in all conditions.
🏨 Hotels & Commercial Complexes
Control hotel drop‑off zones, mall entry points and loading bays with a rising bollard that integrates seamlessly with access cards.
Control hotel drop‑off zones, mall entry points and loading bays with a rising bollard that integrates seamlessly with access cards.
🏥 Hospitals & Medical Campuses
Secure emergency vehicle lanes while allowing authorised ambulances to pass – reliable, fast hydraulics and manual override included.
Secure emergency vehicle lanes while allowing authorised ambulances to pass – reliable, fast hydraulics and manual override included.
🌟 Why Choose eSSL Pune as Your Security Bollard Partner?
Genuine eSSL Hardware
We supply factory‑fresh HB‑426 bollards and HBC‑600 controllers with full manufacturer warranty.
We supply factory‑fresh HB‑426 bollards and HBC‑600 controllers with full manufacturer warranty.
Expert Installation & Support
Our Pune‑based engineers handle foundation box placement, controller wiring, remote setup and integration with turnstiles / boom barriers.
Our Pune‑based engineers handle foundation box placement, controller wiring, remote setup and integration with turnstiles / boom barriers.
Seamless Access Control Integration
Connect the rising bollard to RFID readers, biometrics or existing ERP systems (Spine, GreytHR, HROne, Zoho, Candle, Saral, Oracle).
Connect the rising bollard to RFID readers, biometrics or existing ERP systems (Spine, GreytHR, HROne, Zoho, Candle, Saral, Oracle).
Competitive Pricing & AMC Options
Best‑in‑class rates for the HB‑426 security bollard, plus optional annual maintenance contracts for worry‑free operation.
Best‑in‑class rates for the HB‑426 security bollard, plus optional annual maintenance contracts for worry‑free operation.
❓ Frequently Asked Questions – Security Bollards & Rising Bollard Systems
What makes the eSSL HB‑426 a premium security bollard?
The eSSL HB‑426 combines fully submersible IP68 construction, a 50‑tonne load rating, a 4‑second hydraulic cycle and an IP54‑rated HBC‑600 controller. It includes anti‑corrosion treatment, programmable settings, and full integration with access control systems, making it a robust rising bollard for high‑security environments.
What is the maximum vehicle load the HB‑426 rising bollard can withstand?
The HB‑426 is rated for a maximum passing pressure of 50 tonnes, ensuring reliable protection against heavy trucks and unauthorised vehicles.
Is the HB‑426 security bollard weather‑proof and suitable for outdoor installation?
Yes. The bollard carries an IP68 protection rating (fully dust‑tight and submersible) and operates in temperatures from -30°C to +55°C. The control unit is IP54‑rated, making the complete system ideal for all outdoor environments.
What control options are available for the HB‑426 rising bollard?
The HB‑426 can be operated using the HBC‑600 controller via remote control (range ≥50 m), manual button box, or integrated with access control systems (ground‑sense coil, infrared sensor, TCP/IP). The emergency mode allows manual up/down operation in case of power failure.
