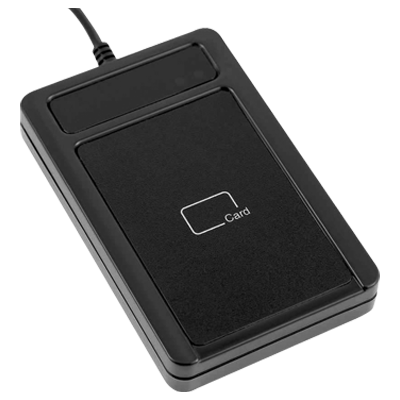

eSSL RFID Encoder and Updater – Professional Hotel Lock Card Programmer
The eSSL RFID Encoder and Updater is a desktop device designed to program, encode, and update MIFARE hotel key cards. It works seamlessly with the BIS Hotel management software to issue guest cards, master cards, housekeeping cards, and time‑limited credentials. With its USB interface and intuitive operation, the encoder is the essential tool for hotel front desks, security offices, and maintenance teams.
Request a Quote →
📌 What is the eSSL RFID Encoder and Updater?
The eSSL RFID Encoder and Updater is a standalone desktop device that reads and writes data to MIFARE 13.56MHz RFID cards. It is specifically designed for hotel environments to program guest room key cards, master keys, emergency keys, and service cards (housekeeping, maintenance). Connected via USB to a computer running the eSSL BIS Hotel management software, the encoder translates hotel reservation data into encrypted card data, which is then written onto blank MIFARE Classic S50 (1KB) or S70 (4KB) cards.
Once encoded, these cards work with eSSL hotel locks (HL‑100, HL‑200, and compatible models) to grant access permissions based on room number, validity period, and user type. The encoder can also re‑encode used cards, reducing operational costs and card waste. Built with robust electronics and a simple user‑friendly interface, it ensures reliable, high‑speed card programming even during peak check‑in hours.
⚙️ How the eSSL RFID Encoder Works together with BIS Hotel PMS
When a guest checks in at the front desk, the receptionist enters the guest details into the BIS Hotel software. The software sends the room number, guest name, stay dates, and access level to the RFID encoder via USB. The operator places a blank MIFARE card on the encoder‘s reading pad, and the device writes the encrypted access credentials onto the card. The guest then uses the same card to unlock their door and optionally to activate the room’s energy saving switch. The entire encoding process takes less than 2 seconds per card, allowing hotels to handle high guest volumes effortlessly.
🔑 Key Features – eSSL RFID Encoder and Updater
Compact, USB‑powered device dedicated to programming 13.56MHz MIFARE Classic cards (S50/S70). No external power adapter required – plug‑and‑play via USB.
Encodes a guest card in under 2 seconds. Supports batch card programming for group check‑ins and pre‑registration.
Works out‑of‑the‑box with eSSL‘s property management system. No complex driver installation – full compatibility guaranteed.
Programs guest cards, master cards (floor master, emergency master), housekeeping cards, maintenance cards, temporary visitor cards, and custom cards.
Uses AES‑128 encryption and MIFARE sector‑based authentication to prevent card cloning and unauthorised duplication – meets hotel security standards.
Reuse expired cards for new guests, reducing consumable costs and environmental impact. The encoder erases the previous data and writes fresh credentials.
Built‑in LED indicator and beeper confirm successful card reading, writing, or errors, providing clear operational status to front desk staff.
Robust ABS housing withstands daily front desk use. Small footprint (approx. 110 mm × 110 mm) fits easily on any reception counter.
📊 Technical Specifications – eSSL RFID Encoder
| Product Model | eSSL RFID Encoder and Updater |
|---|---|
| Supported Card Standards | MIFARE Classic 1K (S50), MIFARE Classic 4K (S70); ISO/IEC 14443A |
| Operating Frequency | 13.56 MHz |
| Read / Write Range | 0 – 5 cm (contactless) |
| Communication Interface | USB 2.0 (Type‑B) – HID keyboard emulation / serial emulation |
| Power Supply | 5 V DC via USB (bus‑powered) | Consumption | < 100 mA |
| Compatible Software | eSSL BIS Hotel Management Software (Windows) |
| Indicators | Dual‑colour LED (Red/Green), Buzzer |
| Supported OS | Windows 7, 8, 10, 11 (32/64‑bit) |
| Dimensions (L×W×H) | ~110 mm × 80 mm × 25 mm |
| Weight | ~120 g |
| Operating Temperature | -10°C to +50°C |
🌟 Top Benefits for Your Hotel Operations
Ultra‑fast encoding (≤2 seconds) ensures smooth, quick check‑ins, even during peak hours – enhancing guest satisfaction.
Re‑encode expired cards instead of buying new ones. Significant savings on consumables with no performance loss.
Encrypted card data and sector‑level keys prevent cloning. The encoder only works with authorised BIS Hotel software, adding an extra security layer.
Easily program master keys, floor keys, and time‑restricted service cards (e.g., housekeeping valid from 9 AM–5 PM). No manual key cutting or logbooks.
Plug‑and‑play USB connection; no network configuration required. Works with standard Windows PCs used at front desks.
Reduce plastic waste by reusing cards multiple times; minimise disposal of old cards and packaging.
✅ Why eSSL is the Right Choice for Your Hotel
eSSL provides a fully integrated solution: RFID encoders, hotel locks, energy saving switches, MIFARE cards (S50/S70), and BIS Hotel management software – all from one trusted partner. No compatibility worries.
Thousands of eSSL hotel locks and encoders installed across India and international properties.
Our Pune‑based team provides comprehensive training for front desk and engineering staff, along with warranty and AMC options.
Volume pricing for MIFARE cards combined with encoder packages makes the total cost of ownership highly competitive.
