eSSL Automatic Swing Barriers | High-Speed, ADA-Compliant Pedestrian Access Control Gates

What Are Automatic Swing Barrier Gates?

eSSL Automatic Swing Barriers are high-performance pedestrian access control gates designed to manage and secure foot traffic at entry and exit points of corporate offices, hotels, metro stations, airports, universities, gyms, and other high-traffic facilities. They serve as a sophisticated physical barrier that ensures only authorized personnel can pass.[reference:4][reference:5]

Unlike traditional turnstiles, our swing barriers utilize fast, silent, and reliable swinging arms or glass panels—made of durable acrylic or tempered glass—that pivot open on a vertical axis when access is granted. Once a credential is verified by an integrated reader (e.g., RFID card, fingerprint, or face recognition), the arms swing smoothly and quietly open, allowing one verified person to pass at a time. This process makes foot traffic smoother, more efficient, and more secure.[reference:6]

Key Features & Benefits of eSSL Swing Barriers

• High-Speed, High-Throughput Verification: With an adjustable throughput rate of 35 to 50 persons per minute, the swing arms open and close quickly (0.5s to 1.5s), minimizing wait times and keeping traffic flowing efficiently during peak hours.[reference:7][reference:8]
• ADA-Compliant Wide Passage Lanes: Features a standard passage width of 600mm, which can be configured up to 900mm. This wide-lane design makes it ADA-compliant and ideal for wheelchair users, people with luggage, strollers, or anyone requiring additional space.[reference:9][reference:10]
• Advanced Anti-Tailgating & Security: Equipped with a matrix of precision infrared sensors (6 pairs as standard), the system detects and prevents any unauthorized access, such as a second person attempting to "piggyback" on a single valid authentication. An alarm triggers if a tailgating attempt is detected.[reference:11][reference:12]
• Quiet, Reliable Brushless DC Motor Operation: Swing barriers are powered by a sophisticated brushless DC motor, ensuring silent, smooth, and low-wear operation. This design significantly reduces noise pollution and maintenance needs, with a proven Mean Cycles Between Failures (MCBF) of 5 million cycles.[reference:13][reference:14]
• Durable, High-Grade Construction: Built with a heavy-duty SUS304 stainless steel cabinet (Top cover 1.2mm, Body 0.9mm) and impact-resistant 8mm acrylic wings, eSSL swing barriers are designed to withstand heavy use and resist vandalism and corrosion.[reference:15][reference:16]
• Seamless System Integration: Our swing barriers integrate effortlessly with any standard access control system, including RFID card readers, QR code scanners, biometric fingerprint and face recognition systems. They support Wiegand, RS485, and TCP/IP protocols for universal compatibility.[reference:17]
• Fail-Safe & Emergency Mode: In the event of a power outage or fire alarm, the swing arms automatically open to provide an unimpeded passageway, ensuring safe and rapid evacuation in compliance with building safety codes.[reference:18][reference:19]

Swing Barrier vs. Flap Barrier: Which Is Right for You?

Understanding the key differences helps you choose the right solution for your facility's unique needs.

Both flap and swing barriers offer excellent security features. If speed and compactness are your priority, a flap barrier is ideal. If you need wider access, inclusive entry, or a premium look, the swing barrier is the way to go.[reference:26]

Technical Specifications (Model-Dependent)

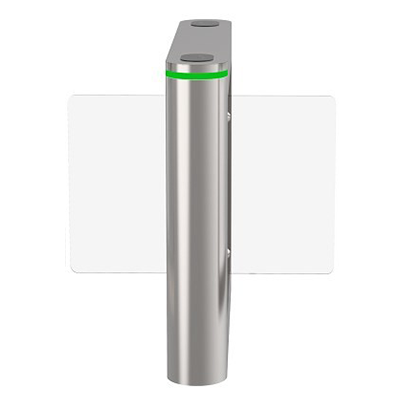

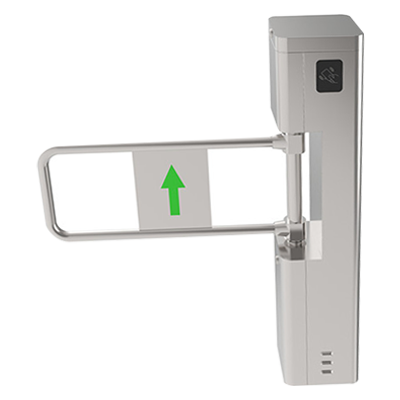

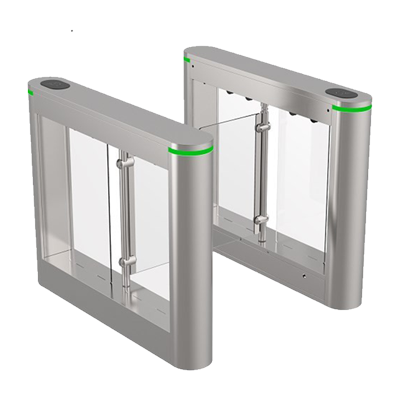

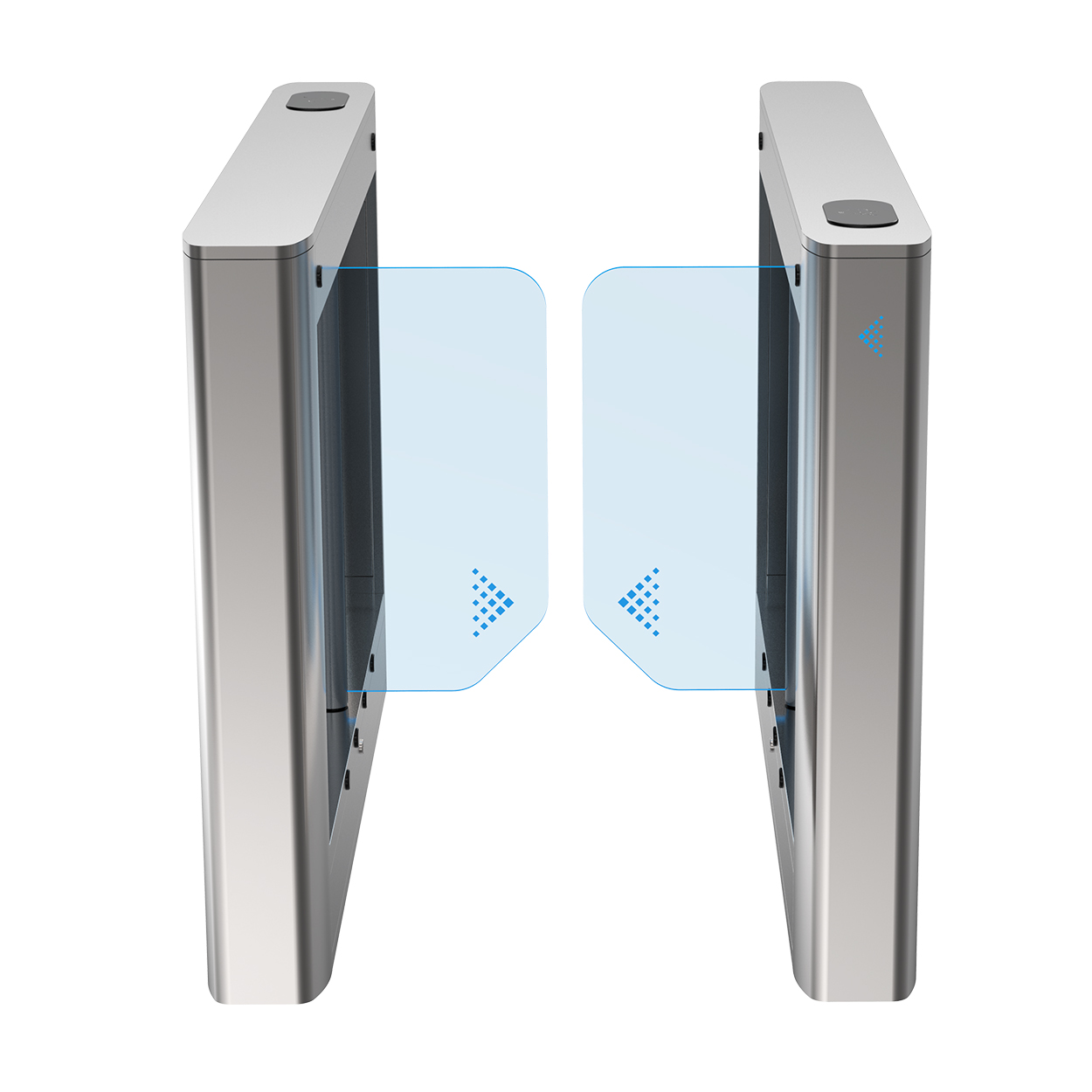

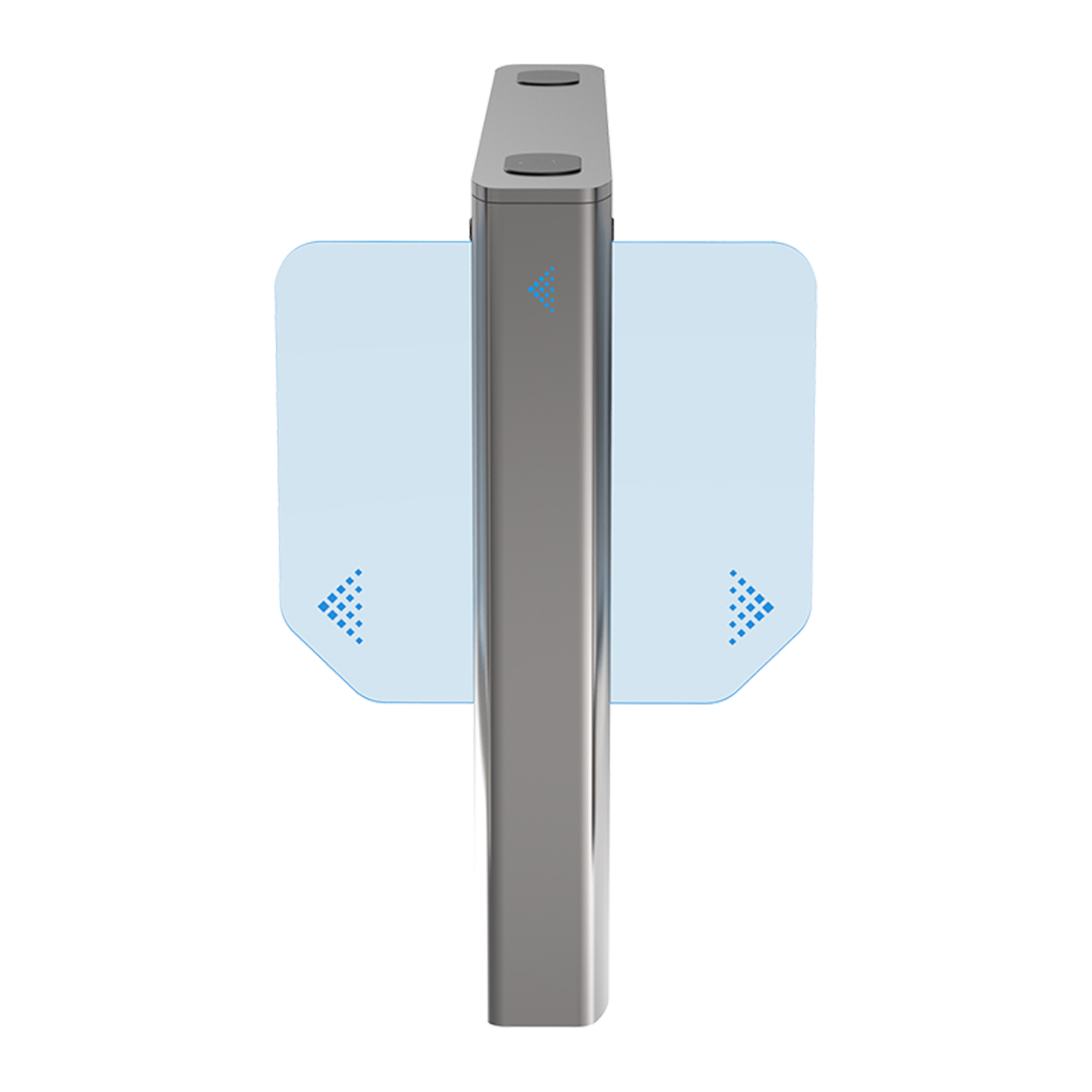

• Model Examples: eSSL SB-ES-3215, eSSL SB-ES-3216, eSSL SB-ES-3012, eSSL SB-SPL-310
• Dimensions (L*W*H): 1400*160*980mm (SB-ES-3216) | 1200*185*980mm (SB-ES-3012) | 200*200*980mm (SB-SPL-310)[reference:27][reference:28][reference:29]
• Passage Width (Max): 600mm to 900mm (configurable)[reference:30][reference:31]
• Throughput Rate: 35 to 50 persons per minute[reference:32]
• Barrier Material: 8mm clear acrylic / 10mm clear acrylic / Stainless steel frame[reference:33][reference:34][reference:35]
• Cabinet Material: Top cover 1.2mm + Body 0.9mm SUS304 stainless steel[reference:36]
• Power Supply: 100-240V AC / Operational Voltage: 24V DC[reference:37][reference:38]
• Motor Type: Brushless DC motor (Fengdun 90K 30W)[reference:39]
• Opening/Closing Speed: Adjustable from 0.5s to 1.5s / 0.2s for some models[reference:40][reference:41]
• Number of IR Sensors: 4 to 6+ pairs[reference:42][reference:43]
• Working Temperature: -25°C to +70°C[reference:44][reference:45]
• Working Humidity: ≤90% (non-condensing)[reference:46]
• MTBF (MCBF): 5,000,000 cycles[reference:47]
• IP Rating (Outdoor Models): IP54 (dust-protected and splash-resistant)[reference:48]
• Communication Interfaces: Wiegand, RS485, TCP/IP, Dry Contact[reference:49]

Industry & Facility Applications

eSSL swing barriers are a versatile pedestrian access control solution deployed across a wide range of environments:[reference:50][reference:51]

• Corporate Offices & IT Parks: The sleek, premium design provides a modern, welcoming entry experience while effectively managing employee and visitor access.
• Hotels & Luxury Hospitality: Maintains an elegant ambiance while preventing unauthorized access to VIP areas, executive floors, and back-of-house spaces.
• Airports & Metro Stations: Processes thousands of passengers quickly and securely, with wide lanes providing convenient access for passengers with luggage.
• Hospitals & Healthcare Facilities: The ADA-compliant wide lanes ensure easy access for patients in wheelchairs and staff with equipment, while restricting entry to sensitive areas.
• Universities & Educational Institutions: Securely controls access to campus libraries, dormitories, and key administrative buildings.
• Gyms, Clubs & Fitness Centers: Offers a stylish and secure method for managing member check-ins, preventing unauthorized entry, and maintaining a premium atmosphere.
• Museums & Exhibition Centers: Provides a sophisticated entry point that complements the venue's aesthetic while managing visitor flow and preventing ticket fraud.
