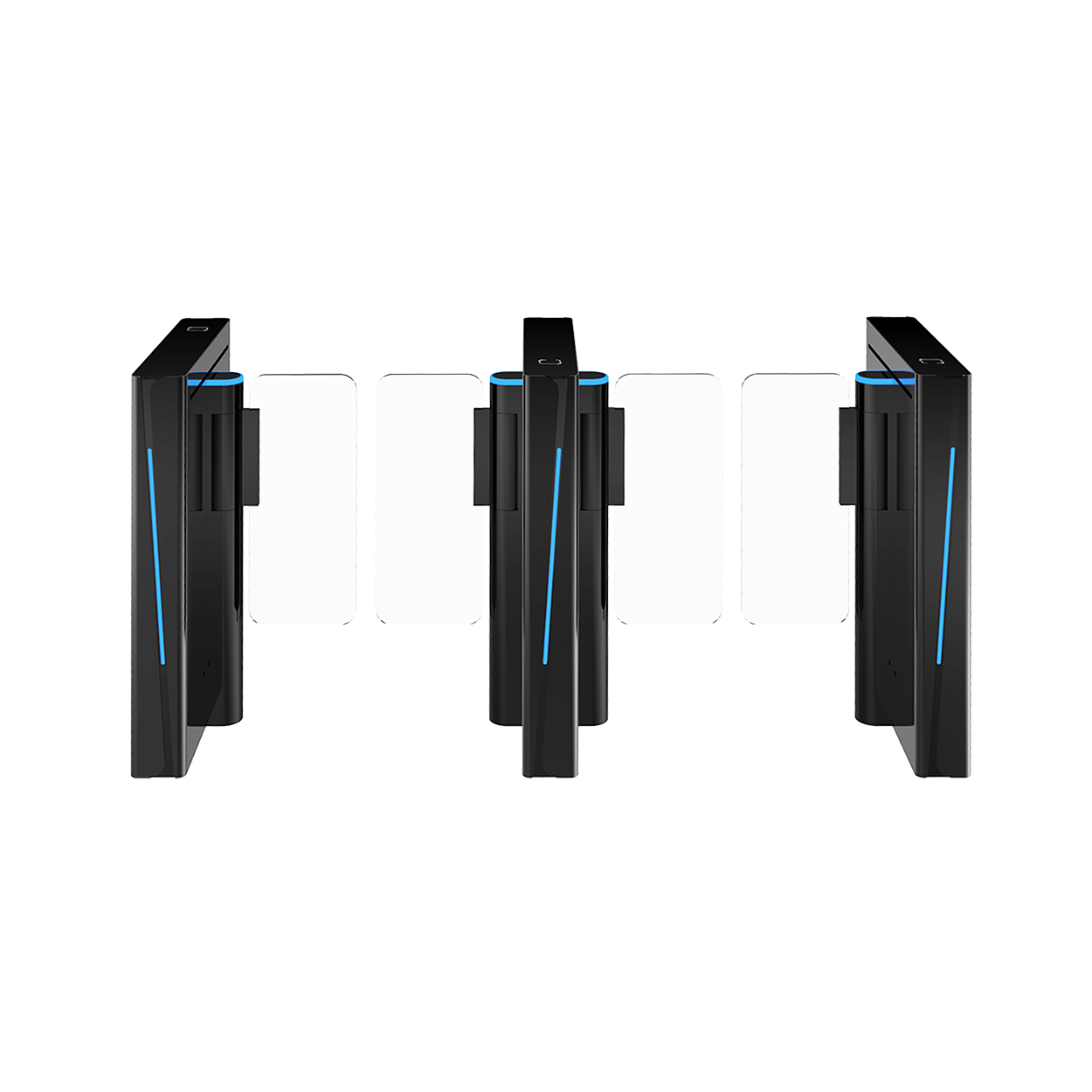

eSSL SB‑ES‑3218 – High Speed Single Lane Swing Barrier
The eSSL SB‑ES‑3218 swing barrier is a high‑speed pedestrian access control gate engineered for smooth, secure, and efficient entry management. With a brushed stainless steel cabinet, 8mm clear acrylic arms, configurable 600‑900mm passage width, and 6 pairs of infrared sensors, it delivers reliable performance for corporate offices, metro stations, airports, and commercial complexes.
The eSSL SB‑ES‑3218 is a robust single lane swing barrier designed for high‑frequency pedestrian access control. Built with a 304 brushed stainless steel cabinet (top thickness 3.0mm, body thickness 8.0mm) and 8mm clear acrylic swing arms, it combines exceptional durability with a modern, elegant appearance. Equipped with 6 pairs of high‑precision infrared sensors, the barrier reliably detects unauthorised tailgating and reverse passage, ensuring one valid credential grants access to exactly one person. The barrier achieves a throughput of 35–50 persons per minute, making it suitable for moderate to high‑traffic checkpoints. Its DC brushless motor drive and adjustable opening/closing speed (0.5s to 1.5s) provide quiet, efficient operation, and the wide operating temperature range (-20°C to +70°C) ensures reliability in diverse climates.
🔑 Key Features – eSSL SB‑ES‑3218 Swing Barrier Gate
Fast, adjustable opening and closing speed for smooth pedestrian flow and minimal wait times during peak hours.
Efficiently handles moderate to high‑traffic volumes, perfect for airports, metro stations, and corporate campuses.
High‑precision 6‑pair IR array for reliable anti‑tailgating, anti‑reverse pass, and anti‑clip detection, preventing multiple entries on a single credential.
Standard 600mm passage, optionally expandable to 900mm for ADA‑compliant wide‑lane accessibility and wheelchair use.
Top cover thickness 3.0mm, body thickness 8.0mm – highly corrosion‑resistant and built to withstand high‑traffic environments.
Impact‑resistant, transparent acrylic swing arms providing an elegant, unobtrusive aesthetic that complements any modern entrance.
Operates quietly with low maintenance; adjustable speed profiles and a service life of millions of cycles.
Doors automatically swing open on power failure or fire alarm, ensuring an unobstructed evacuation path in compliance with safety codes.
📊 Technical Specifications – eSSL SB‑ES‑3218 Single Lane Swing Barrier
| Product Model | eSSL SB‑ES‑3218 | |||||
|---|---|---|---|---|---|---|
| Product Size (L×W×H) | 600 mm × 130 mm × 980 mm | |||||
| Passage Width | 600 mm (standard); 900 mm (optional, ADA‑compliant) | |||||
| Cabinet Material | Top T=3.0mm / body T=8.0mm 304 brushed stainless steel plate | |||||
| Arm (Diaphragm) Material | 8 mm clear acrylic | |||||
| Drive Unit / Motor | DC brushless motor, standard speed gate movement | |||||
| Power Supply / Input Voltage | 24V 500W / AC100 V – 240 V, 50 Hz / 60 Hz | |||||
| Pass Rate (Throughput) | 35–50 persons/minute | |||||
| Open Speed (Adjustable) | 0.5 s / 1.5 s (configurable) | |||||
| Infrared Sensors | 6 pairs | |||||
| Communication Mode | RS485 / dry contact | |||||
| Pilot Lamp / Indicator | RGB light panel | |||||
| Noise Level | ≤ 65 dB | |||||
| Clutch Size | ф=80 mm | |||||
| Controls |
| Working Temperature / Humidity | -20 °C to +70 °C / ≤ 90 % (non‑condensing) |
|---|---|
| Protection Class | IP4X (enclosure sealed against objects ≥ 1 mm) |
| Environment | Indoor / sheltered outdoor |
⚙️ Advanced Security & Safety Features
The barrier's 6‑pair IR sensor array and logic enforce “one card, one passage,” preventing unauthorised following and reverse‑direction attempts.
Real‑time detection during opening and closing stops the arms if an object or person is detected, preventing injury or damage.
If the authorised user does not pass within the programmed time after authentication, the gate automatically restores to its locked state, preventing piggyback attempts.
Doors automatically open on power loss or external fire alarm, ensuring an unobstructed evacuation path in compliance with fire safety regulations.
🏢 Where to Deploy the eSSL SB‑ES‑3218 Swing Barrier Gate
Secure main lobbies, executive zones and server rooms. Integrates seamlessly with biometric, face recognition, or RFID readers.
High‑speed passenger and staff access control with 0.5‑1.5s open speed and 35‑50 persons/min throughput.
Elegant, quiet operation for staff entrances, back‑of‑house zones, and premium guest areas.
Enforce strict physical security perimeters with anti‑tailgating and anti‑reverse pass logic.
Manage access to libraries, research labs, sports centres and dormitory zones.
Durable stainless construction withstands industrial environments; integrates with attendance and time‑tracking systems.
🔌 Seamless Integration with Access Control & Biometric Systems
The SB‑ES‑3218 uses dry contact and RS485 communication, making it compatible with virtually any access control panel, biometric reader (fingerprint, face recognition), RFID card reader, or third‑party attendance system. When paired with eSSL’s AI Face series or Aiface Magnum terminals, the barrier automatically unlocks upon authorised identification, while also logging timestamps for attendance tracking. The system can be integrated with leading HR/ERP platforms:
- HRMS: Spine, GreytHR, HROne
- Payroll: Candle, Saral, Oracle
- CRM: Zoho, custom ERPs
🌟 Why Choose eSSL Pune as Your Swing Barrier Gate Partner?
We supply factory‑fresh SB‑ES‑3218 units with full manufacturer warranty – no grey market or counterfeit components.
Our engineers handle site surveys, foundation planning, power/network wiring, and integration with any access controller.
Integrate the swing barrier with turnstiles, boom barriers, CCTV, and attendance software for a unified security platform.
Best‑in‑class rates for the SB‑ES‑3218, plus optional AMC for sensor calibration, motor servicing, and firmware updates.
❓ Frequently Asked Questions – Swing Barrier Gate
Product Highlights
SB-ES-3218
Category:Swing Barriers
Features:
Size（L*W*H) : 600*130*980mm,
Material : Top T=3.0mm/ body T=8.0mm ,
Arm Material : 8mm clear acrylic,
Pass width : 600-900mm.
Specifications
Technical Specifications
- Size（L*W*H) : 600*130*980mm
- Material : Top T=3.0mm/ body T=8.0mm
- Arm Material : 8mm clear acrylic
- Pass width : 600-900mm
- Height From Ground (upper part) : 900mm
- Height From Ground (lower part) : 245mm
- Movement : standard speed gate movement
- Power supply : 24V 500W
- Input voltage : AC100V~240V,50/60HZ
- Drive Unit : DC Brushless motor
- Pass rate : 35-50 persons/minute
- Open Speed : 0.5s/1.5s
- Sensor pairs : 6 pairs
- Clutch size : ф=80mm
- Pilot lamp : RGB light
- Communication mode : RS485
- Controls : 1V2 Brushless controller
- Noise : ≤65dB
- Temperature : -20℃~+70℃
- Humidity : ≤90% No condensationli>
- IP : IP4X
- Environment : Indoor
Features
- Reasonable and reliable design, low noise, smooth operation and long service life
- With function of opening doors automatically under power-off¬ state to meet the need of fire-fighting passage
- With functions of anti-tail, anti-reverse pass and so on
- Card can be set "with memory" or "without memory" functions
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set
- With infrared anti-clip function (anti-clip when gate is open or running)
- Compatible with IC, ID card, scanning and face recognition, etc
- Two modes of operation are available: open or closed
- Various working modes are available, including two-way card reading and one-way card reading, etc.
