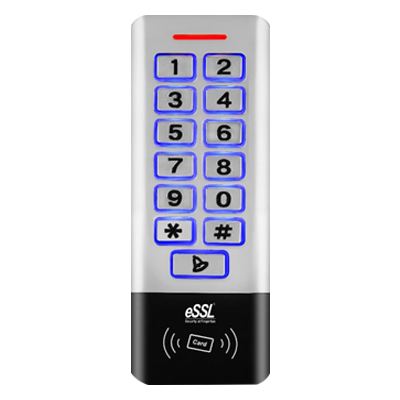

eSSL JS-34 – Standalone Access Control System | RFID & PIN Door Controller
The eSSL JS-34 is a compact, rugged standalone access control system designed for secure and efficient door entry management. Supporting 125kHz EM proximity cards and PIN code verification, it offers dual authentication modes for enhanced security, making it the perfect solution for offices, server rooms, residential buildings, and industrial sites. Its IP66 weatherproof metal casing ensures reliable indoor or outdoor operation.
📌 What is the eSSL JS-34?
The eSSL JS-34 is a standalone RFID access controller that combines a card reader and control panel in one unit. It eliminates the need for a separate controller, reducing installation costs and complexity. With a built‑in relay, it can directly control electric locks, magnetic locks, alarms, and exit buttons without any external hardware. The JS-34 supports up to 2,000 users (cards or PIN codes), making it an ideal choice for small to medium-sized premises. It supports three authentication modes: Card Only, PIN Only, or Card + PIN, allowing you to choose the ideal access method for your application.
📊 Technical Specifications – eSSL JS-34 (Standalone Access Controller)
| Product Model | eSSL JS-34 |
|---|---|
| Product Type | Standalone RFID Access Control System (Reader + Controller combined) |
| User / Card Capacity | 2,000 users (cards or PIN codes) |
| Card Type (RFID) | 125kHz EM Proximity Cards (compatible with standard EM cards and key fobs) |
| Authentication Modes | Card Only, PIN Only, Card + PIN (dual authentication) |
| Wiegand Interface | Wiegand 26‑bit Input / Output (supports Wiegand 34) – can connect as master controller or slave reader |
| Relay Output (Lock Control) | Built‑in relay for direct control of electric locks, magnetic locks, strike locks, alarms, and exit buttons; rated < 3 A |
| Door Opening Time | Adjustable 0‑99 seconds (remote opening for delivery or maintenance) |
| Reader Read Range | 5‑8 cm (depending on card type) |
| Backlit Keypad | Illuminated keypad for PIN entry and programming – works in low‑light conditions |
| Anti‑Vandal Construction | Metal case, anti‑vandal design, and IP66 weatherproof rating for outdoor use |
| Power Supply | DC 12 V ± 10% |
| Standby Current / Max Static Current | < 30 mA |
| Environmental Rating | IP66 weatherproof, dust‑tight, and resistant to powerful water jets |
| Operating Temperature | -45 °C to +60 °C |
| Operating Humidity | 10% to 90% RH (non‑condensing) |
| Short‑Circuit Protection | Yes |
| Dimensions (W × H × D) | ~
Specifications derived from eSSL Security product documentation and industry‑recognised technical data.
🔑 Key Features – Why Choose the eSSL JS-34
Combines RFID reader and door controller in one unit. Built‑in relay directly controls electric locks, magnetic locks, door strikes, alarms, and exit buttons – no external panel needed.
Supports up to 2,000 users via EM 125kHz cards and/or PIN codes. Choose from Card Only, PIN Only, or Card + PIN (dual‑factor) for enhanced security.
Rugged, anti‑vandal metal housing with IP66 rating – dust‑tight and resistant to powerful water jets. Designed to perform reliably in rain, dust, extreme temperatures (-45 °C to +60 °C), and high‑traffic environments.
WG26 I/O allows the JS‑34 to function as a master controller (standalone) or as a Wiegand reader connected to a larger access control panel. The Wiegand output can also feed data into time‑attendance or ERP systems.
Door‑open relay pulse duration can be programmed from 0 to 99 seconds – ideal for normal entry (“tap and push”) or unattended loading bays requiring a longer opening window. Remote opening function supported.
Illuminated keypad ensures easy programming and PIN entry, even in dimly lit corridors. Administrators can add/delete users, set door‑open times, and configure lockdown modes using simple on‑device commands.
🏢 Where the eSSL JS-34 Excels (Real‑World Applications)
Secure employee entrances, server rooms, and administrative areas. The 2,000‑user capacity easily supports small to medium enterprises.
Control access to main entrances, lift lobbies, and basement parking. Leverage Card or PIN‑only modes for residents, staff, and vendors.
The IP66 rating and wide temperature tolerance (-45 °C to +60 °C) make it ideal for factories, warehouses, and outdoor storage zones.
Secure laboratories, libraries, and administrative blocks on a school or college campus using card‑based access.
Integrated with boom barriers, the JS-34 can control vehicle entry for staff and visitors using RFID cards or PIN codes.
Pharmacy doors, medical record rooms, and ICUs gain reliable, standalone access control with dual‑factor (Card + PIN) configurations for higher‑security areas.
🌟 Why Choose the eSSL JS-34 for Access Control?
No separate controller, no dedicated PC, no software licensing – the JS‑34 works as a complete unit. This dramatically reduces installation and maintenance costs while delivering professional access control.
Wiegand output allows the JS‑34 to feed card data into eTimeTrackLite, third‑party access control panels, or leading ERP/HRMS platforms (Spine, GreytHR, HROne). You can combine door access data with attendance tracking if a biometric reader is deployed alongside.
The metal case and anti‑vandal design withstand heavy use in public, industrial, and outdoor settings, reducing replacement costs and downtime.
No complex software. All user management (add, delete, change access mode) can be performed directly from the keypad using administrator PINs, making routine management fast and intuitive.
🔌 Seamless Integration with ERP, HRMS & Payroll Systems
The eSSL JS-34 is more than a standalone door controller – its Wiegand output can feed card access events into eSSL‘s eTimeTrackLite software or any ERP/HRMS platform that accepts Wiegand input. Standard export formats (CSV, Excel) and API support allow easy integration with Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle. Our integration team can configure event logging, access records, and audit trails directly into your enterprise software, unifying physical security with workforce management without adding extra hardware costs.
