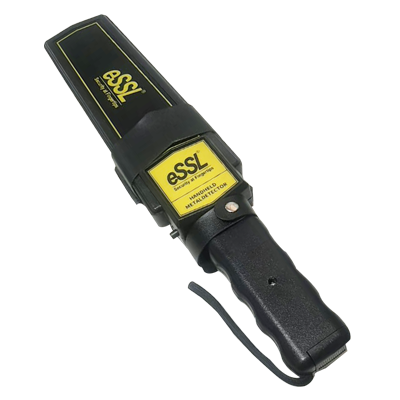

eSSL HM100180 – High Sensitivity Hand Metal Detector
The eSSL HM100180 hand metal detector is a rugged, high‑sensitivity security scanner designed for demanding professional screening environments. With adjustable sensitivity (0‑25 KHz), dual audible/vibration alarm modes, a high‑brightness LED indicator, and up to 2 meter drop resistance, the HM100180 delivers reliable performance at airports, schools, government buildings, corporate facilities, and public events.
The eSSL HM100180 is a high‑performance hand‑held metal detector built for continuous use in demanding security environments. Its self‑calibrating digital microprocessor technology and adjustable sensitivity settings allow security personnel to fine‑tune detection for different threat levels. The rugged, high‑impact ABS case is designed to withstand a free‑fall drop height of 2 meters without damage, protecting the internal electronics during daily handling and accidental drops. A large detection area ensures quick, thorough screening, while the dual alarm modes (audible beep and discreet vibration) adapt to any environment – from busy airport terminals to quiet courtrooms.
🔑 Key Features – eSSL HM100180 Hand Metal Detector
Provides flexible, fine‑tuned detection for a wide range of metals, enabling operators to adapt to different threat levels and environmental conditions.
Choose between a clear audible alert or a discreet vibration mode to suit any environment – from airport terminals to libraries, courts, and high‑profile events.
Red LED provides instant visual confirmation when metal is detected, ensuring clear feedback even in noisy or crowded environments.
Easy, one‑touch sensitivity adjustment allows operators to quickly adapt to different testing requirements without interrupting screening flow.
Rugged design withstands a free‑fall drop height of 2 meters without damage, ensuring long service life in demanding security roles. Built with high‑impact ABS case and reinforced coil compartment.
Weighing only 400 grams and measuring 415mm × 85mm × 45mm, the HM100180 reduces operator fatigue during extended screening shifts while covering a large detection area for fast scanning.
Powered by a standard 9V battery (6F22/15F8H) or optional rechargeable battery. When using the rechargeable battery, the detector can be plugged directly into the original charger for convenient charging.
Reliably performs in temperatures from -15°C to +55°C, making it suitable for both indoor and outdoor security operations.
📊 Technical Specifications – eSSL HM100180 Hand Metal Detector
| Product Model | eSSL HM100180 |
|---|---|
| Product Size (L × W × H) | 415 mm × 85 mm × 45 mm |
| Package Size (L × W × H) | 520 mm × 100 mm × 50 mm |
| Working Frequency | 0 – 25 KHz (adjustable) |
| Net Weight | 400 g |
| Power Supply | Standard 9V battery (6F22/15F8H) or optional rechargeable battery |
| Operating Temperature | -15°C to +55°C |
| Drop Resistance | Free‑fall drop height of 2 meters without damage |
| Detection Area | Large detection area for fast, thorough scanning |
Specifications derived from eSSL Security technical documentation and official product data.
📏 Detection Range – eSSL HM100180 Hand Metal Detector
| Object | Detection Distance (Min-Max) |
|---|---|
| Pin (small metal) | 25 – 70 mm |
| Type 64 Pistol | 0 – 350 mm |
| 6‑inch Dagger | 200 – 300 mm |
| 20 mm Steel Ball | 150 mm |
| One Rupee Coin | 120 – 180 mm |
| TF Card, Staples, 8‑pin Chip | 10 – 40 mm |
Detection distances are influenced by object composition, orientation, and selected sensitivity level.
⚙️ How the eSSL HM100180 Detection System Works
The coil inside the detector emits a low‑intensity electromagnetic field. When this field passes over a metallic object, the object's eddy currents disturb the field, triggering a response.
Digital microprocessor technology analyses the disturbance against the programmed sensitivity level, distinguishing between harmless items and genuine threats while reducing false alarms.
When a metal object is detected, the HM100180 activates a sharp audible tone and simultaneously illuminates the red LED alarm indicator, providing immediate feedback to the operator. In vibration mode, the device alerts silently.
Operators can instantly adjust the detector's sensitivity using the one‑touch button, allowing the device to be tuned to different environmental conditions and specific security protocols.
🏢 Where to Deploy the eSSL HM100180 Hand Metal Detector
Perform secondary screening at security checkpoints to verify walk‑through metal detector alarms. The lightweight design ensures operator comfort during long shifts.
Secure main lobbies, server rooms, and executive zones. The vibration mode maintains a quiet, professional environment.
Rapid, reliable screening of visitors, employees, and contractors at perimeter entry points.
Enhance campus safety at school and university entrances with a discreet, easy‑to‑use handheld scanner.
Screen guests and staff at lobbies, banquet halls, convention centres, and high‑profile events without causing disruption.
Prevent unauthorised removal of metal assets and reinforce compliance at factory gates and warehouse exits.
🌟 Why Choose eSSL Pune as Your Hand Metal Detector Partner?
We supply factory‑fresh HM100180 detectors with full manufacturer warranty – no grey market or counterfeit products.
Our Pune‑based engineers provide on‑site training, calibration services, and integration guidance for security teams.
Integrate the HM100180 with your wider security ecosystem including turnstiles, boom barriers, CCTV, and access control systems.
Best‑in‑class rates for the eSSL HM100180, plus optional annual maintenance contracts for battery replacement and device servicing.
