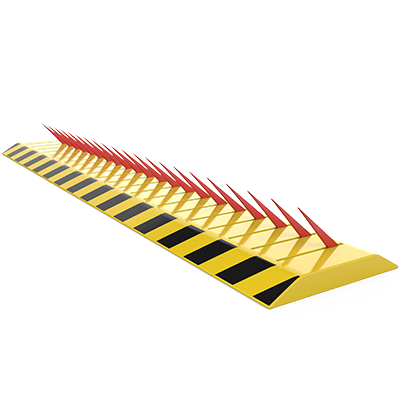

eSSL TK‑600 – 6-Meter Heavy-Duty Tyre Killer System
The eSSL TK‑600 is a heavy-duty electromechanical vehicle deterrent system designed to protect high-security perimeters. Featuring a 6-meter coverage width, 100-tonne load capacity, 150mm steel spikes, IP67 weatherproof rating, and wireless remote control, the TK-600 delivers uncompromising security for industrial facilities, commercial complexes, government installations, and critical infrastructure entry points.
The eSSL TK‑600 is a robust, remotely operated tyre killer built from A3 carbon steel with a 12mm body thickness. When raised, its 150mm spikes effectively stop unauthorized vehicles, while lying flat to allow authorized passage. With an extended 6-meter coverage length, the TK-600 is designed for wide entry lanes, industrial gateways, toll plazas, airports, and high-security perimeters. The system integrates IP67 protection, electromechanical drive, and remote control operation, ensuring long-term reliability in even the harshest outdoor environments.
🔑 Key Features – 6-Meter Heavy-Duty Tyre Killer
✅ 6-Meter Coverage for Wide Entries
At 6 meters, the TK-600 blocks standard and oversized entry lanes, industrial gates and toll plazas without needing multiple smaller units.
At 6 meters, the TK-600 blocks standard and oversized entry lanes, industrial gates and toll plazas without needing multiple smaller units.
✅ Unmatched 100-Tonne Load Capacity
More robust than the TK-400, this model stops heavy trucks and container carriers at high-security checkpoints, delivering true perimeter security.
More robust than the TK-400, this model stops heavy trucks and container carriers at high-security checkpoints, delivering true perimeter security.
✅ 150mm Spike Height / 10mm Spike Thickness
Aggressive 150mm spike profile that effectively disables vehicle tires upon impact, while the 10mm spike thickness ensures durability and penetration.
Aggressive 150mm spike profile that effectively disables vehicle tires upon impact, while the 10mm spike thickness ensures durability and penetration.
✅ IP67 Weatherproof Rating
Completely dust-tight and resistant to temporary submersion, ensuring reliable operation in flood-prone areas, heavy rain, and extreme dust conditions.
Completely dust-tight and resistant to temporary submersion, ensuring reliable operation in flood-prone areas, heavy rain, and extreme dust conditions.
✅ A3 Carbon Steel Construction (12mm Thick)
Constructed from high-strength A3 steel (carbon steel) with 12mm body thickness, offering superior impact resistance and long-term durability.
Constructed from high-strength A3 steel (carbon steel) with 12mm body thickness, offering superior impact resistance and long-term durability.
✅ Remote & Wired Control
Short-range wireless remote control with a range of up to 50 meters, plus wired control distance of up to 100 meters for secure override.
Short-range wireless remote control with a range of up to 50 meters, plus wired control distance of up to 100 meters for secure override.
✅ Extreme Temperature Range
Reliably operates from -40°C to +70°C, ensuring functionality in extreme climates from freezing winters to scorching summers.
Reliably operates from -40°C to +70°C, ensuring functionality in extreme climates from freezing winters to scorching summers.
✅ High-Visibility Safety Finish
Black and yellow painted finish with reflective strips ensures the barrier remains highly visible even at night, enhancing driver safety.
Black and yellow painted finish with reflective strips ensures the barrier remains highly visible even at night, enhancing driver safety.
📊 Technical Specifications – eSSL TK‑600 Tyre Killer
| Material | A3 Steel (Carbon Steel) with 12mm body thickness |
|---|---|
| Length | 6 meters of vehicle deterrent coverage |
| Width / Height | 520mm width / 70–90mm profile height |
| Overall Dimensions (L×W×H) | Approx. 6000 × 550 × 80 mm |
| Maximum Loading Weight | 100 tonnes (TK-400 is 80 tonnes; TK-600 is rated higher) |
| Spike Height / Spike Thickness | 150mm / 10mm |
| Drive Mode | Electromechanical |
| IP (Ingress Protection) Rating | IP67 |
| Surface Treatment | Paint with highly reflective strip |
| Colour Scheme | Black and yellow (high visibility) |
| Working Environment Temperature | -40°C to +70°C |
| Control Mode | Short-range wireless remote control / drive-by-wire |
| Wired Control Distance | ≤100 meters |
| Wireless Remote Range | ≤50 meters |
⚙️ How the eSSL TK‑600 Electromechanical Tyre Killer Works
⚡ Electromechanical Actuation
The TK-600 uses a reliable electromechanical drive system to raise or lower the steel spikes. This design reduces maintenance compared to hydraulic alternatives while providing consistent, dependable performance.
The TK-600 uses a reliable electromechanical drive system to raise or lower the steel spikes. This design reduces maintenance compared to hydraulic alternatives while providing consistent, dependable performance.
🎮 Remote & Wired Control
Authorised personnel can raise or lower the barrier via the included wireless remote (up to 50 meters range) or via a hardwired control panel (up to 100 meters).
Authorised personnel can raise or lower the barrier via the included wireless remote (up to 50 meters range) or via a hardwired control panel (up to 100 meters).
🛡️ Fail‑Safe Operation
In case of power loss or system failure, the spikes can be manually lowered or raised, ensuring continued security or safe passage as needed.
In case of power loss or system failure, the spikes can be manually lowered or raised, ensuring continued security or safe passage as needed.
🔌 System Integration Ready
The TK-600 easily integrates with access control systems, loop detectors, boom barriers, ANPR cameras, intercoms, and CCTV for a fully automated vehicle entry management solution.
The TK-600 easily integrates with access control systems, loop detectors, boom barriers, ANPR cameras, intercoms, and CCTV for a fully automated vehicle entry management solution.
🏢 Where to Deploy the eSSL TK‑600 Tyre Killer
🏭 Industrial Facilities & Manufacturing Plants
Prevent unauthorised vehicle entry to sensitive production zones, restricted storage areas, and heavy vehicle checkpoints.
Prevent unauthorised vehicle entry to sensitive production zones, restricted storage areas, and heavy vehicle checkpoints.
✈️ Airports & Seaports
Secure access-controlled zones, cargo areas, and restricted perimeters against vehicle intrusions.
Secure access-controlled zones, cargo areas, and restricted perimeters against vehicle intrusions.
🏛️ Government & Defence Installations
High-security perimeter control for military bases, embassies, data centres, and critical infrastructure facilities.
High-security perimeter control for military bases, embassies, data centres, and critical infrastructure facilities.
🛣️ Toll Plazas & Intersection Safety
Prevent unauthorised U-turns, wrong-way driving, and toll evasion. The black-yellow reflective finish ensures high visibility even at night.
Prevent unauthorised U-turns, wrong-way driving, and toll evasion. The black-yellow reflective finish ensures high visibility even at night.
🏢 Commercial Complexes & Shopping Malls
Control access to service yards, loading docks, and secure parking levels while allowing emergency vehicles to pass.
Control access to service yards, loading docks, and secure parking levels while allowing emergency vehicles to pass.
🏨 Hotels & Resorts
Manage vehicle access to underground parking, VIP areas, and service entrances with reliable perimeter security.
Manage vehicle access to underground parking, VIP areas, and service entrances with reliable perimeter security.
🌟 Why Choose eSSL Pune as Your Tyre Killer Partner?
Genuine eSSL Hardware
We supply factory‑fresh TK-600 units with full manufacturer warranty and compliance with eSSL security standards.
We supply factory‑fresh TK-600 units with full manufacturer warranty and compliance with eSSL security standards.
Expert Installation & Support
Our Pune‑based engineers handle pit preparation, concrete reinforcement, wiring, remote control synchronisation, and integration with existing systems.
Our Pune‑based engineers handle pit preparation, concrete reinforcement, wiring, remote control synchronisation, and integration with existing systems.
Seamless Access Control Integration
Integrate the TK-600 with boom barriers, RFID readers, biometric systems, number plate recognition systems and access gates for automated vehicle access.
Integrate the TK-600 with boom barriers, RFID readers, biometric systems, number plate recognition systems and access gates for automated vehicle access.
Competitive Pricing & AMC Options
Best‑in‑class rates for the eSSL TK‑600, plus optional annual maintenance contracts for ongoing support and peace of mind.
Best‑in‑class rates for the eSSL TK‑600, plus optional annual maintenance contracts for ongoing support and peace of mind.
🔌 Seamless Integration with ERP, HRMS & Access Control Systems
The eSSL TK-600 can be integrated with a wide range of business and security systems, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle. Our experts can help you configure event logging, vehicle access records, and audit trails directly into your existing ERP platform, unifying physical security with workforce management.
❓ Frequently Asked Questions – Tyre Killer Systems
What is the eSSL TK-600 Tyre Killer?
The eSSL TK-600 is a heavy-duty electromechanical tyre killer designed for high-security entry and exit points. Constructed from A3 carbon steel with a 100-tonne load capacity, 150mm spikes, 6-meter coverage width, IP67 weatherproof rating, and remote control operation.
How many meters of coverage does the TK-600 provide?
The eSSL TK-600 provides 6 meters of vehicle deterrent coverage, making it suitable for wide entry lanes, industrial gateways, and high-security applications.
What is the maximum load capacity of the eSSL TK-600?
The eSSL TK-600 is engineered to withstand a maximum load of 100 tonnes, making it capable of stopping heavy trucks, container carriers, and other unauthorized heavy vehicles at high-security checkpoints.
Is the TK-600 suitable for outdoor installation in harsh climates?
Yes. The TK-600 features an IP67 ingress protection rating, offering complete dust-tight protection and resistance to temporary submersion. It operates reliably in temperatures from -40°C to +70°C, making it ideal for all outdoor climates.
How do I control the TK-600 Tyre Killer?
The system is operated via short-range wireless remote control or drive-by-wire. The wired control distance is up to 100 meters, while the remote control range is within 50 meters.
What is the height of the spikes when deployed?
The spikes deploy to a height of 150mm with a spike thickness of 10mm, providing an effective barrier against unauthorized vehicle tires.
