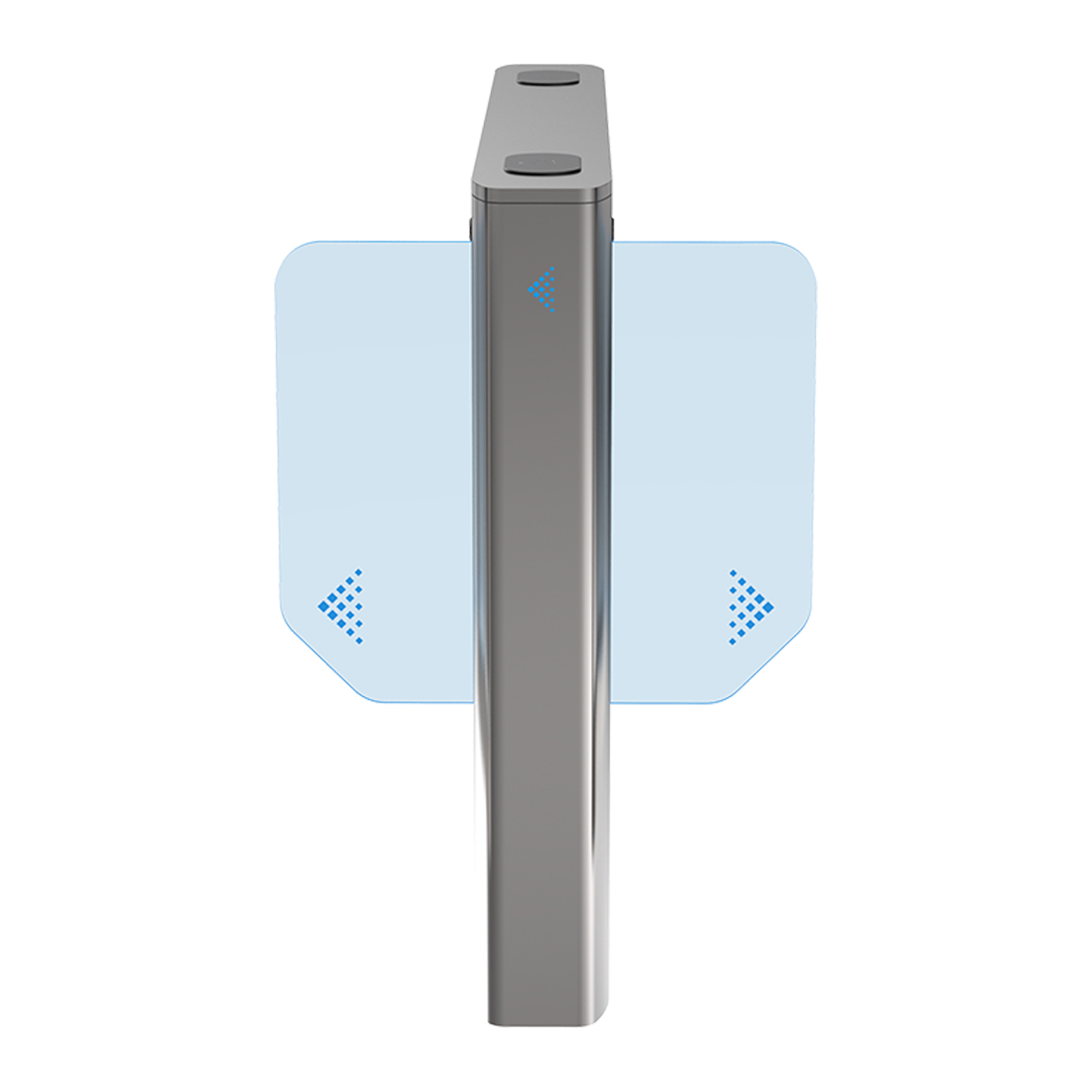

eSSL SB‑ES‑3216‑2 – Multi Lane Swing Barrier Gate
The eSSL SB‑ES‑3216‑2 Multi Lane Swing Barrier is a high‑speed pedestrian access control gate engineered for high‑traffic environments. With a brushed 304 stainless steel cabinet, 8mm/10mm acrylic arms, adjustability from 600‑900mm passage width, and 6 pairs of IR sensors per lane, it delivers reliable security and smooth passage throughput – up to 50 persons/minute in open mode. Designed for corporate towers, metro stations, airports, and large commercial complexes.
The eSSL SB‑ES‑3216‑2 is a multi‑lane pedestrian swing barrier engineered for smooth, quiet, and fast operation. Built with a 304 grade stainless steel cabinet (1.2mm top cover, 0.9mm body) and 8mm clear acrylic wings, it provides a modern, minimalist appearance while withstanding years of high‑frequency use. A brushless DC motor (Fengdun 90K, 30W) delivers adjustable opening/closing speeds from 0.5s to 1.5s, achieving a pass rate up to 50 persons/min in open mode, and 35 persons/min in standard closed mode. The swing barrier includes advanced safety features like anti‑tailgating, anti‑reverse pass, infrared anti‑clip protection, and automatic fire‑fighter opening on power failure to meet emergency evacuation requirements.
🔑 Key Features – SB‑ES‑3216‑2 Multi Lane Swing Barrier
✅ Multi‑Lane Scalability
The SB‑ES‑3216‑2 supports multi‑lane installations. A single controller can manage two or more lanes simultaneously, making it perfect for high‑traffic facilities where a single lane would create a bottleneck.
The SB‑ES‑3216‑2 supports multi‑lane installations. A single controller can manage two or more lanes simultaneously, making it perfect for high‑traffic facilities where a single lane would create a bottleneck.
✅ 304 Stainless Steel Cabinet
Top cover 1.2mm, body 0.9mm, 304 brushed stainless steel plate ensures long‑term corrosion resistance and durability even in high‑traffic settings.
Top cover 1.2mm, body 0.9mm, 304 brushed stainless steel plate ensures long‑term corrosion resistance and durability even in high‑traffic settings.
✅ 8mm / 10mm Acrylic Wings
Clear, impact‑resistant 8mm thick acrylic wings (baffle material 10mm optional) provide an elegant, modern look while maintaining structural integrity.
Clear, impact‑resistant 8mm thick acrylic wings (baffle material 10mm optional) provide an elegant, modern look while maintaining structural integrity.
✅ Adjustable Passage Width (600mm–900mm)
Configurable standard 600mm to wide 900mm passage width, providing flexibility and ADA‑compliant access for wheelchair users.
Configurable standard 600mm to wide 900mm passage width, providing flexibility and ADA‑compliant access for wheelchair users.
✅ High‑Speed Fengdun DC Brushless Motor
Fengdun DC brushless 90K 30W motor – 24V with temperature protection, offering quiet, maintenance‑free operation and adjustable opening/closing speed from 0.5s to 1.5s.
Fengdun DC brushless 90K 30W motor – 24V with temperature protection, offering quiet, maintenance‑free operation and adjustable opening/closing speed from 0.5s to 1.5s.
✅ 6 Pairs of Infrared Sensors Per Lane
A dense 6‑pair IR array for precise detection, anti‑clip, anti‑tailgating and anti‑reverse passage logic, preventing multiple entries on a single credential.
A dense 6‑pair IR array for precise detection, anti‑clip, anti‑tailgating and anti‑reverse passage logic, preventing multiple entries on a single credential.
✅ Pass Rate Up to 50 Persons/Minute
Open mode: ≤50 persons/min; normally closed: ≤35 persons/min – efficiently handles peak‑hour traffic while preserving security.
Open mode: ≤50 persons/min; normally closed: ≤35 persons/min – efficiently handles peak‑hour traffic while preserving security.
✅ Dry Contact Communication
Standard dry contact interface makes the barrier compatible with virtually any access control panel, biometric terminal, card reader, or face recognition system.
Standard dry contact interface makes the barrier compatible with virtually any access control panel, biometric terminal, card reader, or face recognition system.
✅ Triple‑Color Light Panel + Light Strip
Visual status indicators for authorised passage, alert, and standby modes, giving operators immediate feedback on the gate‘s state.
Visual status indicators for authorised passage, alert, and standby modes, giving operators immediate feedback on the gate‘s state.
✅ Fire‑Fighter Automatic Opening
During power interruption or external fire alarm, the barrier automatically swings open to guarantee an unobstructed evacuation route, in full compliance with fire safety standards.
During power interruption or external fire alarm, the barrier automatically swings open to guarantee an unobstructed evacuation route, in full compliance with fire safety standards.
✅ Anti‑Tailgating + Anti‑Reverse Pass
Built‑in logic and the 6‑pair IR sensor array prevent tailgating (two people passing on one credential), as well as reverse passage, delivering true “one card, one passage” control.
Built‑in logic and the 6‑pair IR sensor array prevent tailgating (two people passing on one credential), as well as reverse passage, delivering true “one card, one passage” control.
✅ Automatic Reset Function
If the authorised user does not pass within the programmed time after authentication, the barrier automatically restores to the locked state, preventing piggyback attempts.
If the authorised user does not pass within the programmed time after authentication, the barrier automatically restores to the locked state, preventing piggyback attempts.
📊 Technical Specifications – eSSL SB‑ES‑3216‑2 Multi Lane Swing Barrier
| Product Model | eSSL SB‑ES‑3216‑2 (Multi Lane Swing Barrier) |
|---|---|
| Category | Swing Barrier |
| Overall Dimensions (L×W×H) | 1400 mm × 160 mm × 980 mm |
| Passage Width | 600 mm (standard) / 900 mm (optional, ADA‑compliant) |
| Fuselage (Cabinet) Material | Top cover 1.2mm, body 0.9mm 304 brushed stainless steel plate |
| Diaphragm (Arm) Material | 8 mm clear acrylic (Baffle material: 10 mm clear acrylic) |
| Movement / Drive Unit | Brushless swing brake integrated movement |
| Drive Motor | Fengdun DC brushless 90K 30W |
| Power Supply / Consumption | 24V 150W power supply; equipment consumption ≤55 W |
| Input Voltage | AC100 V – 240 V, 50 Hz / 60 Hz |
| Reaction Time / Speed | Adjustable opening/closing from 0.5 s to 1.5 s |
| Pass Rate (Throughput) | Open mode: ≤50 persons/min; Normal closed: ≤35 persons/min |
| Sensor Configuration | 6 pairs of infrared sensors per lane (anti‑tailgate, anti‑reverse, anti‑clip) |
| Pilot Lamp | Three‑colour light panel + three‑colour light strip |
| Communication Mode | Dry contact |
| Control Components | 12V brushless simplified board + electric control box + mesh board box |
| Operating Temperature | -20 °C to +70 °C |
| Relative Humidity | ≤ 90 % (non‑condensing) |
| Noise Level | ≤ 65 dB |
| Protection Class | IP4X |
⚙️ Operating Modes & Advanced Behaviours
Multiple Working Modes
Two‑way card reading (entry+exit), one‑way card reading with free exit, or one‑way with exit button – configurable to site policy.
Two‑way card reading (entry+exit), one‑way card reading with free exit, or one‑way with exit button – configurable to site policy.
Card Memory Control
Set to “with memory” (allows re‑entry after valid card while gate is open) or “without memory” (one card, one passage).
Set to “with memory” (allows re‑entry after valid card while gate is open) or “without memory” (one card, one passage).
Auto‑Reset & Pass Timeout
If user does not pass within the configured time after authentication, the gate automatically relocks.
If user does not pass within the configured time after authentication, the gate automatically relocks.
Fail‑Safe & Fire Interface
Doors automatically open on power loss or external fire alarm signal, ensuring an unobstructed evacuation path.
Doors automatically open on power loss or external fire alarm signal, ensuring an unobstructed evacuation path.
🏢 Where to Deploy the eSSL SB‑ES‑3216‑2 Multi Lane Swing Barrier
✈️ Airports & Metro Stations
Multi‑lane gate arrays combine security and high throughput for passenger boarding, staff entry, and baggage‑handling areas.
Multi‑lane gate arrays combine security and high throughput for passenger boarding, staff entry, and baggage‑handling areas.
🏢 Corporate Offices & IT Parks
Secure main lobbies, executive zones and server rooms while integrating with biometric readers, access control cards, or face recognition terminals.
Secure main lobbies, executive zones and server rooms while integrating with biometric readers, access control cards, or face recognition terminals.
🏨 Hotels & Hospitality Venues
Multi‑lane installations elegantly manage high‑volume foot traffic at hotel lobbies, convention centres, banquet halls, and staff entrances.
Multi‑lane installations elegantly manage high‑volume foot traffic at hotel lobbies, convention centres, banquet halls, and staff entrances.
🏛️ Government Buildings & Courts
Enforce strict physical security perimeters with dedicated anti‑tailgating and anti‑reverse pass logic to prevent unauthorised entry.
Enforce strict physical security perimeters with dedicated anti‑tailgating and anti‑reverse pass logic to prevent unauthorised entry.
🏫 Large Educational Campuses
Multi‑lane swing barriers efficiently handle concurrent flow during class change times at libraries, research labs and sport centres.
Multi‑lane swing barriers efficiently handle concurrent flow during class change times at libraries, research labs and sport centres.
🏭 Industrial & Manufacturing Facilities
Durable stainless construction withstands industrial environments; integrates with attendance and time‑tracking systems to produce labour‑cost reports.
Durable stainless construction withstands industrial environments; integrates with attendance and time‑tracking systems to produce labour‑cost reports.
🔌 Seamless Integration with Access Control & Biometric Systems
The SB‑ES‑3216‑2 uses standard dry contact communication, making it compatible with virtually any access control panel, biometric reader (fingerprint, face recognition), RFID card reader, or third‑party attendance system. When paired with eSSL’s AI Face series or Aiface Magnum terminals, the barrier automatically unlocks upon authorised identification, while also logging timestamps for attendance tracking. The system can be integrated with leading HR/ERP platforms:
- HRMS: Spine, GreytHR, HROne
- Payroll: Candle, Saral, Oracle
- CRM: Zoho, custom ERPs
For multi‑lane deployments, a single panel can manage several lanes with centralised control and monitoring, reducing hardware costs while maintaining independent lane operation.
🌟 Why Choose eSSL Pune as Your Swing Barrier Partner?
Genuine eSSL Hardware
We supply factory‑fresh SB‑ES‑3216‑2 units with full manufacturer warranty – no grey market or counterfeit components.
We supply factory‑fresh SB‑ES‑3216‑2 units with full manufacturer warranty – no grey market or counterfeit components.
Expert Installation & Support
Our engineers handle site surveys, foundation planning, power/network wiring, and integration with any access controller.
Our engineers handle site surveys, foundation planning, power/network wiring, and integration with any access controller.
Seamless Ecosystem Integration
Integrate the swing barrier with turnstiles, boom barriers, CCTV, and attendance software for a unified security platform.
Integrate the swing barrier with turnstiles, boom barriers, CCTV, and attendance software for a unified security platform.
Competitive Pricing & AMC Options
Best‑in‑class rates for the SB‑ES‑3216‑2, plus optional AMC for sensor calibration, motor servicing, and firmware updates.
Best‑in‑class rates for the SB‑ES‑3216‑2, plus optional AMC for sensor calibration, motor servicing, and firmware updates.
❓ Frequently Asked Questions – Multi Lane Swing Barrier
What is the difference between the SB‑ES‑3216‑2 multi‑lane swing barrier and a single‑lane version?
The SB‑ES‑3216‑2 is designed for multi‑lane configurations. It uses the same robust 304 stainless steel cabinet (1.2mm top cover, 0.9mm body) and 8mm/10mm acrylic arms, but a single controller can manage two or more lanes simultaneously. The multi‑lane version is ideal for high‑traffic areas where a single lane would become a bottleneck.
What is the maximum passage width of the SB‑ES‑3216‑2 swing barrier?
The swing barrier has a configurable passage width ranging from 600mm (standard) to 900mm (optional). The 900mm setting is ADA‑compliant and accessible for wheelchair users.
Is the SB‑ES‑3216‑2 compatible with third‑party access control systems?
Yes. The barrier uses standard dry contact communication and can be integrated with any access control panel, biometric reader, RFID card reader, face recognition terminal, or ERP/HRMS platform.
How many infrared sensors does the SB‑ES‑3216‑2 have per lane?
The SB‑ES‑3216‑2 features 6 pairs of infrared sensors per lane, enabling precise anti‑tailgating, anti‑reverse pass, and anti‑clip detection.
What safety mechanisms does the swing barrier offer?
The barrier is equipped with infrared anti‑clip sensors, anti‑reverse pass logic, anti‑tailgating detection, and a fire‑fighter automatic opening feature on power failure. An automatic reset function relocks the gate if passage does not occur within a set time.
