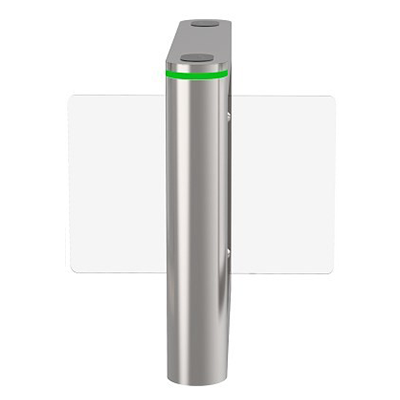

eSSL SB‑ES‑3012‑2 – Multi Lane Swing Barrier for High‑Traffic Access Control
The eSSL SB‑ES‑3012‑2 Multi Lane Swing Barrier is a high‑speed pedestrian access control gate engineered for high‑traffic environments. With a dual‑lane design, 0.2-second operation, 20–35 person/minute throughput, and 4 pairs of infrared sensors, it delivers seamless, secure access for airports, stadiums, corporate campuses, and transportation hubs.
The eSSL SB‑ES‑3012‑2 is a versatile multi‑lane swing barrier system designed to manage high volumes of pedestrian traffic while maintaining uncompromising security. Built with a brushed stainless steel body (top cover 1.2mm SUS304, body 1.0mm SUS304) and 10mm transparent acrylic arms, it offers a modern, elegant appearance that seamlessly integrates into any corporate, transportation, or commercial environment. Equipped with 4 pairs of high‑precision infrared sensors, the barrier reliably detects unauthorised tailgating and reverse passage, ensuring one valid credential grants access to exactly one person. In multi‑lane configurations, multiple barriers can be deployed side‑by‑side, each independently controlled while sharing a common controller, delivering the capacity required for peak‑hour foot traffic without bottlenecks.
🔑 Key Features – eSSL SB‑ES‑3012‑2 Multi Lane Swing Barrier
The SB‑ES‑3012‑2 supports multi‑lane configurations, allowing independent lanes to be deployed side‑by‑side, each managed by a single central controller for high‑capacity pedestrian flow.
Accommodates two‑way traffic with separate lanes, optimising throughput and minimising bottlenecks during peak hours.
Ultra‑fast unlocking and opening for smooth, high‑speed passage, minimising wait times during peak traffic periods.
High‑capacity design efficiently handles 20–35 persons per minute, making it ideal for airports, stadiums, and transit hubs.
Clear, impact‑resistant acrylic wings providing a modern, unobtrusive aesthetic while maintaining structural integrity.
Dense IR array for precise anti‑tailgating, anti‑reverse pass, and anti‑clip detection, preventing multiple entries on a single credential.
On power failure or fire alarm, the barrier automatically swings open to meet emergency evacuation requirements.
Quiet, reliable brushed motor drive with 5,000,000 cycles MCBF, ensuring long‑term durability in high‑usage environments.
📊 Technical Specifications – eSSL SB‑ES‑3012‑2 Swing Barrier
| Product Model | eSSL SB‑ES‑3012‑2 (Multi Lane Swing Barrier) |
|---|---|
| Product Size (L×W×H) | 1200 mm × 185 mm × 980 mm |
| Passage Width (per lane) | 600 mm (standard) |
| Net Weight (per barrier) | 65 kg |
| Cabinet Material | Top cover 1.2mm SUS304, body 1.0mm SUS304 |
| Arm (Wing) Material | 10 mm transparent acrylic |
| Drive / Motor | Brushed motor |
| Operating Time (Unlock + Open) | 0.2 seconds |
| Infrared Sensors | 4 pairs |
| Pass Rate (Throughput) | 20–35 persons/minute (depending on user flow) |
| Power Supply | 100–240 V (AC), 50–60 Hz |
| Operational Voltage | 24 V (DC) |
| Max Power Consumption | 35 W |
| MCBF (Mean Cycles Between Failures) | 5,000,000 cycles |
| Working Temperature | -25 °C to +70 °C |
| Communication Mode | Dry contact |
⚙️ Operating Modes & Advanced Behaviours
Two‑way card reading (entry+exit), one‑way card reading with free exit, or one‑way with exit button – configurable to site policy.
Set to “with memory” (allows re‑entry after valid card while gate is open) or “without memory” (one card, one passage).
If the authorised user does not pass within the configured time after authentication, the gate automatically restores to the locked state, preventing piggyback attempts.
Doors automatically open on power loss or external fire alarm signal, ensuring an unobstructed evacuation path.
🏢 Where to Deploy the eSSL SB‑ES‑3012‑2 Multi Lane Swing Barrier
Multi‑lane gate arrays combine security and high throughput for passenger boarding, staff entry, and baggage‑handling areas.
Secure main lobbies, executive zones and server rooms with multi‑lane configurations that adapt to peak‑hour flow.
Event access control with fast, high‑capacity lanes that minimise queues while ensuring strict entry validation.
Enforce strict physical security perimeters with dedicated anti‑tailgating and anti‑reverse pass logic across multiple lanes.
Manage access to libraries, research labs, sports centres and dormitory zones with multi‑lane configurations for efficient student and staff flow.
Durable stainless construction withstands industrial environments; multi‑lane setups allow thousands of employees to pass quickly at shift change times.
🔌 Seamless Integration with Access Control & Biometric Systems
The SB‑ES‑3012‑2 uses standard dry contact communication, making it compatible with virtually any access control panel, biometric reader (fingerprint, face recognition), RFID card reader, or third‑party attendance system. When paired with eSSL’s AI Face series or Aiface Magnum terminals, the barrier automatically unlocks upon authorised identification, while also logging timestamps for attendance tracking. For multi‑lane deployments, a single panel can manage several lanes with centralised control and monitoring, reducing hardware costs while maintaining independent lane operation. The system can be integrated with leading HR/ERP platforms:
- HRMS: Spine, GreytHR, HROne
- Payroll: Candle, Saral, Oracle
- CRM: Zoho, custom ERPs
🌟 Why Choose eSSL Pune as Your Swing Barrier Partner?
We supply factory‑fresh SB‑ES‑3012‑2 units with full manufacturer warranty – no grey market or counterfeit components.
Our engineers handle site surveys, foundation planning, power/network wiring, and integration with any access controller.
Integrate the swing barrier with turnstiles, boom barriers, CCTV, and attendance software for a unified security platform.
Best‑in‑class rates for the SB‑ES‑3012‑2, plus optional AMC for sensor calibration, motor servicing, and firmware updates.
