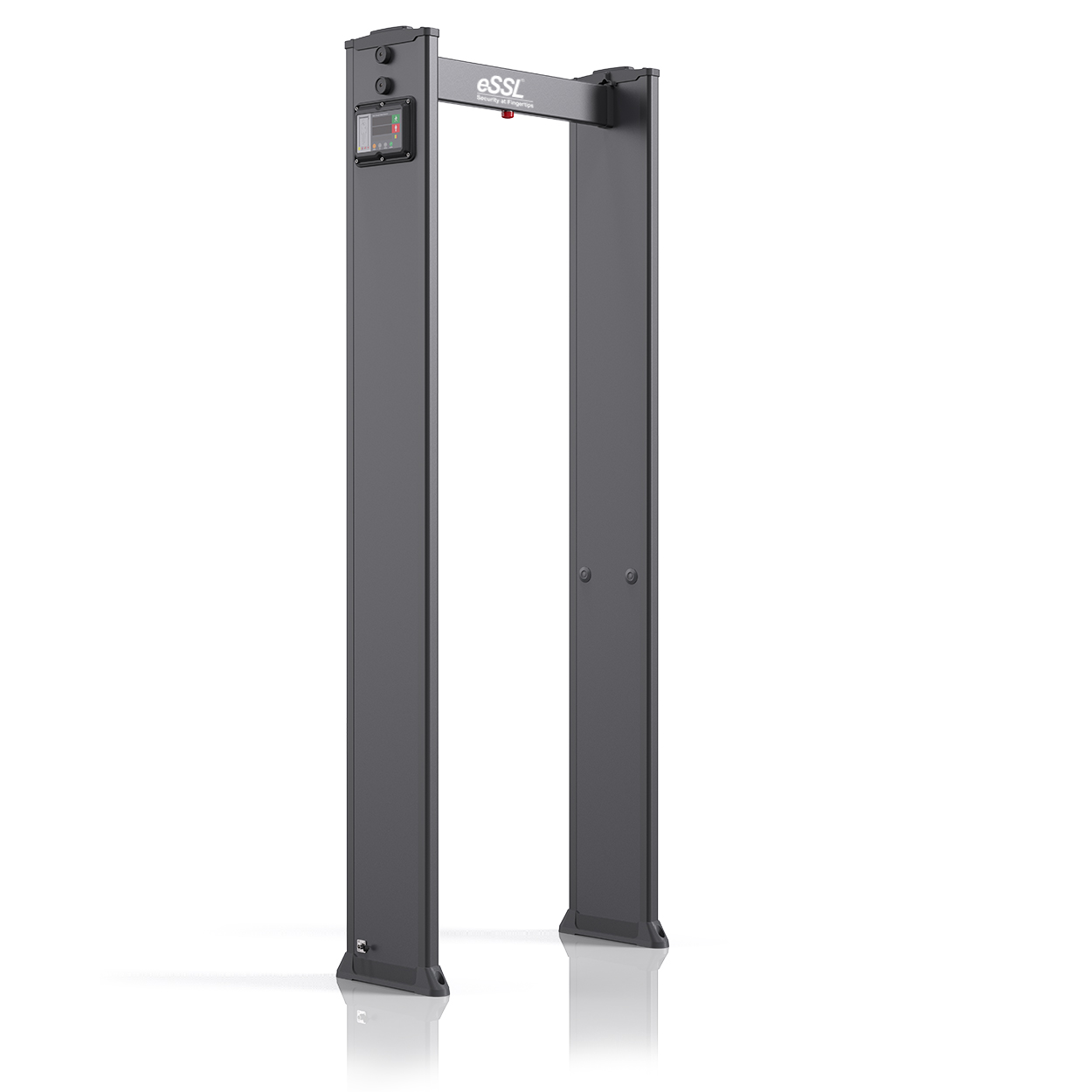

eSSL D270-9-IP54 – 9-Zone IP54 Door Metal Detector
The eSSL D270-9-IP54 door metal detector is a high‑sensitivity security gate providing accurate screening for high‑traffic entry points. With 9 detection zones, IP54 dust/water protection, 0–400 adjustable sensitivity, and an integrated pass/alarm counter, it delivers reliable threat detection for airports, malls, government buildings, corporate offices, and industrial facilities.
The eSSL D270-9-IP54 door metal detector is a professional walk‑through security solution that effectively identifies concealed metallic threats while maintaining a high throughput rate. Its nine detection zones, powered by electromagnetic pulse induction technology, provide precise location information, and the 0‑400 sensitivity level adjustment allows fine‑tuning for different threat levels. The IP54‑rated ABS housing ensures reliable operation in dusty or humid environments, making it suitable for indoor and sheltered outdoor use.
🔑 Key Features – eSSL D270-9-IP54 Metal Detector Gate
✅ 9 Independent Detection Zones
Each zone has a dedicated LED light strip that illuminates when metal is detected, providing instant feedback on the object's approximate height, enabling faster secondary searches.
Each zone has a dedicated LED light strip that illuminates when metal is detected, providing instant feedback on the object's approximate height, enabling faster secondary searches.
✅ 0–400 Sensitivity Levels (Per Zone)
The sensitivity of every zone can be independently adjusted, allowing precise calibration for different metal objects while minimising false alarms from small items such as coins, keys or belt buckles.
The sensitivity of every zone can be independently adjusted, allowing precise calibration for different metal objects while minimising false alarms from small items such as coins, keys or belt buckles.
✅ 15 Selectable Alarm Tones
A wide choice of audible alerts with 0–3 second duration and 0–50 adjustable volume, customisable to site requirements.
A wide choice of audible alerts with 0–3 second duration and 0–50 adjustable volume, customisable to site requirements.
✅ Separate Pass & Alarm Counters
Built‑in infrared sensors automatically count every person passing through, while the alarm counter records triggered events, providing valuable security data.
Built‑in infrared sensors automatically count every person passing through, while the alarm counter records triggered events, providing valuable security data.
✅ IP54 Weather‑Resistant Enclosure
Rated IP54 for dust and water protection, the detector can be used in a variety of environments, including sheltered outdoor locations, without performance degradation.
Rated IP54 for dust and water protection, the detector can be used in a variety of environments, including sheltered outdoor locations, without performance degradation.
✅ 0–100 Adjustable Working Frequency
Multi‑frequency operation reduces electrical interference when multiple metal detectors are installed side‑by‑side, ensuring that each unit operates reliably and without cross‑talk.
Multi‑frequency operation reduces electrical interference when multiple metal detectors are installed side‑by‑side, ensuring that each unit operates reliably and without cross‑talk.
✅ Simple Installation via 2 Doors
Easy assembly of left/right door panels and cross‑beam using a wire probe – no specialised tools required.
Easy assembly of left/right door panels and cross‑beam using a wire probe – no specialised tools required.
✅ High‑Strength ABS Construction
Lightweight yet durable ABS materials ensure mechanical strength, easy transport, and long service life.
Lightweight yet durable ABS materials ensure mechanical strength, easy transport, and long service life.
📊 Technical Specifications – eSSL D270-9-IP54 Walk‑Through Metal Detector
| Detection Technology | Electromagnetic pulse induction |
|---|---|
| Detection Zones | 9 independent multi‑zone detection with LED location indicators |
| Passage Dimensions (H × W × D) | 2017 mm × 720 mm × 349 mm (width customisable 720 mm – 1500 mm) |
| External Dimensions (H × W × D) | 2165 mm × 828 mm × 349 mm |
| Net Weight / Gross Weight | 21 kg / 27 kg |
| Ingress Protection (IP) Rating | IP54 (dust‑protected, splash‑resistant) |
| Working Humidity / Temperature | ≤ 99 % (non‑condensing) / -20 °C to +65 °C |
| Power Input | AC 100 V – 240 V, 50 Hz / 60 Hz |
| Operating Frequency Range | 0–100 (adjustable) |
| Sensitivity Adjustment | 0–400 per zone |
| Volume / Alarm Duration | 0–50 / 0–3 sec |
| Alarm Tones | 15 different tones |
| Minimum Detectable Metal | Ferrous metals < 75 g |
| Construction Material | High‑intensity ABS (Acrylonitrile Butadiene Styrene) |
| Product Colour | Matte Black |
⚙️ How the eSSL D270-9-IP54 Detection System Works
🔎 Electromagnetic Field Generation
Embedded coils in the side panels create a low‑intensity pulsed magnetic field. When a person walks through, metal objects disturb the field, triggering a response.
Embedded coils in the side panels create a low‑intensity pulsed magnetic field. When a person walks through, metal objects disturb the field, triggering a response.
⚡ Real‑Time Signal Processing
The microprocessor analyses the disturbance against programmed sensitivity thresholds (0–400) to confirm a threat.
The microprocessor analyses the disturbance against programmed sensitivity thresholds (0–400) to confirm a threat.
🎯 9‑Zone Localisation
The nine detection zones identify the exact vertical segment of the gate where the disturbance occurred, with the corresponding LED strip illuminating to guide security staff.
The nine detection zones identify the exact vertical segment of the gate where the disturbance occurred, with the corresponding LED strip illuminating to guide security staff.
📊 Automatic Counting & Reporting
Infrared sensors count persons entering the gate, while the alarm counter logs every detection event, providing a complete security audit trail.
Infrared sensors count persons entering the gate, while the alarm counter logs every detection event, providing a complete security audit trail.
🏢 Where to Deploy the eSSL D270-9-IP54 Door Metal Detector
✈️ Airports & Metro Stations
Screen high volumes of passengers for firearms, knives and other prohibited metallic objects.
Screen high volumes of passengers for firearms, knives and other prohibited metallic objects.
🏢 Corporate Offices & IT Parks
Secure main lobbies, server rooms and high‑security floors by preventing unauthorised metal items.
Secure main lobbies, server rooms and high‑security floors by preventing unauthorised metal items.
🏛️ Government Buildings & Courts
Protect sensitive facilities by screening employees, visitors and contractors.
Protect sensitive facilities by screening employees, visitors and contractors.
🏫 Educational Institutions
Enhance campus safety at school and university entrances, reducing the risk of weapons being brought onto the premises.
Enhance campus safety at school and university entrances, reducing the risk of weapons being brought onto the premises.
🏨 Hotels & Hospitality Venues
Secure hotel lobbies, banquet halls, convention centres and executive meeting floors.
Secure hotel lobbies, banquet halls, convention centres and executive meeting floors.
🏭 Industrial & Manufacturing Facilities
Prevent the unauthorised removal of metal assets and reinforce compliance at factory gates.
Prevent the unauthorised removal of metal assets and reinforce compliance at factory gates.
🌟 Why Choose eSSL Pune as Your Door Metal Detector Partner?
Genuine eSSL Hardware
We supply factory‑fresh D270-9-IP54 detectors with full manufacturer warranty and compliance with eSSL security standards.
We supply factory‑fresh D270-9-IP54 detectors with full manufacturer warranty and compliance with eSSL security standards.
Expert Installation & Support
Our Pune‑based engineers handle site surveys, assembly, calibration and integration with existing security systems.
Our Pune‑based engineers handle site surveys, assembly, calibration and integration with existing security systems.
Seamless Integration
Connect the detector to turnstiles, boom barriers, CCTV, and access control systems for a complete security ecosystem.
Connect the detector to turnstiles, boom barriers, CCTV, and access control systems for a complete security ecosystem.
Competitive Pricing & AMC Options
Best‑in‑class rates for the eSSL D270-9-IP54, plus optional annual maintenance contracts for ongoing support.
Best‑in‑class rates for the eSSL D270-9-IP54, plus optional annual maintenance contracts for ongoing support.
🔌 Seamless ERP, HRMS & Security System Integration
The eSSL D270-9-IP54 door metal detector can be integrated with a wide range of business and security systems, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral and Oracle. Our experts can help you configure event logging, visitor access records and audit trails directly into your existing ERP platform, unifying physical security with workforce management.
❓ Frequently Asked Questions – Door Metal Detector Systems
What is the eSSL D270-9-IP54 metal detector gate?
The eSSL D270-9-IP54 is a professional 9‑zone walk‑through metal detector. It uses electromagnetic induction technology and can be adjusted from 0–400 sensitivity. The system automatically counts the number of persons passing through as well as the number of alarms triggered.
How many detection zones does the D270-9-IP54 have?
The eSSL D270-9-IP54 is a 9‑zone door metal detector. It divides the detection area into nine independent vertical zones, each with a dedicated LED strip. When a metal object is detected, the corresponding zone's LED illuminates, providing an instant visual indication of the object's approximate height.
What is the IP rating of the D270-9-IP54?
The D270-9-IP54 has an IP54 rating. Its ABS housing is dust‑protected and resistant to water splashes, making the detector suitable for both indoor and sheltered outdoor applications.
What is the typical throughput of the D270-9-IP54?
Like most professional walk‑through metal detectors, the D270-9-IP54 can screen 30 to 60 persons per minute, depending on sensitivity settings and foot traffic.
Can the D270-9-IP54 be integrated with other security systems?
Yes, the metal detector gate can be integrated with turnstiles, flap barriers, CCTV cameras, and ERP platforms such as Spine, GreytHR, HROne, Zoho, Candle, Saral, and Oracle.
What is the minimum detectable metal?
The eSSL D270-9-IP54 can detect ferrous metals as small as 75 grams, depending on the item's composition and placement.
