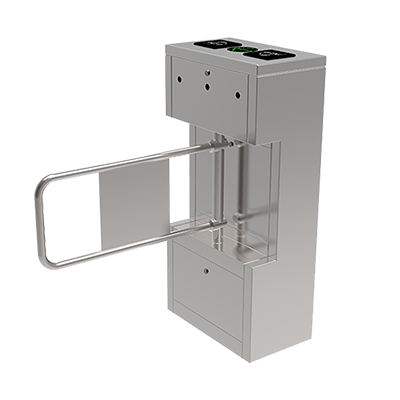

eSSL SB‑TL‑129 – High‑Speed Single Lane Swing Barrier
The eSSL SB‑TL‑129 swing barrier is a high‑speed, single‑lane pedestrian access control gate engineered for efficient and secure entry management. With its robust 304 stainless steel construction, 550mm passage width, and IP54‑rated protection, this swing barrier delivers reliable, high‑performance access control for corporate offices, educational institutions, commercial complexes, and industrial facilities.
The SB‑TL‑129 is a versatile, single‑lane swing barrier gate designed to precisely manage pedestrian traffic while maintaining a high level of security. It uses an electro‑magnetic DC drive for quiet, fast operation, reaching a throughput of up to 30 persons per minute. The system can be integrated with a variety of authentication methods, including IC cards, ID cards, barcodes, or quick response (QR) codes to create a fully customized, intelligent access control lane. The barrier’s tempered glass panels provide a modern, unobtrusive appearance while ensuring impact resistance, and the double anti‑clipping system (photocell + mechanical) adds an important safety layer, preventing the swing arms from closing on people or objects when visitors are passing through.
🔑 Key Features – eSSL SB‑TL‑129 Swing Barrier Gate
Supports IC cards, ID cards, barcode readers, and custom QR codes – connects seamlessly to any access control system or external authentication device.
Configurable for two‑way card reading, one‑way entry with free exit, or single‑direction control, adapting precisely to any site’s traffic pattern.
Optimised for a secure yet comfortable passage width, allowing a smooth walkway while preventing physical tailgating.
Efficiently handles up to 30 persons per minute, making it highly suitable for mid‑range traffic in office towers, campuses, and transit areas.
Built‑in security includes anti‑illegal entry (anti‑tailgating), photocell + mechanical double anti‑clipping, and configurable 1–60 second delayed closing after a valid card read.
An onboard LED status display and integrated voice announcements provide real‑time feedback and enable smooth, intuitive passage.
Dust‑protected and splash‑resistant casing ensures reliable performance in both indoor and sheltered outdoor installations.
Failsafe design (doors open on power failure) and automatic reset lock if the authorized user does not pass within the set timeout.
📊 Technical Specifications – eSSL SB‑TL‑129 Single Lane Swing Barrier
| Product Model | eSSL SB‑TL‑129 |
|---|---|
| Passage Width (Max) | ≤ 550 mm |
| Throughput Rate (Pass rate) | 30 persons/minute (p/m) |
| Power Supply / Input Voltage | 100‑240 V (AC), 50‑60 Hz |
| Operational Voltage | 24 V (DC) |
| Max Power Consumption | 30 W |
| Protection Level (IP) | IP54 |
| Working Temperature Range | -25 °C to +70 °C | Drive Type | Electro‑magnetic DC drive |
| Dimension (excluding bars, L × W × H) | 800 mm × 480 mm × 980 mm |
| New Weight (including bars) | 40 kg |
| Display / Counters / Alerts | LED statistics display, voice alarm, strobe light |
| Barrier / Arm Material | Toughened / laminated glass |
⚙️ Advanced Security & Safety Features
Built‑in logic tracks entry and exit counts in real time, showing the volume of passing users on the integrated LED screen for easy supervision.
Provides instant feedback for authorized access, invalid attempts, and system status, ensuring operators can respond to events immediately.
Infrared anti‑clip sensors immediately stop the swing arms if an obstruction is detected; a mechanical clutch provides an additional layer of protection.
The closing delay after a valid card read can be field‑adjusted, accommodating different traffic flow speeds and security requirements.
🏢 Where to Deploy the eSSL SB‑TL‑129 Swing Barrier Gate
Ideal for securing main lobbies, executive zones, and server rooms. Integrates seamlessly with biometric, face recognition, or RFID readers.
Controls access to campus facilities, libraries, sports centres, and dormitories, improving both safety and usage statistics.
Ensures only authorised personnel enter production zones and material storage areas, reducing asset loss and improving compliance.
Efficiently manages high‑traffic entry points for shopping malls, convention centres, and transit hubs, while maintaining a sleek design.
🔌 Seamless ERP, HRMS & Access Control Integration
The SB‑TL‑129 swing barrier can be directly integrated with a wide range of business and security systems. When connected to an access controller or biometric terminal, it sends recorded passage data for attendance tracking and event logging. Our experts can help integrate the system with:
- HRMS / Payroll: Spine, GreytHR, HROne, Candle, Saral, Oracle
- CRM / ERP: Zoho, custom ERPs
- Access Control: All eSSL readers, third‑party panels (Wiegand / dry contact)
🌟 Why Choose eSSL Pune as Your Swing Barrier Gate Partner?
We supply factory‑fresh SB‑TL‑129 units with full manufacturer warranty – no grey market or counterfeit components.
Our engineers handle site surveys, layout planning, and full integration with your access control system to ensure flawless operation.
Connect the swing barrier gate with turnstiles, CCTV, and attendance software to create a unified security ecosystem.
Best‑in‑class rates for the SB‑TL‑129, plus optional AMC for sensor calibration, motor servicing, and firmware updates.
