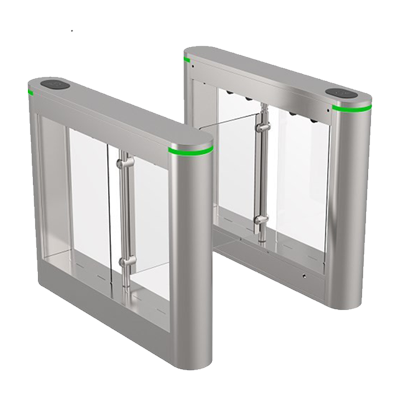

eSSL SB‑ES‑3012 – Single Lane Swing Barrier Gate
The eSSL SB‑ES‑3012 single lane swing barrier is a high‑speed pedestrian access control gate designed for elegant and secure entry management. With a robust 304 brushed stainless steel cabinet, 10mm transparent acrylic arms, and a fast 0.2s operating time, this swing barrier ensures both safety and efficiency. It is the ideal choice for corporate lobbies, airports, metro stations, commercial complexes, and government buildings.
The eSSL SB‑ES‑3012 is a single lane swing barrier that efficiently manages pedestrian flow while maintaining a high level of physical security. Its brushed stainless steel body (top cover 1.2mm SUS304, body 1.0mm SUS304) provides exceptional durability, while the 10mm transparent acrylic wings offer an elegant look that complements any modern building interior. Equipped with 4 pairs of high‑precision infrared sensors, the barrier reliably detects unauthorised tailgating and reverse passing, ensuring one valid credential grants access to exactly one person.
The swing barrier achieves a throughput of 20–35 persons per minute, making it suitable for moderate to high‑traffic checkpoints. Its brushed motor drive and 0.2s opening time provide quick, quiet operation, and the wide operating temperature range (-25°C to +70°C) ensures reliability in diverse climates. The barrier automatically swings open on power failure or fire alarm to meet emergency evacuation requirements, adding a critical safety layer.
🔑 Key Features – eSSL SB‑ES‑3012 Swing Barrier Gate
Top cover 1.2mm SUS304, body 1.0mm SUS304 – corrosion‑resistant and designed for high‑traffic durability.
Clear, impact‑resistant acrylic wings providing a modern, unobtrusive aesthetic.
Ultra‑fast unlocking and opening for smooth, high‑speed passage.
Dense IR array for precise anti‑tailgating, anti‑reverse pass, and anti‑clip detection.
Efficiently handles moderate to high pedestrian traffic.
On power failure or fire alarm, the barrier automatically swings open to meet emergency evacuation requirements.
Reliably operates from -25°C to +70°C, suitable for indoor and sheltered outdoor use.
Works with any standard access control panel, biometric reader, RFID card reader, or face recognition terminal.
📊 Technical Specifications – eSSL SB‑ES‑3012 Single Lane Swing Barrier
| Product Model | eSSL SB‑ES‑3012 |
|---|---|
| Product Size (L×W×H) | 1200 mm × 185 mm × 980 mm |
| Passage Width | 600 mm (standard) |
| Net Weight | 65 kg |
| Cabinet Material | Top cover 1.2mm SUS304, body 1.0mm SUS304 |
| Arm (Wing) Material | 10 mm transparent acrylic |
| Drive / Motor | Brushed motor |
| Operating Time (Unlock + Open) | 0.2 seconds |
| Infrared Sensors | 4 pairs |
| Pass Rate (Throughput) | 20–35 persons/minute (depending on user flow) |
| Power Supply | 100–240 V(AC), 50–60 Hz |
| Operational Voltage | 24 V(DC) |
| Max Power Consumption | 35 W |
| MCBF (Mean Cycles Between Failures) | 5,000,000 cycles |
| Operating Temperature | -25 °C to +70 °C |
| Communication Mode | Dry contact |
⚙️ Operating Modes & Advanced Behaviours
Two‑way card reading (entry+exit), one‑way card reading with free exit, or one‑way with exit button – configurable to site policy.
Set to “with memory” (allows re‑entry after valid card while gate is open) or “without memory” (one card, one passage).
If the authorised user does not pass within the configured time after authentication, the gate automatically restores to the locked state, preventing piggyback attempts.
Doors automatically open on power loss or external fire alarm signal, ensuring an unobstructed evacuation path.
🏢 Where to Deploy the eSSL SB‑ES‑3012 Swing Barrier Gate
Secure main lobbies, executive zones and server rooms. Integrates seamlessly with biometric, face recognition, or RFID readers.
Efficient passenger and staff access control with 0.2s fast opening and 20‑35 persons/min throughput.
Elegant, quiet operation for staff entrances, back‑of‑house zones, and premium guest areas.
Enforce strict physical security perimeters with anti‑tailgating and anti‑reverse pass logic.
Manage access to libraries, research labs, sports centres and dormitory zones.
Durable stainless construction withstands industrial environments; integrates with attendance and time‑tracking systems.
🔌 Seamless Integration with Access Control & Biometric Systems
The SB‑ES‑3012 uses standard dry contact communication, making it compatible with virtually any access control panel, biometric reader (fingerprint, face recognition), RFID card reader, or third‑party attendance system. When paired with eSSL‘s AI Face series or Aiface Magnum terminals, the barrier automatically unlocks upon authorised identification, while also logging timestamps for attendance tracking. The system can be integrated with leading HR/ERP platforms:
- HRMS: Spine, GreytHR, HROne
- Payroll: Candle, Saral, Oracle
- CRM: Zoho, custom ERPs
