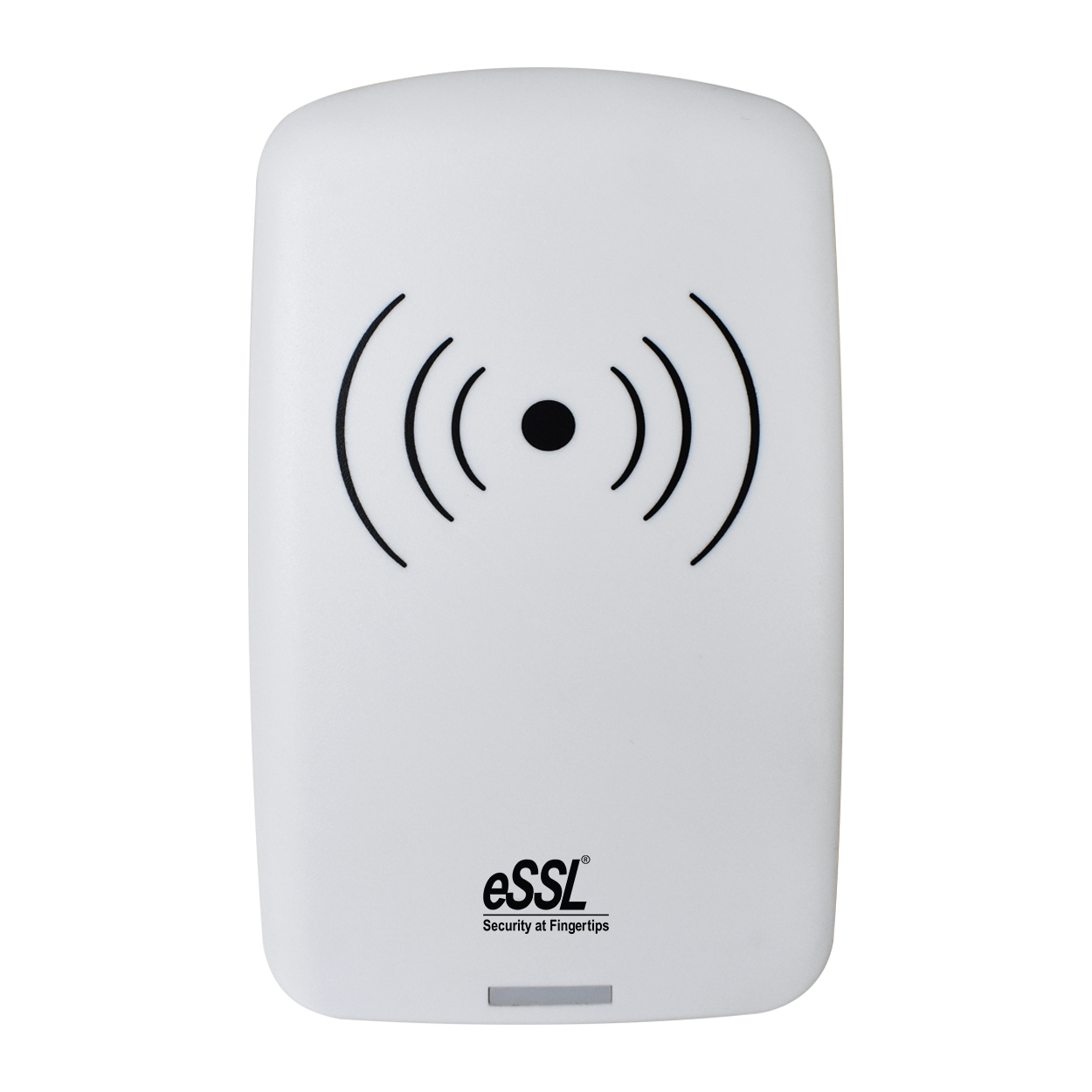

eSSL UR10R-1F – Desktop UHF Reader and Writer
The eSSL UR10R-1F UHF reader and writer is a compact desktop RFID encoder designed for professional credential management. Fully compliant with EPCglobal Class 1 Gen 2 and ISO 18000-6C standards, it reads and writes UHF cards and tags via a simple USB connection – no drivers required. With integrated antenna, Wiegand 26/34 output, and a reliable 20‑40 cm read range, it is the perfect tool for access control card issuance, vehicle tag programming, asset tracking, and batch encoding.
📌 What is the eSSL UR10R-1F UHF Reader and Writer?
The eSSL UR10R-1F is a compact, USB‑powered desktop UHF RFID reader and writer. It supports the industry‑standard EPCglobal Class 1 Gen 2 (ISO 18000‑6C) protocol, making it compatible with all passive UHF cards, tags, and key fobs. The device connects to any computer via USB (driver‑free, HID keyboard emulation) and can be configured for Wiegand 26/34 output to interface directly with access control panels. With built‑in active search mode, integrated antenna, and a read range of 20‑40 cm, it excels as a credential issuance tool for access control, parking management, and asset tracking systems.
📊 Technical Specifications – eSSL UR10R-1F
| Product Model | eSSL UR10R-1F |
|---|---|
| Product Type | Desktop UHF RFID Reader and Writer (Encoder) |
| Protocol | EPCglobal Class 1 Gen 2, ISO 18000-6C | Operating Frequency | 902 – 928 MHz (FCC standard) |
| Read / Write Range | 20 – 40 cm (depends on tag type and environment) |
| Data Reception Time | < 90 ms |
Specifications derived from eSSL Security documentation and product data. Actual read range may vary with tag type and environment.
🔑 Key Features – eSSL UR10R-1F UHF Reader and Writer
Supports EPCglobal Class 1 Gen 2 / ISO 18000‑6C; can read tag IDs and write to EPC and user memory. Ideal for credential issuance, tag programming, and data binding.
Connects via USB and is recognized as a HID keyboard device. Works out of the box on Windows, Linux, macOS, Android, and iOS – no additional driver installation required.
Default 26‑bit Wiegand output (optional 34‑bit) for direct connection to access control panels, controllers, and biometric terminals – simplifies system integration.
Built‑in antenna with active scanning quickly detects nearby UHF tags. Read range of 20–40 cm is ideal for desktop encoding stations.
Data reception time under 90 milliseconds ensures smooth, high‑speed encoding – reduces waiting time during batch card issuance.
Works with Windows, Linux, Android, and iOS. An SDK is available for custom application development and deeper integration with your existing software.
🏢 Where to Deploy the eSSL UR10R-1F Desktop UHF Reader
Security help desks can encode UHF cards for employees, visitors, or contractors. The Wiegand output allows direct testing with access panels.
Encode windshield tags with vehicle ID, expiration date, or prepaid parking data. Pair with long‑range UHF readers for automatic entry/exit.
Bind asset details (serial number, location, owner) to UHF tags for laptops, tools, and logistics containers. Bulk‑encode using batch mode.
Encode UHF wristbands with patient information, allergies, or medication records – fast identification at entry points or nursing stations.
Pre‑encode UHF cards for conferences, sports events, or exhibitions. The USB keyboard output integrates directly with ticketing software.
Write route and status data to UHF tags on pallets or carriers. The rugged, compact design fits easily on production workbenches.
🌟 Why Choose the eSSL UR10R-1F as Your UHF Reader and Writer?
Plug‑and‑play USB and Wiegand outputs reduce system integration costs. No expensive software licenses or driver headaches – just plug in and start encoding.
Many desktop readers are read‑only. The UR10R-1F supports both reading and writing, enabling full credential lifecycle management from issuance to deactivation.
With a footprint of just 107×107 mm, it fits neatly on crowded security desks, enrollment stations, or warehouse receiving counters without sacrificing performance.
Works with eTimeTrackLite software and supports data export to Spine, GreytHR, HROne, Zoho, Candle, Saral, Oracle – unify card issuance with employee records and payroll.
🔌 Seamless Integration with ERP, HRMS & Access Control Systems
The UR10R-1F outputs card data via USB (keyboard emulation) or Wiegand 26/34, making it compatible with any access control panel, attendance system, or custom software that accepts these inputs. When paired with eSSL‘s eTimeTrackLite, captured card IDs can be linked to employee profiles, visitor records, or asset registers. Standard data exports (CSV, Excel) and API support enable integration with leading ERP, HRMS, and payroll platforms, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle. Our integration team can help you automate credential issuance workflows and sync user data across systems.
