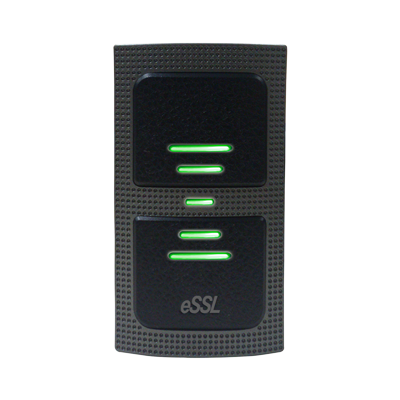

eSSL KR500E Prox Card Reader – 125kHz Proximity Card Reader for Access Control
The eSSL KR500E prox card reader is a reliable, compact, and weather-resistant 125kHz EM proximity card reader designed for access control systems. Featuring Wiegand 26/34 bit output, IP65 weatherproof housing, and a read range of up to 10 cm, it is the ideal choice for secure entry at offices, parking gates, turnstiles, and industrial facilities.
📌 Product Overview – A Reliable Proximity Card Reader
The eSSL KR500E proximity card reader uses 125 kHz RFID technology to read standard EM proximity cards and tags. When a card is presented within range, the reader captures the unique identification number and transmits it to an access control panel via the industry-standard Wiegand interface. This simple, secure, and contactless identification process forms the foundation of most professional access control systems. The KR500E is built to last with an IP65-rated outer housing that protects against dust and water jets, making it suitable for both indoor and semi-outdoor installations.
📊 Technical Specifications – eSSL KR500E
| Product Model | eSSL KR500E |
|---|---|
| Product Type | 125kHz EM Proximity Card Reader |
| Frequency | 125 kHz |
| Read Range | Up to 10 cm (depending on card type and environment) |
| Reading Time | ≤200 ms |
| Output Format | Wiegand 26-bit (default) / 34-bit (default) |
| Communication Interface | Wiegand (26/34 bit) |
| Power Supply | DC 6-14V |
| Operating Current | ≤70 mA (max) |
| LED Indicator | 2‑colour LED (Red and Green) for power and card read status |
| Beeper | Yes (audible feedback on card read) |
| Input Ports | 2 ports for external LED control |
| Ingress Protection (IP) Rating | IP65 (dust‑tight, water jet resistant) |
| Operating Temperature | -20°C to +65°C |
| Operating Humidity | 10% to 90% RH (non‑condensing) |
| Dimensions (W × H × T) | 116 mm × 75 mm × 17.3 mm |
| Weight | 50 g |
🔑 Key Features – eSSL KR500E Prox Card Reader
Compatible with standard 125kHz EM proximity cards, key fobs, and tags – the most widely deployed card technology for access control.
The reader is epoxy potted and rated IP65, making it dust‑tight and resistant to water jets. Install it at parking gates, external doors, and other locations exposed to rain, dust, or humidity without concern.
Supports both 26‑bit and 34‑bit Wiegand formats, ensuring plug‑and‑play compatibility with virtually any access control panel, biometric terminal, or third‑party controller.
The reader measures just 116mm × 75mm × 17.3mm and weighs only 50 grams – ideal for thin‑frame doors, parking gate posts, turnstiles, and other space‑constrained mounting locations.
Dual‑colour LED indicator (Red/Green) and built‑in beeper provide immediate feedback to users, confirming when a card has been successfully read.
Operates on DC 6‑14V, making it compatible with most access control power supplies without additional voltage regulation.
🏢 Where to Deploy the eSSL KR500E Prox Card Reader
Install at main entrances, employee doors, and restricted areas for quick, contactless entry using standard proximity cards.
The IP65 rating makes the KR500E perfect for outdoor parking entry points, where it can be exposed to rain, dust, and temperature extremes.
Control access to production floors, warehouses, and secure storage areas. The rugged construction withstands dusty industrial environments.
Manage access to university campuses, school buildings, laboratories, and libraries with cost‑effective proximity card readers.
Secure perimeters and internal doors at courthouses, municipal offices, and other government facilities.
Install at staff entrances, security checkpoints, and baggage handling areas where reliable card reading is critical.
🌟 Why Choose eSSL for Your Proximity Card Reader Needs?
eSSL (formerly ZKTeco) has been a trusted name in biometric and RFID security for over 20 years. The KR500E is built on the same reliable technology platform used in thousands of access control installations worldwide.
The KR500E‘s Wiegand output ensures seamless integration with any access control panel, door controller, biometric terminal, or third‑party system – whether you are upgrading an existing system or designing a new one.
With its IP65 rating and epoxy‑potted electronics, the KR500E reliably operates in outdoor and harsh environments where ordinary readers would fail.
Low power consumption (≤70 mA) and rugged construction reduce long‑term operating costs. Optional annual maintenance contracts (AMC) offer ongoing support and peace of mind.
🔌 Seamless Integration with ERP, HRMS & Payroll Systems
The eSSL KR500E proximity card reader is a core component of eSSL‘s access control ecosystem. When connected to an eSSL access controller or biometric terminal, the captured card data can be used for time‑attendance tracking, visitor management, and automated payroll integration. Event logs and access records can be exported to leading HRMS, ERP, and payroll platforms, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle. Our team provides comprehensive integration support to ensure that card access events flow seamlessly into your existing business systems.
