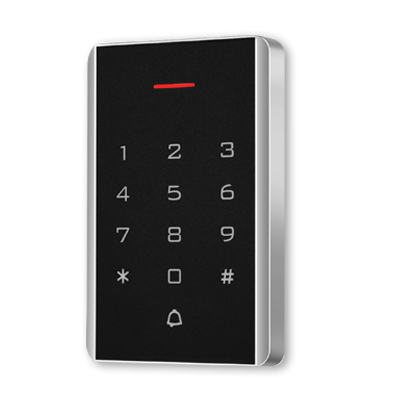

eSSL JS-32E – RFID Standalone Access Control System
The eSSL JS-32E standalone access control system is a compact, all-in-one solution that combines an EM proximity card reader and a door controller in a single device. Supporting up to 2,000 users, it offers flexible verification modes – PIN only, Card only, or PIN + Card – and eliminates the need for external controllers, PCs, or dedicated software. With an IP66-rated weatherproof casing, built‑in relay for direct lock control, and Wiegand 26‑bit input/output for seamless integration with higher access control ecosystems, the JS-32E delivers cost‑effective, reliable security for offices, server rooms, residential buildings, and educational institutions.
📌 What is the eSSL JS-32E?
The eSSL JS-32E is a standalone RFID access control terminal that integrates a 125kHz EM card reader, a keypad, and a relay-based controller into a single rugged unit. Unlike networked systems that require central software or control panels, the JS-32E stores credentials locally and makes access decisions autonomously. It manages up to 2,000 individual users, accepting either 125kHz EM proximity cards, PIN codes, or a combination of both – giving you the flexibility to choose the right security level for each user group. Its adjustable door‑open relay time (0-99 seconds) and built‑in Wiegand 26‑bit communication (both input and output) ensure compatibility with electric locks, electromagnetic locks, external exit readers, and even centralised security management systems if a future upgrade is needed.
📊 Technical Specifications – eSSL JS-32E
| Product Model | eSSL JS-32E |
|---|---|
| Product Type | Standalone RFID Access Control System |
| User / Card Capacity | 2,000 users (cards or PIN codes) | Card Type (RFID) | 125kHz EM Proximity Card (compatible with standard EM cards and key fobs) |
| Authentication Modes | PIN only, Card only, PIN + Card (dual authentication) |
| Wiegand Interface | Wiegand 26‑bit input/output (supports Wiegand 34) – can connect as master controller or slave reader |
| Relay Output (Lock Control) | Built‑in relay for direct control of electric locks, magnetic locks, strike locks, and alarm outputs; rated ≤3 A |
| Door Opening Time | Adjustable 0‑99 seconds (programmable via keypad) |
| Reader Read Range | 3‑8 cm (depending on card type and environmental conditions) |
| Backlit Keypad | Illuminated keypad for PIN entry and programming – works in low‑light conditions |
| Enclosure Rating & Protection | IP66 weatherproof plastic casing (dust‑tight, protected against powerful water jets) |
| Power Supply | DC 12 V ±10% |
| Standby Current / Max Static Current | < 30 mA |
| Operating Temperature | -45 °C to +60 °C |
| Operating Humidity | 10% to 90% RH (non‑condensing) |
Specifications derived from eSSL Security product documentation and industry‑recognised technical data.
🔑 Key Features – Why Choose eSSL JS-32E
No external panel, no PC, no special software – the JS‑32E integrates reader, controller, and relay in one unit. It makes access decisions locally and directly controls electric locks, magnetic locks, strikes, and alarms, cutting hardware costs and reducing installation complexity.
Supports up to 2,000 users with three flexible authentication modes: Card only, PIN only, or Card + PIN. Assign the security level that fits each user function – fast PIN entry for trusted staff, dual‑factor for sensitive areas, or card‑only for visitors and temporary personnel.
Rugged plastic housing with IP66 ingress protection – dust‑tight and resistant to powerful water jets. Withstands rain, dust, high humidity, and temperature extremes (-45 °C to +60 °C). Designed primarily for indoor use but suitable for sheltered outdoor applications like covered porches, parking garages, and factory entrances.
Built‑in Wiegand 26 interface allows the JS‑32E to function as a master controller (standalone) or as a Wiegand reader connected to a larger access control panel. The Wiegand output can also feed card data into time‑attendance or ERP systems, creating a unified security and workforce management platform without replacing existing hardware.
Door‑open relay pulse duration can be programmed from 0 to 99 seconds – ideal for normal entry (“tap and push”) or unattended loading bays requiring a longer opening window. Remote opening function supported.
Illuminated keypad ensures easy programming and PIN entry, even in dimly lit corridors. Administrators can add/delete users, set door‑open times, and configure lockdown modes using simple on‑device commands – no computer or software required.
🏢 Where to Deploy the eSSL JS-32E Standalone Access Control
Secure employee entrances, administrative offices, and server rooms. The 2,000‑user capacity easily supports small to medium enterprises without recurring software license fees or annual subscriptions.
Control access to main entrances, lift lobbies, and basement parking. Leverage Card or PIN‑only modes for residents, housekeeping staff, and vendors.
The IP66 rating and wide temperature tolerance (-45 °C to +60 °C) make it suitable for factory floors, warehouses, tool cribs, and outdoor storage zones.
Secure laboratories, libraries, exam halls, and administrative blocks on a school or college campus using card‑based or PIN‑based access for students, faculty, and staff.
Integrated with boom barriers, the JS-32E can control vehicle entry for employees and authorised guests using RFID cards or PIN codes. The adjustable door‑open time (0‑99 s) accommodates different vehicle speeds.
Pharmacy doors, medical record rooms, and ICUs gain reliable, standalone access control with dual‑factor (Card + PIN) configurations for higher‑security areas.
🌟 Why Choose the eSSL JS-32E?
No separate controller, no dedicated PC, no software licensing – the JS‑32E works as a complete unit. This dramatically reduces installation and maintenance costs while delivering professional access control.
Wiegand output allows the JS‑32E to feed card data into eTimeTrackLite, third‑party access control panels, or leading ERP/HRMS platforms (Spine, GreytHR, HROne, Zoho). You can combine door access data with attendance tracking if a biometric reader is deployed alongside.
The IP66 plastic case and wide operating temperature range withstand heavy use in public, industrial, and outdoor settings, reducing replacement costs and downtime.
Intuitive keypad programming. All user management (add, delete, change access mode) can be performed directly from the device using administrator PINs – no computer, no training, no learning curve.
🔌 Seamless Integration with ERP, HRMS & Payroll Systems
The eSSL JS‑32E is more than a standalone door controller – its Wiegand output can feed card access events into eSSL‘s eTimeTrackLite software or any ERP/HRMS platform that accepts Wiegand input. Standard export formats (CSV, Excel) and API support allow easy integration with Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle. Our integration team can configure event logging, access records, and audit trails directly into your enterprise software, unifying physical security with workforce management without adding extra hardware costs.
