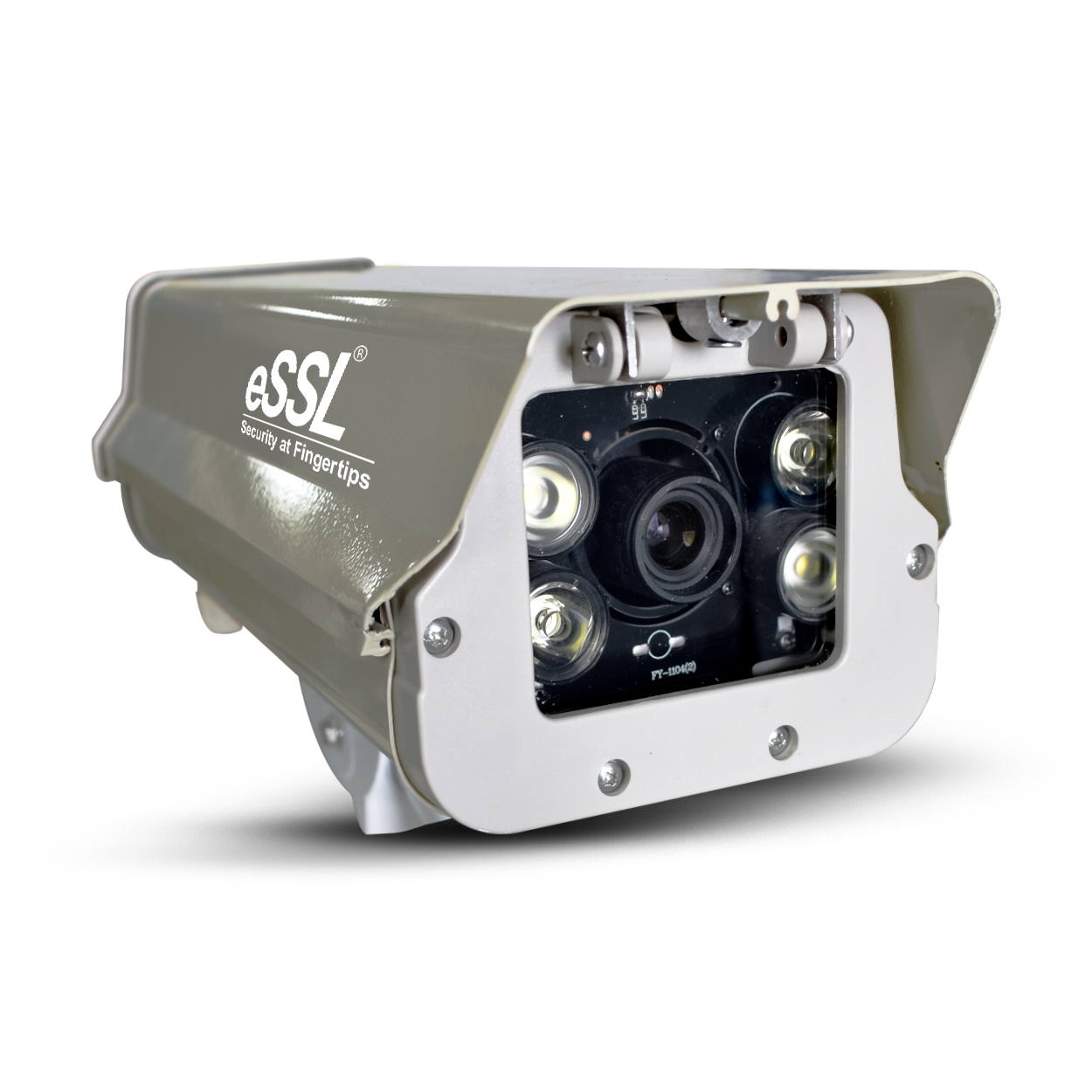

eSSL LPR‑100 – AI‑Powered License Plate Recognition System
The eSSL LPR-100 license plate recognition system is a high‑precision Automatic Number Plate Recognition (ANPR) solution that seamlessly integrates with boom barriers and access control systems. With a 2MP Exmor CMOS sensor, >99.5% detection accuracy, 40ms recognition speed, and complete support for Indian number plate formats (HSRP, Bharat Series, two‑wheelers, green plates), it delivers frictionless, touchless vehicle access for gated communities, corporate campuses, toll booths, and industrial perimeters.
The eSSL LPR‑100 is a standalone, intelligent camera that brings automatic license plate recognition to your vehicle entry points without requiring external servers or expensive software licenses. Its onboard 2.4GHz quad‑core processor runs the ANPR algorithm directly on the camera, reading license plates in real time and triggering boom barriers, lights, or sirens based on white‑list/black‑list rules. The system supports all modern number plate formats used in India, from HSRP and BH‑series to hand‑painted and two‑line plates, and operates across a wide temperature range (-10°C to 50°C) with IP54‑grade protection.
🔑 Key Features – eSSL LPR-100 Number Plate Recognition System
✅ >99.5% Detection Accuracy
The advanced ANPR algorithm delivers a detection rate exceeding 99.5%, with recognition performance above 98% for four‑wheelers and 92% for two‑wheelers, ensuring reliable operation even in challenging weather or lighting.
The advanced ANPR algorithm delivers a detection rate exceeding 99.5%, with recognition performance above 98% for four‑wheelers and 92% for two‑wheelers, ensuring reliable operation even in challenging weather or lighting.
✅ Lightning‑Fast 40ms Recognition
Processes a license plate in just 40 milliseconds, enabling a smooth, frictionless access experience where vehicles never need to stop.
Processes a license plate in just 40 milliseconds, enabling a smooth, frictionless access experience where vehicles never need to stop.
✅ Comprehensive Number Plate Support
Supports HSRP, non‑HSRP, Bharat Series (BH), green (electric vehicles), red (temporary), hand‑painted plates, and single, two, or three‑lined plates. Works with both four‑wheelers and two‑wheelers.
Supports HSRP, non‑HSRP, Bharat Series (BH), green (electric vehicles), red (temporary), hand‑painted plates, and single, two, or three‑lined plates. Works with both four‑wheelers and two‑wheelers.
✅ 2MP Exmor CMOS Sensor & Quad‑core CPU
The 2MP Sony Exmor Progressive CMOS sensor captures crystal‑clear images even in low light (0.05 Lux at F1.2). The integrated 2.4GHz 64‑bit processor runs the ANPR algorithm on‑device, eliminating external PC requirements.
The 2MP Sony Exmor Progressive CMOS sensor captures crystal‑clear images even in low light (0.05 Lux at F1.2). The integrated 2.4GHz 64‑bit processor runs the ANPR algorithm on‑device, eliminating external PC requirements.
✅ Whitelist & Blacklist Management
Maintain an authorised vehicle whitelist to automatically grant entry and a blacklist to deny access. Real‑time database updates ensure instant enforcement.
Maintain an authorised vehicle whitelist to automatically grant entry and a blacklist to deny access. Real‑time database updates ensure instant enforcement.
✅ Dashboard with Live View & User Management
The built‑in dashboard provides live camera view, visitor registration (40ms), user management with permission control, and uptime monitoring for complete system oversight.
The built‑in dashboard provides live camera view, visitor registration (40ms), user management with permission control, and uptime monitoring for complete system oversight.
✅ 2‑Channel Relay Output & API Integration
Two relay outputs for controlling boom barriers, boom barriers, lights and sirens. Supports REST APIs, TCP, and WebHook integration with access control and ERP systems.
Two relay outputs for controlling boom barriers, boom barriers, lights and sirens. Supports REST APIs, TCP, and WebHook integration with access control and ERP systems.
✅ Bulk Data Upload & 32GB On‑board Storage
Easily upload whitelisted vehicle data via CSV/XLSX format. 32GB internal storage (expandable) logs all entry/exit events for audit trails and reporting.
Easily upload whitelisted vehicle data via CSV/XLSX format. 32GB internal storage (expandable) logs all entry/exit events for audit trails and reporting.
🌟 Why Choose an LPR‑Based Access Control System?
🔹 Touchless & Frictionless Entry
No need for RFID cards, tickets, or intercoms. Authorised vehicles are automatically recognised and granted access, significantly improving traffic flow at peak hours.
No need for RFID cards, tickets, or intercoms. Authorised vehicles are automatically recognised and granted access, significantly improving traffic flow at peak hours.
🔹 Stop Credential Sharing & Theft
A vehicle's license plate is a unique, non‑transferable credential. Unlike RFID cards, LPR completely eliminates buddy‑punching, credential sharing, and the administrative overhead of managing physical tokens.
A vehicle's license plate is a unique, non‑transferable credential. Unlike RFID cards, LPR completely eliminates buddy‑punching, credential sharing, and the administrative overhead of managing physical tokens.
🔹 Tamper‑Proof & High Security
Number plates are difficult to duplicate or steal compared to RFID cards. Blacklist and whitelist enforcement provides an additional layer of perimeter security for high‑sensitive zones.
Number plates are difficult to duplicate or steal compared to RFID cards. Blacklist and whitelist enforcement provides an additional layer of perimeter security for high‑sensitive zones.
🔹 Complete Audit Trail for Vehicles
Every entry and exit is logged with a time stamp and a captured image of the vehicle. This creates an irrefutable trail for security audits, tenant billing, and investigations.
Every entry and exit is logged with a time stamp and a captured image of the vehicle. This creates an irrefutable trail for security audits, tenant billing, and investigations.
🔹 Seamless Access Control Integration
The LPR‑100 works with all standard boom barriers, flap barriers, and sliding gate controllers through its dry‑contact relay outputs, integrating directly with your existing access control infrastructure.
The LPR‑100 works with all standard boom barriers, flap barriers, and sliding gate controllers through its dry‑contact relay outputs, integrating directly with your existing access control infrastructure.
🔹 Cost‑Effective & Low Maintenance
No consumables (RFID cards, tickets, or printers) need to be purchased, programmed, or replaced. The system‘s onboard intelligence reduces ongoing operational costs while improving overall security.
No consumables (RFID cards, tickets, or printers) need to be purchased, programmed, or replaced. The system‘s onboard intelligence reduces ongoing operational costs while improving overall security.
📊 Technical Specifications – eSSL LPR‑100 ANPR Camera
| Product Model | eSSL LPR‑100 |
|---|---|
| Camera Type | AI‑powered ANPR Camera |
| Image Sensor | 1/2.8" 2 MP Exmor Progressive CMOS sensor |
| Resolution | 2 MP (1920 x 1080) |
| Frame Rate | 25 FPS |
| Minimum Illumination | Color: 0.05 Lux at F1.2, LED ON: 0.001 Lux at F1.2 |
| Lens | Varifocal 6–22 mm |
| Shutter Speed | 1/3s to 1/100,000 s |
| ANPR Algorithm Accuracy | Detection Rate: >99.5%, 4‑Wheeler Recognition: >98%, 2‑Wheeler Recognition: >92% |
| Recognition Speed | 40 milliseconds |
| Number Plate Support | HSRP, non‑HSRP, Bharat Series (BH), Green, Red, Hand‑painted; Single, Two, or Three‑lined plates; 4‑Wheeler and 2‑Wheeler |
| Detection Range | 5–10 meters (lens dependent) | Lane Coverage | Up to 4 meters |
| Vehicle Speed Limit | 15–25 KMPH (camera mounting dependent) |
| Relay Output | 2‑channel relay configurable (barrier, light, siren) |
| Storage | 32 GB internal (expandable) |
| Data Import Formats | Bulk upload via CSV / XLSX |
| Integration Protocols | API, TCP, WebHook |
| Power Supply / Consumption | DC 12V / ≤ 12 W |
| Operating Temperature | -10°C to +50°C |
| Working Humidity | ≤ 90% RH (non‑condensing) |
⚙️ How the eSSL License Plate Recognition System Works
📸 Step 1: Image Capture
The high‑resolution 2MP Exmor CMOS sensor captures a real‑time image of the vehicle as it approaches the detection zone (5–10 meters).
The high‑resolution 2MP Exmor CMOS sensor captures a real‑time image of the vehicle as it approaches the detection zone (5–10 meters).
⚡ Step 2: On‑Device ANPR Processing
The integrated 2.4GHz quad‑core processor runs the ANPR algorithm directly on the camera – no external PC or server required. The system locates the number plate within the image, segments the characters, and identifies the full plate number.
The integrated 2.4GHz quad‑core processor runs the ANPR algorithm directly on the camera – no external PC or server required. The system locates the number plate within the image, segments the characters, and identifies the full plate number.
📋 Step 3: Whitelist / Blacklist Verification
The extracted number is checked against the onboard database. Pre‑authorised plates in the whitelist are granted entry; blacklisted plates trigger a denial and alarm.
The extracted number is checked against the onboard database. Pre‑authorised plates in the whitelist are granted entry; blacklisted plates trigger a denial and alarm.
🚪 Step 4: Relay Activation
Upon successful verification, the LPR‑100 sends a signal through its dry‑contact relays, opening the connected boom barrier, sliding gate, or flap barrier.
Upon successful verification, the LPR‑100 sends a signal through its dry‑contact relays, opening the connected boom barrier, sliding gate, or flap barrier.
💾 Step 5: Data Logging & Reporting
Every entry/exit event – including the captured image, timestamp, and recognised plate – is stored in the internal 32GB memory and can be retrieved for audit trails or billing purposes.
Every entry/exit event – including the captured image, timestamp, and recognised plate – is stored in the internal 32GB memory and can be retrieved for audit trails or billing purposes.
🔌 Step 6: API / ERP Integration
The system also transmits the event data via REST APIs, TCP, or WebHook to external ERP systems (Spine, GreytHR, HROne, Zoho, Candle, Saral, Oracle), synchronising vehicle access logs with your centralised platform.
The system also transmits the event data via REST APIs, TCP, or WebHook to external ERP systems (Spine, GreytHR, HROne, Zoho, Candle, Saral, Oracle), synchronising vehicle access logs with your centralised platform.
🏢 Where to Deploy the eSSL LPR‑100 License Plate Recognition System
🏘️ Gated Residential Communities & Villas
Automate entry for residents and approved visitors while blocking unauthorised vehicles. Maintain a complete log of all vehicles entering and exiting the premises for enhanced security and tenant billing.
Automate entry for residents and approved visitors while blocking unauthorised vehicles. Maintain a complete log of all vehicles entering and exiting the premises for enhanced security and tenant billing.
🏢 Corporate Campuses & IT Parks
Grant automatic access to employee vehicles, registered vendors, and fleet transport. The system eliminates credential sharing and improves traffic flow during peak hours.
Grant automatic access to employee vehicles, registered vendors, and fleet transport. The system eliminates credential sharing and improves traffic flow during peak hours.
🛣️ Toll Plazas & Parking Management
Install at entry lanes to capture plates and automatically charge the correct toll or parking fee. Works seamlessly with boom barriers to control access.
Install at entry lanes to capture plates and automatically charge the correct toll or parking fee. Works seamlessly with boom barriers to control access.
🏛️ Government Buildings & Defence Installations
Control perimeter entry by automatically verifying vehicles against a centralised whitelist, applying blacklist rules, and logging every vehicle that passes through.
Control perimeter entry by automatically verifying vehicles against a centralised whitelist, applying blacklist rules, and logging every vehicle that passes through.
🏭 Industrial & Manufacturing Facilities
Automate access for employee vehicles, visitor transport, and logistics trucks while maintaining a detailed audit trail for security and compliance audits.
Automate access for employee vehicles, visitor transport, and logistics trucks while maintaining a detailed audit trail for security and compliance audits.
✈️ Airports & Logistics Hubs
Identify and authorise delivery vehicles, rental cars, and employee parking using license plates, reducing wait times at entry gates.
Identify and authorise delivery vehicles, rental cars, and employee parking using license plates, reducing wait times at entry gates.
🔌 Seamless ERP, HRMS & Access Control Integration
The eSSL LPR‑100 can be integrated with a wide range of third‑party business and security systems, including Spine, GreytHR, HROne, Zoho CRM, Candle, Saral, and Oracle. Our experts can help you configure event logging, vehicle access records, and audit trails directly into your existing ERP platform, unifying physical security with workforce management and access control.
🌟 Why Choose eSSL Pune as Your License Plate Recognition System Partner?
Genuine eSSL Hardware
We supply factory‑fresh LPR‑100 units with full manufacturer warranty – no grey market or counterfeit components. All cameras are fully compliant with eSSL security standards.
We supply factory‑fresh LPR‑100 units with full manufacturer warranty – no grey market or counterfeit components. All cameras are fully compliant with eSSL security standards.
Expert Installation & Calibration
Our Pune‑based engineers handle site surveys, camera mounting, angle calibration, and network integration, ensuring your LPR system is operational and optimised from day one.
Our Pune‑based engineers handle site surveys, camera mounting, angle calibration, and network integration, ensuring your LPR system is operational and optimised from day one.
Seamless Boom Barrier Integration
The LPR‑100‘s relay outputs connect directly to any boom barrier, sliding gate, or flap barrier. Our team ensures smooth, out‑of‑the‑box integration with your existing access control hardware.
The LPR‑100‘s relay outputs connect directly to any boom barrier, sliding gate, or flap barrier. Our team ensures smooth, out‑of‑the‑box integration with your existing access control hardware.
Best‑in‑Class Pricing & AMC Options
Competitive rates for the eSSL LPR‑100, plus optional annual maintenance contracts for firmware updates, sensor cleaning, and hardware support to maintain uptime.
Competitive rates for the eSSL LPR‑100, plus optional annual maintenance contracts for firmware updates, sensor cleaning, and hardware support to maintain uptime.
❓ Frequently Asked Questions – License Plate Recognition System
What is the eSSL LPR-100 license plate recognition system?
The eSSL LPR-100 is an AI-powered Automatic Number Plate Recognition (ANPR) camera system that captures, processes, and identifies vehicle license plates in real time at entry/exit points for automated access control.
What is the detection accuracy of the eSSL LPR-100 camera?
The eSSL LPR-100 delivers a detection rate of over 99.5%, with recognition performance exceeding 98% for four-wheelers and 92% for two-wheelers, ensuring reliable vehicle identification in various lighting conditions.
What number plate formats does the LPR-100 support?
The system supports HSRP, non-HSRP, Bharat Series (BH series), green (electric vehicles), red (temporary registration), hand-painted plates, and single, two, or three-lined number plates.
Can the eSSL LPR-100 be integrated with existing access control systems?
Yes, the LPR-100 offers REST APIs, TCP communication, and WebHook support for seamless integration with boom barriers, ERP platforms, HRMS software like Spine, GreytHR, HROne, and payroll systems like Candle, Saral, and Oracle.
What is the recognition speed of the eSSL LPR camera?
The LPR-100 processes a license plate in approximately 40 milliseconds, enabling a smooth, frictionless access experience without vehicles needing to stop.
Where can the eSSL LPR-100 number plate recognition system be deployed?
The system is ideal for gated residential communities, corporate office campuses, toll plazas, parking management systems, industrial facilities, and government perimeters.
