What Are Automatic Flap Barriers?

eSSL Automatic Flap Barriers are sleek, high-performance pedestrian access control gates designed to manage and secure foot traffic at entry and exit points of corporate offices, metro stations, airports, universities, gyms, clubs, and other high-traffic facilities. They serve as a sophisticated physical barrier that ensures only authorized personnel can pass[reference:5].

Unlike traditional turnstiles, our flap barriers utilize fast, silent, and reliable retractable flaps (wings) made of durable acrylic or tempered glass. Once a credential is verified by an integrated reader (e.g., RFID card, fingerprint, or face recognition), the flaps smoothly and instantly open, allowing one verified person to pass at a time. This process makes foot traffic smoother, more efficient, and more secure[reference:6].

Key Features & Benefits of eSSL Flap Barriers

• High-Speed, High-Throughput Verification: With an throughput rate of 35 to 40 persons per minute, the flaps open and close quickly (typically in ~1 sec), minimizing wait times and keeping traffic flowing efficiently during peak hours[reference:7][reference:8][reference:9].
• Advanced Anti-Tailgating & Security: Equipped with a matrix of precision infrared sensors, the system detects and prevents any unauthorized access, such as a second person attempting to "piggyback" on a single valid authentication. An alarm triggers if a tailgating attempt is detected[reference:10][reference:11].
• Quiet, Reliable DC Motor Operation: Flap barriers are powered by a sophisticated DC motor mechanism, ensuring silent, smooth, and low-wear operation[reference:12]. This design significantly reduces noise pollution and maintenance needs.
• Durable, High-Grade Construction: Built with a heavy-duty SUS304 stainless steel cabinet and impact-resistant flaps, eSSL flap barriers are designed to withstand heavy use and resist vandalism and corrosion[reference:13][reference:14].
• Seamless System Integration: Our flap barriers integrate effortlessly with any standard access control system, including RFID card readers, QR code scanners, biometric fingerprint and face recognition systems. They support Wiegand, RS485, and TCP/IP protocols[reference:15].
• Fail-Safe & Emergency Mode: In the event of a power outage or fire alarm, the flaps automatically retract into the cabinet, ensuring an open, unimpeded passageway for a safe and rapid evacuation[reference:16][reference:17].

Technical Specifications (Model-Dependent)

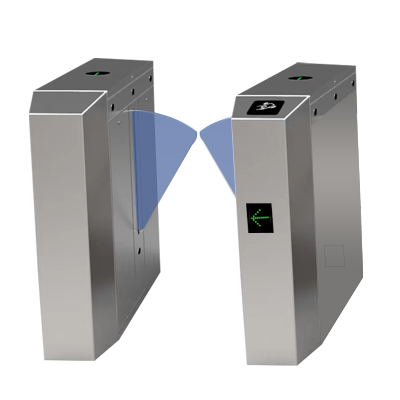

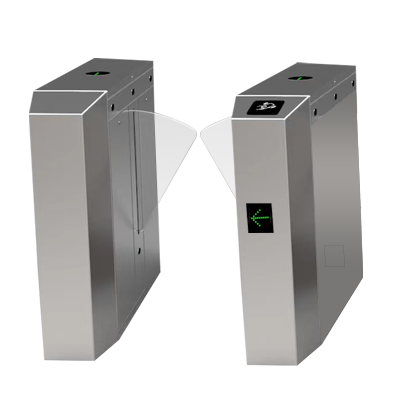

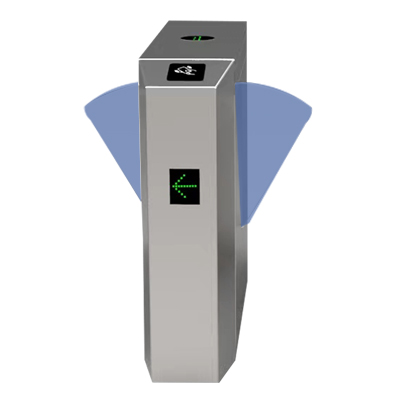

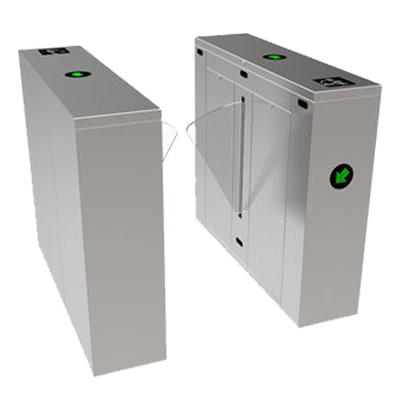

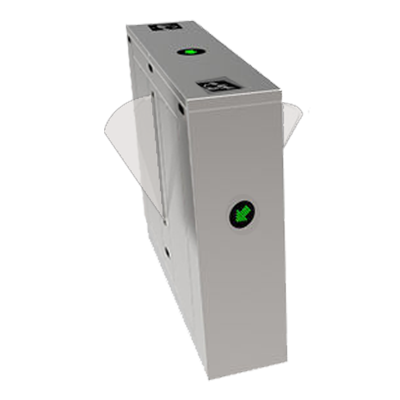

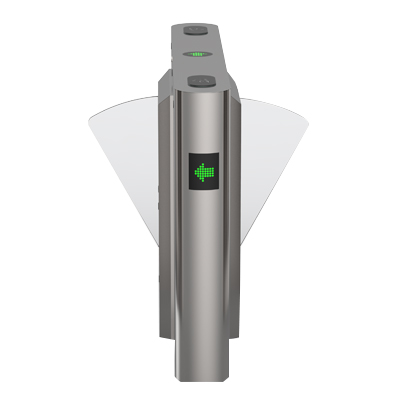

• Model Example: eSSL FB-E-2000 | eSSL FB-Y-1200 | eSSL FB-TL-2200
• Passage Width (Max): ≤ 550mm to 600mm[reference:18][reference:19]
• Throughput Rate: 35 to 40 persons per minute[reference:20][reference:21]
• Barrier Material: Impact-resistant acrylic, polycarbonate, or tempered glass[reference:22][reference:23]
• Cabinet Material: δ=1.2mm to 1.5mm SUS304 Stainless Steel[reference:24][reference:25]
• Power Supply: 100-240V AC / Operational Voltage: 24V DC
• Max Power Consumption: 30W to 50W[reference:26]
• Working Temperature: -28°C to +60°C (Indoor/Outdoor models)【1†L10,L51-L52】[reference:27]
• Working Humidity: 5% to 80%[reference:28]
• IP Rating (Outdoor Models): IP54 (dust-protected and splash-resistant)
• Communication Interfaces: Wiegand, RS485, TCP/IP, Dry Contact[reference:29]
• Dimensions (L*W*H): Approx. 1400-1600mm * 280-350mm * 980-1040mm

Flap Barrier vs. Tripod Turnstile: Which Is Right for You?

Understanding the key differences helps you choose the right solution:

• Security Level: Flap barriers offer higher security with anti-tailgating sensors. Tripod turnstiles mechanically stop unauthorized passage but are more vulnerable to tailgating.
• Speed & Traffic Flow: Flap barriers provide a smoother, faster walking pace with faster open/close times. Tripod turnstiles employ a full stop-and-push rotation motion[reference:30].
• User Experience & Aesthetics: Flap barriers are modern and quiet, ideal for premium and upscale environments. Tripod turnstiles have a more industrial appearance and a clunkier feel.
• Cost & Maintenance: Flap barriers are a higher initial investment but offer advanced features. Tripod turnstiles are typically more economical and mechanically simpler[reference:31].
• Ideal Applications: Flap barriers are best for corporate lobbies, airports, stadiums, and higher-end facilities. Tripod turnstiles are suited for industrial sites, larger employee entrances, and budget-conscious projects[reference:32].

Industry & Facility Applications

eSSL flap barriers are a versatile pedestrian access control solution deployed across a wide range of environments[reference:33]:

• Corporate Offices & IT Parks: A sleek, modern solution for managing employee & visitor access and tracking attendance[reference:34].
• Metro Stations & Airports: Processes thousands of passengers quickly and securely by integrating boarding pass scanners and biometric verification[reference:35].
• Universities & Colleges: Securely controls access to campus libraries, dormitories, and key administrative buildings.
• Hotels, Gyms & Clubs: Maintains a luxurious ambiance while effectively managing member access and security[reference:36].
• Government & Defense: Prevents unauthorized entry and ensures only cleared individuals can access sensitive facilities.
• Data Centers & Tech Labs: Provides a secure, controlled entry point for personnel, protecting critical server infrastructure.
