What Are Automatic Boom Barriers?

eSSL Automatic Boom Barriers are heavy-duty, electro-mechanical gates designed to manage and secure vehicle entry and exit points at industrial units, corporate offices, residential complexes, parking lots, toll plazas, and other sensitive locations[reference:0]. They are the first line of defense for any property, ensuring that only authorized vehicles can access the premises.

These robust barriers regulate both pedestrian and vehicle traffic, offering a hassle-free solution with quick opening and closing cycles, which is vital during peak traffic hours[reference:1]. By providing a strong physical and psychological deterrent, eSSL boom barriers are an essential component of modern perimeter security.

Why Choose eSSL Automatic Boom Barriers?

• Multiple Arm Types for Any Environment: Choose from Straight arm (standard), Folding arm (for low-clearance areas), and Fencing arm (enhanced visual deterrence) barriers[reference:2]. This ensures our boom barriers adapt to your specific site conditions.
• Extensive Boom Length Range: Available in various sizes to suit any entry point, with boom arm variances from 2m, 3m, 5m, 6m, up to 8m[reference:3]. This versatility makes them suitable for everything from narrow private driveways to wide commercial gateways.
• Durable, All-Weather Construction: Built from a robust combination of aluminum alloy (boom arm) and steel (housing), providing an excellent strength-to-weight ratio for reliable, high-speed operation[reference:4][reference:5]. The powder-coated steel finish ensures long-term resistance to corrosion and physical impact.
• Seamless Security System Integration: Integrates effortlessly with a wide range of security hardware, including RFID card readers, biometric systems, license plate recognition (LPR) cameras, and intercoms[reference:6]. This allows you to build a comprehensive, multi-layered security solution.

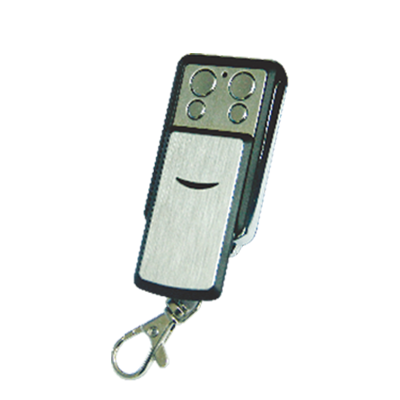

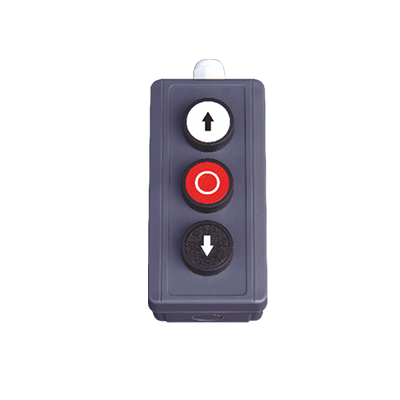

• Flexible Operation Modes: Can be operated via push button, remote control, RFID access system, or integrated loop detectors for fully automated, hands-free vehicle access[reference:7]. This flexibility enhances both security and user convenience.
• Fast Opening & Closing Speed: Ensures smooth vehicle flow with quick cycle times (typically 1-6 seconds depending on model and boom length)[reference:8]. This minimizes waiting times and keeps traffic moving efficiently.

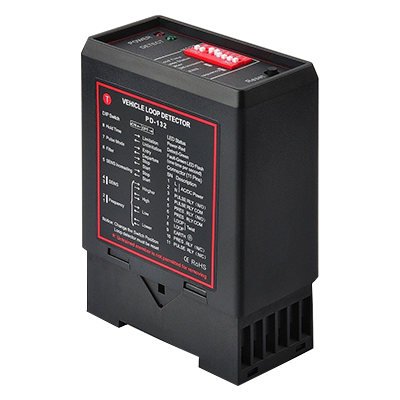

• Built-in Safety Features: Equipped with built-in safety loop detectors to prevent the barrier from closing on a vehicle, as well as emergency manual release mechanisms for use during power outages.

Technical Specifications (Model-Dependent)

• Boom Arm Length: 2m, 3m, 4m, 5m, 6m, up to 8m
• Arm Direction: Left, Right, or Uni-directional
• Opening/Closing Speed: 1 second (for shorter booms) up to 6 seconds (for 8m booms)
• Materials: Aluminum alloy boom arm / Powder-coated steel or cold-rolled steel housing[reference:9][reference:10]
• Power Supply: 230V AC / 110V AC (model dependent) / 24V DC for solar-compatible models
• Motor Type: AC gear motor (high torque) or brushless DC motor (for efficiency & longevity)
• Operating Temperature: -20°C to +70°C (suitable for most environments)
• Ingress Protection (IP) Rating: IP54 (dust-protected and splash-resistant) for housing
• Control Interfaces: Dry contact (push button), Wiegand (for readers), RS485, TCP/IP[reference:11]
• Typical Housing Dimensions: 350mm (W) x 280-350mm (D) x 1000-1060mm (H) / Weight: 45-65 kg approximately[reference:12]

Which Type of Boom Barrier is Right for You?

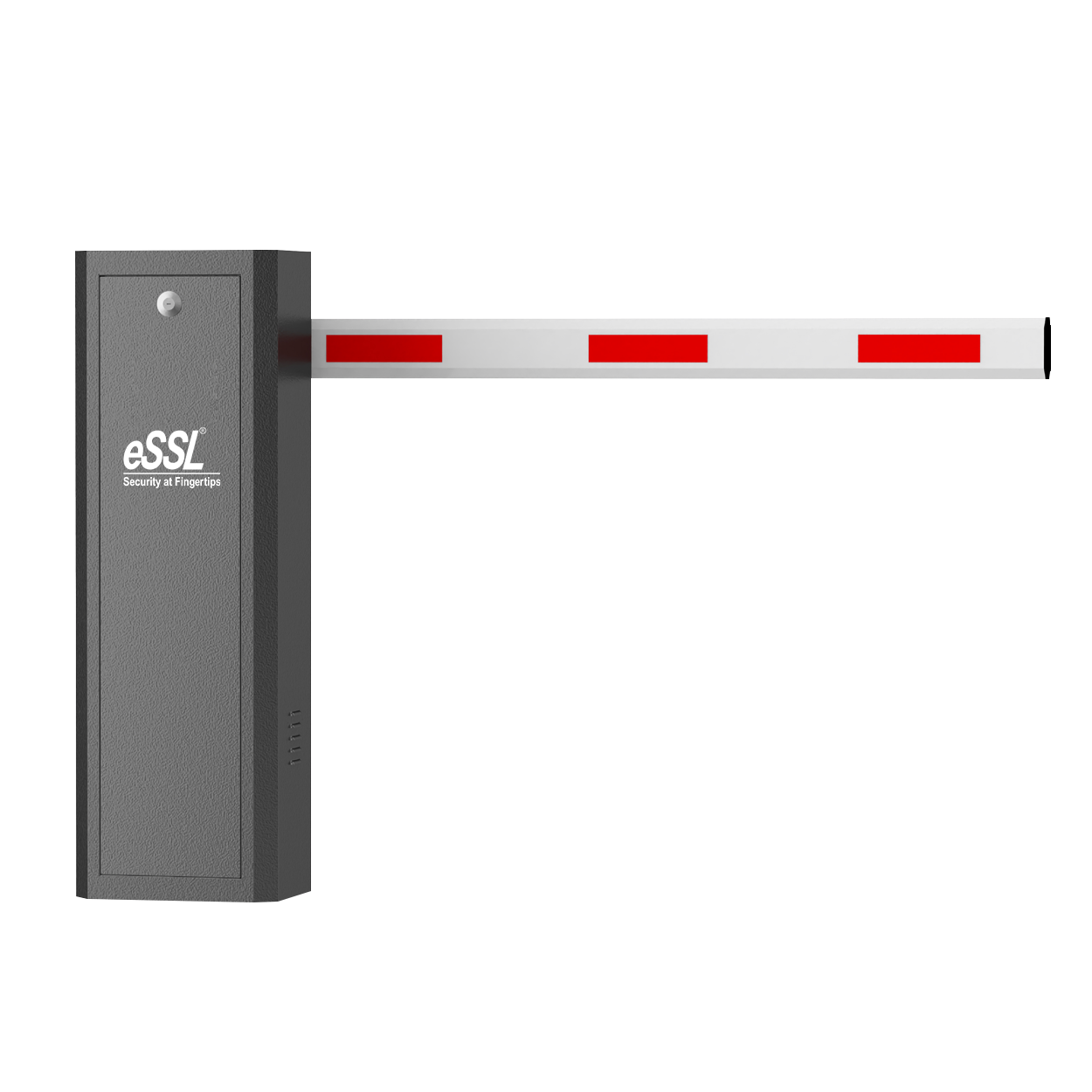

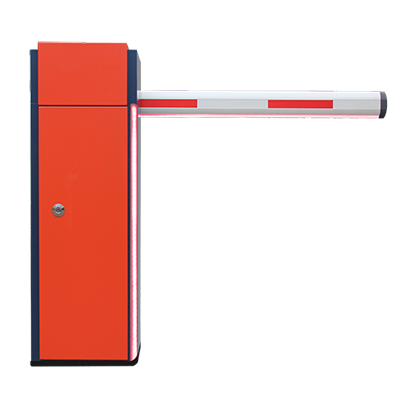

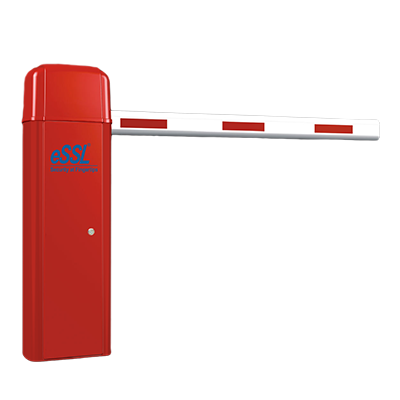

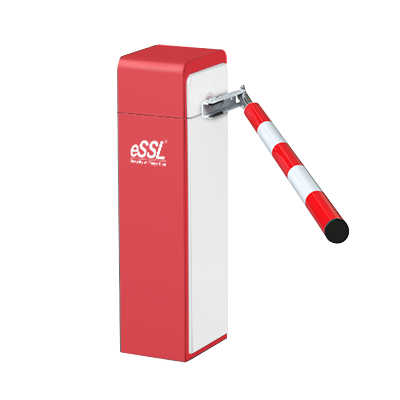

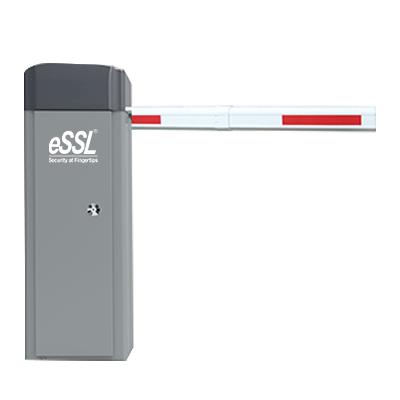

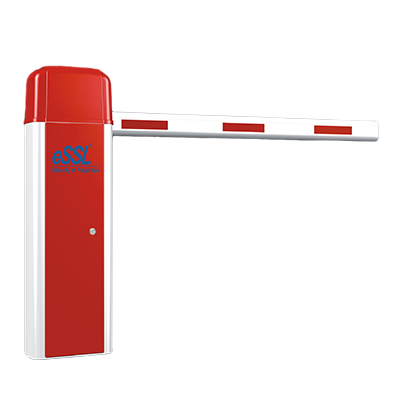

• Straight Arm Boom Barrier: The standard, most common solution for standard entry/exit lanes where there is no height restriction[reference:13]. Ideal for most commercial, industrial, and residential applications with standard overhead clearance.

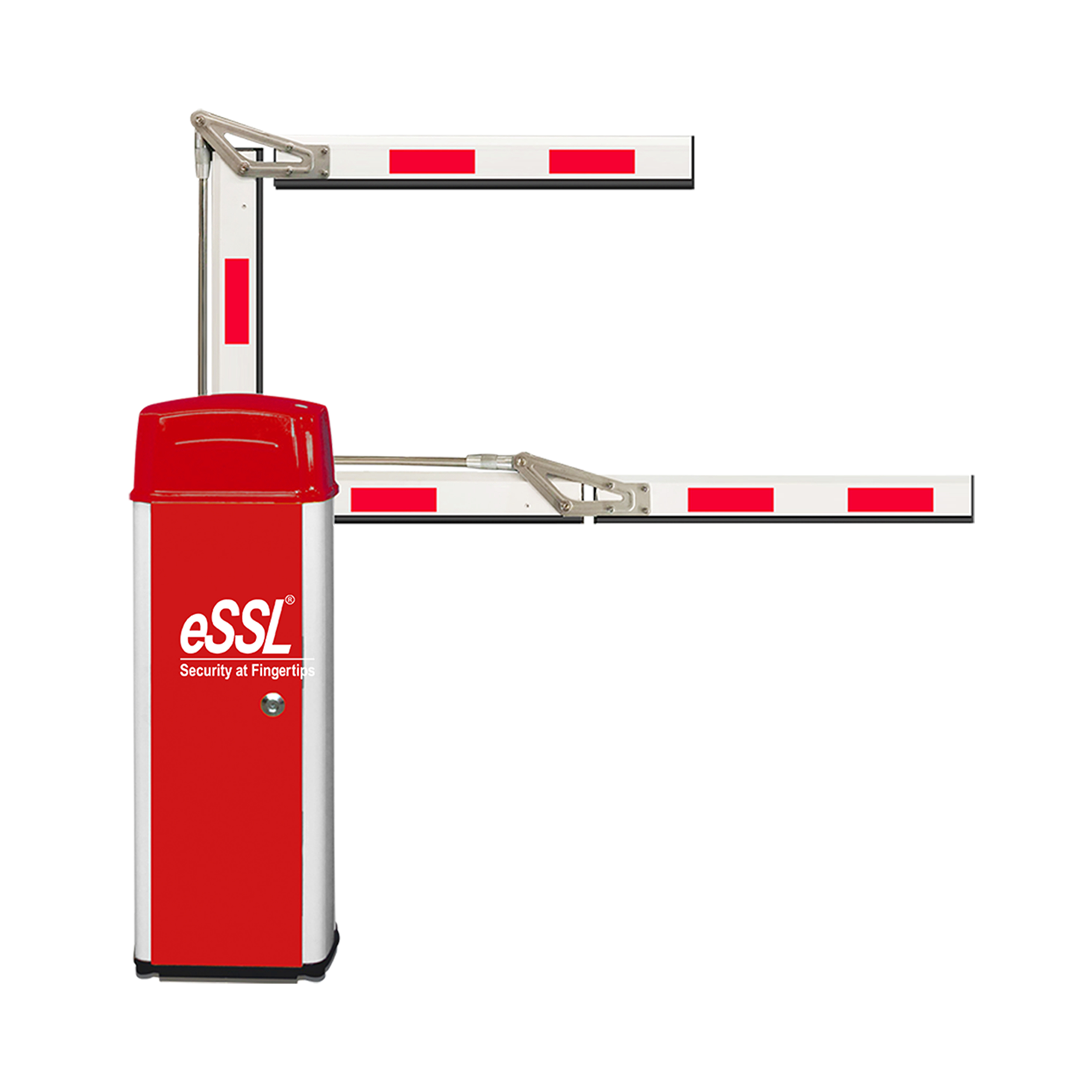

• Folding Arm Boom Barrier: Designed specifically for areas with limited overhead clearance, such as underground parking garages or canopied entrances[reference:14]. The arm folds horizontally when raised, reducing the vertical space required for operation.

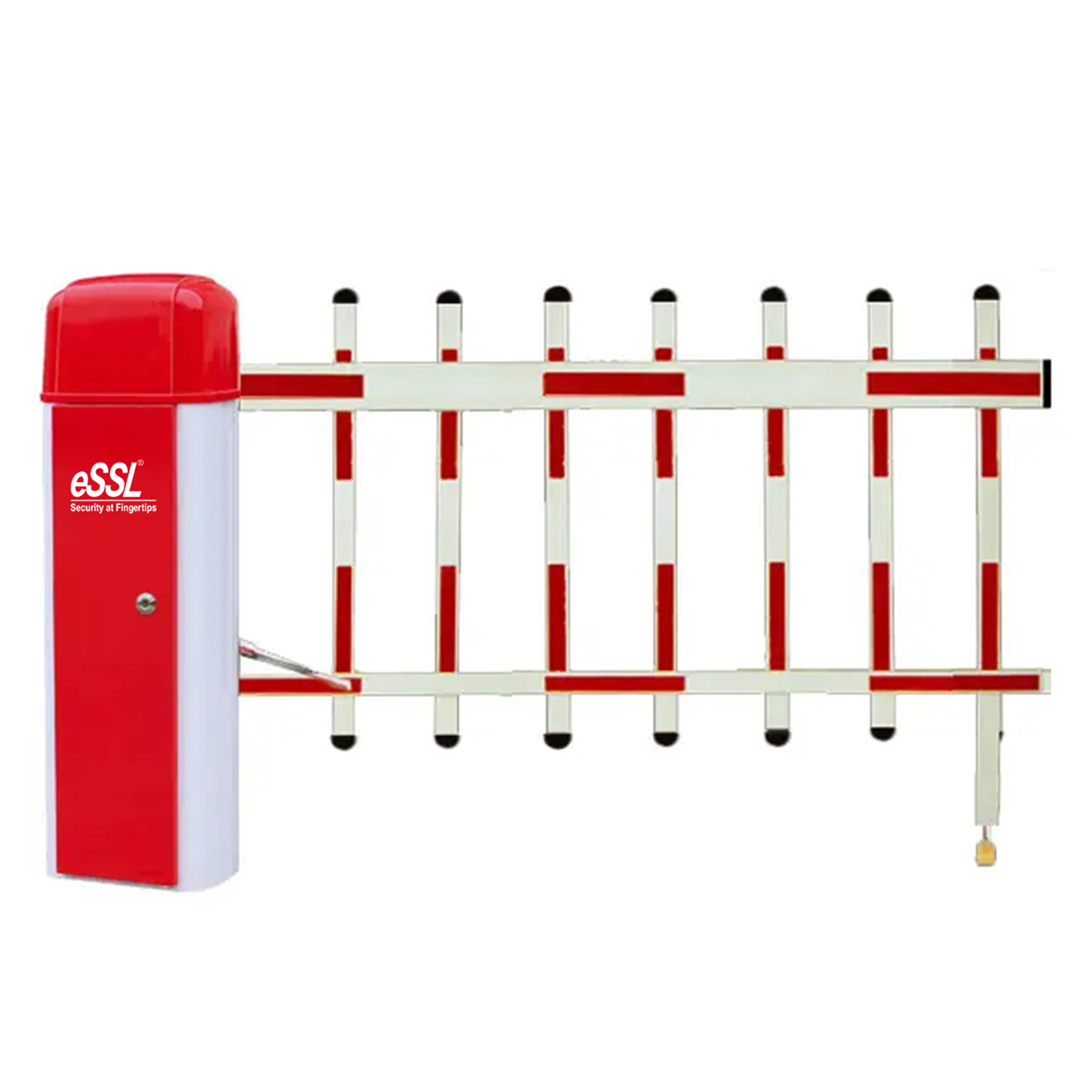

• Fencing Arm Boom Barrier: Features a gridded or mesh-like arm that provides a stronger visual and physical barrier[reference:15]. Often used in high-security environments like government buildings or critical infrastructure sites to deter determined intruders, as it is more difficult to simply duck under.

Industry & Facility Applications

eSSL boom barriers are a versatile vehicle access control solution deployed across a wide range of environments:

• Gated Residential Communities & Villas: Securely manage resident, guest, and service vehicle access while tracking entries and exits[reference:16].
• Corporate Office Parks & IT Hubs: Control access to campus parking facilities, enforce visitor management, and prevent unauthorized parking.
• Industrial & Manufacturing Facilities: Secure sensitive production areas, loading docks, and material yards from unauthorized vehicle entry[reference:17].
• Airports & Logistics Hubs: Manage access to restricted airside and landside zones for fleet vehicles, deliveries, and staff[reference:18].
• Toll Plazas & Highways: Provide reliable, high-cycle operation to manage heavy traffic flow and facilitate automated toll collection[reference:19].
• Government & Defense Installations: Secure perimeters and checkpoints with high-security fencing arm barriers and integrated access control systems.
• Retail & Shopping Malls: Automate parking entry/exit, enforce payment verification, and monitor occupancy levels to enhance customer experience[reference:20].
