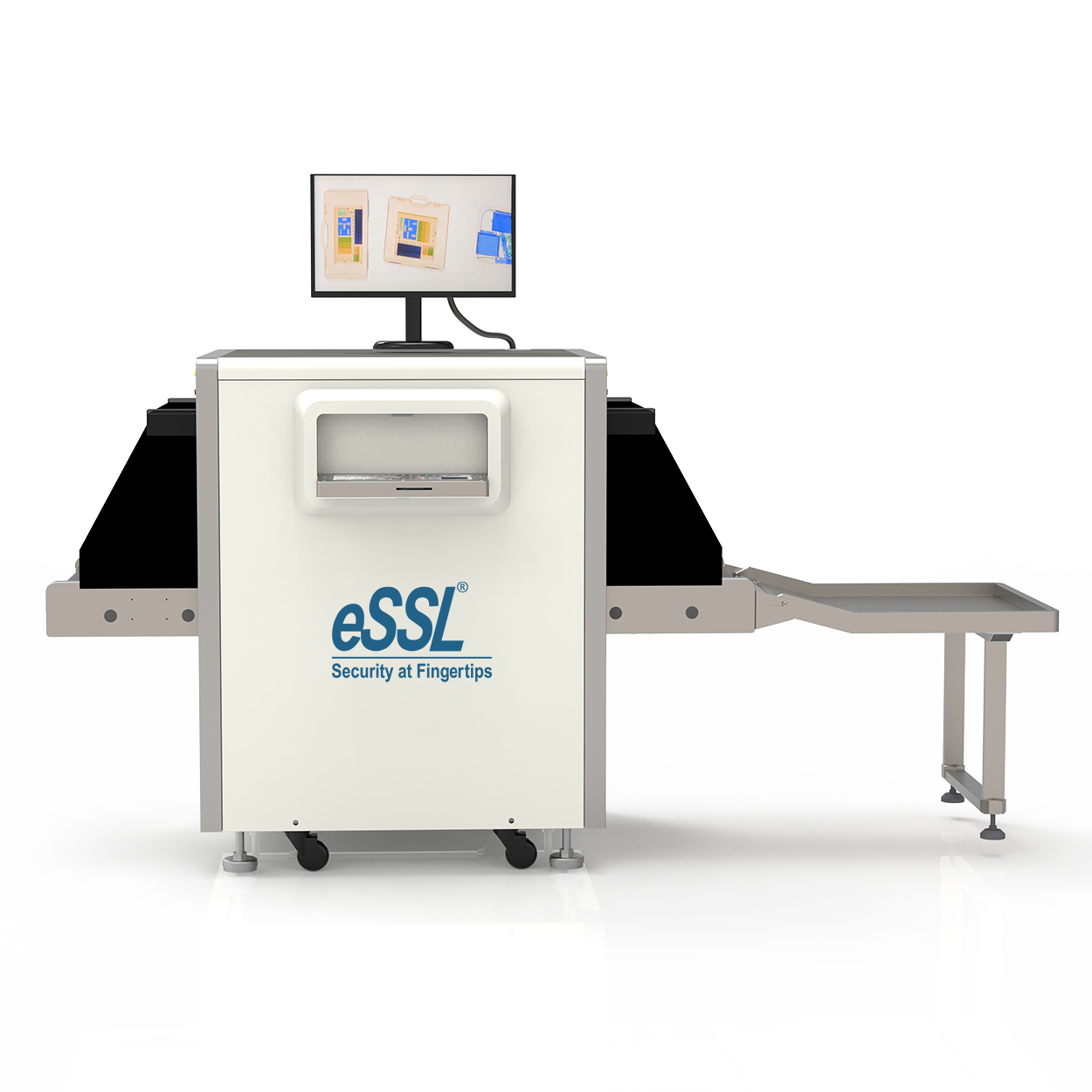

eSSL eBS6040C – Dual Energy X‑Ray Bag Scanner
The eSSL eBS6040C bag scanner is a high‑throughput dual‑energy X‑ray security screening system designed for the rapid, non‑invasive inspection of luggage, backpacks, parcels, and cargo. With a 600 mm × 400 mm tunnel, a durable belt load capacity of 150 kg, and advanced dual‑energy material discrimination, it is the trusted choice for airports, metro stations, government buildings, hotels, and industrial security checkpoints.
The eSSL eBS6040C is a reliable, high‑capacity dual‑energy X‑ray bag scanner. It meets the demands of modern security environments with a 160 kV generator, L‑shaped 24‑bit detector array, and advanced HiTrax electronics. The system produces colour‑enhanced images down to AWG 39 wire resolution, helping operators spot weapons, explosives, batteries, and contraband in seconds. The scanner's modular full‑digital ASIC platform, real‑time self‑diagnostics, and rugged construction minimise downtime and simplify maintenance. With a typical throughput of ~720 bags per hour and the ability to securely store over 100,000 images, the eBS6040C is purpose‑built for locations where security, speed, and audit trails are critical.
🔑 Key Features – eSSL eBS6040C Dual Energy Bag Scanner
✅ 600 × 400 mm Tunnel
Compact tunnel size of 600 mm width × 400 mm height, ideal for screening hand luggage, backpacks, briefcases, and small parcels.
Compact tunnel size of 600 mm width × 400 mm height, ideal for screening hand luggage, backpacks, briefcases, and small parcels.
✅ 150 kg Conveyor Load Capacity
Heavy‑duty belt supports up to 150 kg uniform load, processing heavy freight without overloading the system or slowing throughput.
Heavy‑duty belt supports up to 150 kg uniform load, processing heavy freight without overloading the system or slowing throughput.
✅ Dual‑Energy X‑Ray Technology
160 kV generator with dual‑energy detection precisely separates organic (orange), inorganic (blue), and mixed (green) materials for superior threat identification.
160 kV generator with dual‑energy detection precisely separates organic (orange), inorganic (blue), and mixed (green) materials for superior threat identification.
✅ 40 AWG Wire Resolution (0.0787 mm)
Exceptional wire resolution delivers crystal‑clear imaging to detect the smallest metallic threats.
Exceptional wire resolution delivers crystal‑clear imaging to detect the smallest metallic threats.
✅ 0.22 m/s Conveyor Speed
High‑speed belt ensures up to 720 bags per hour, ideal for busy checkpoints where every second counts.
High‑speed belt ensures up to 720 bags per hour, ideal for busy checkpoints where every second counts.
✅ L‑Shaped 24‑Bit Detector Array
High‑sensitivity L‑type photodiode array captures crisp, detailed images with 24‑bit colour depth for enhanced detection.
High‑sensitivity L‑type photodiode array captures crisp, detailed images with 24‑bit colour depth for enhanced detection.
✅ 100,000+ Image Storage
Massive onboard storage for real‑time image archiving, enabling comprehensive audit trails, incident investigation, and operator training.
Massive onboard storage for real‑time image archiving, enabling comprehensive audit trails, incident investigation, and operator training.
✅ Advanced Image Processing Suite
Includes edge enhancement, high/low penetration, magnifier (eagle eye), colour/BW/negative, brightness adjustment, and image restoration.
Includes edge enhancement, high/low penetration, magnifier (eagle eye), colour/BW/negative, brightness adjustment, and image restoration.
✅ One‑Key Shutdown & Auto Control
X‑ray transmission is under automatic control, preventing accidental exposure. A convenient key‑controlled one‑key shutdown ensures safe and easy operation.
X‑ray transmission is under automatic control, preventing accidental exposure. A convenient key‑controlled one‑key shutdown ensures safe and easy operation.
✅ Low Radiation & Film‑Safe
Leakage radiation < 0.06 μGy/h; single‑inspection dosage < 1.0 μGy. Safe for ISO 1600 film, food, and electronic devices.
Leakage radiation < 0.06 μGy/h; single‑inspection dosage < 1.0 μGy. Safe for ISO 1600 film, food, and electronic devices.
📊 Technical Specifications – eSSL eBS6040C
| Product Model | eSSL eBS6040C |
|---|---|
| Product Category | Dual‑Energy X‑Ray Baggage Scanner |
| Tunnel Size (W × H) | 600 mm × 400 mm | Conveyor Speed | 0.22 m/s |
| Conveyor Max Load | 150 kg (uniform load) |
| Throughput Rate | ~720 bags/hour (operator‑dependent) |
| Single Inspection Dosage | < 1.0 μGy |
| Leakage Radiation | < 0.06 μGy/h (at 5 cm from outer surface) | Wire Resolution | 40 AWG (0.0787 mm metal line) |
| Spatial Resolution | 1.0 mm horizontal; 1.0 mm vertical |
| Steel Penetration | 39 mm |
| Film Safety | ISO 1600 (safe) |
| X‑Ray Generator Type | Dual‑energy, 160 kV generator |
| Orientation | Upward (top to bottom) |
| Anode Voltage | 160 kV (adjustable) |
| Tube Current | 0.6–1.0 mA (adjustable) |
| Detector Type | L‑shaped photodiode array, 24‑bit colour |
| Image Storage Capacity | 100,000+ images (real‑time, hard‑disk based) |
| Display | 19‑inch high‑resolution colour LCD | Operating System | Windows‑based |
| Network Interface | LAN (supports multi‑terminal baggage checking) |
| Power Supply | 220 VAC (±10 %), 50 ±3 Hz |
| Max Power Consumption | 1.0 kW |
| Noise Level | < 58 dB |
| Operating Temperature / Humidity | 0 °C to 45 °C / 20 % to 95 % (non‑condensing) |
| Dimensions (L×W×H) | Product‑specific; contact eSSL Pune for details |
| Net Weight | Weight information available on request |
⚙️ Why Dual‑Energy Technology Matters
🎨 Precise Material Identification
Dual‑energy scanners use two X‑ray energy levels to calculate the effective atomic number of materials – organics appear orange, inorganics blue, and mixtures green. This dramatically improves detection of explosives, narcotics, and weapons.
Dual‑energy scanners use two X‑ray energy levels to calculate the effective atomic number of materials – organics appear orange, inorganics blue, and mixtures green. This dramatically improves detection of explosives, narcotics, and weapons.
🚫 Reduced False Alarms
Because operators can visually distinguish between harmless organics (food, paper, clothing) and threat materials, dual‑energy systems significantly lower the false alarm rate while improving true threat detection.
Because operators can visually distinguish between harmless organics (food, paper, clothing) and threat materials, dual‑energy systems significantly lower the false alarm rate while improving true threat detection.
💣 Explosive & Drug Detection
Many explosives and narcotics have distinct atomic numbers that fall into the organic category. Dual‑energy colour coding makes these materials stand out against background clutter, enabling faster and more accurate threat identification.
Many explosives and narcotics have distinct atomic numbers that fall into the organic category. Dual‑energy colour coding makes these materials stand out against background clutter, enabling faster and more accurate threat identification.
📈 Compliance with International Standards
The eBS6040C meets rigorous international standards for dual‑energy X‑ray screening (ASTM, ECAC) and is approved for use in high‑security airports and cargo facilities.
The eBS6040C meets rigorous international standards for dual‑energy X‑ray screening (ASTM, ECAC) and is approved for use in high‑security airports and cargo facilities.
🏢 Where to Deploy the eSSL eBS6040C Bag Scanner
✈️ Airports & Aviation Security
Check‑in baggage, cabin luggage, and air‑cargo screening – the dual‑energy capability makes it ideal for aviation security.
Check‑in baggage, cabin luggage, and air‑cargo screening – the dual‑energy capability makes it ideal for aviation security.
🚉 Metro & Railway Stations
High‑throughput passenger baggage inspection for weapons and explosives at public transport hubs.
High‑throughput passenger baggage inspection for weapons and explosives at public transport hubs.
🏛️ Government & Public Buildings
Courthouses, legislative buildings, prisons, embassies, and municipal offices use the eBS6040C for visitor package screening.
Courthouses, legislative buildings, prisons, embassies, and municipal offices use the eBS6040C for visitor package screening.
🏢 Corporate Campuses & IT Parks
Secure mailrooms, package receiving areas, and employee entrance checkpoints with a reliable bag scanner.
Secure mailrooms, package receiving areas, and employee entrance checkpoints with a reliable bag scanner.
🏭 Industrial & Manufacturing Facilities
Prevent theft, inspect raw materials, and screen outgoing cargo for compliance at factory gatehouses.
Prevent theft, inspect raw materials, and screen outgoing cargo for compliance at factory gatehouses.
🏨 Hotels & Large Venues
Hotel lobbies, loading bays, convention centres, stadiums, and entertainment facilities use the eBS6040C for parcel and bag inspection.
Hotel lobbies, loading bays, convention centres, stadiums, and entertainment facilities use the eBS6040C for parcel and bag inspection.
📦 Logistics Hubs & Courier Services
Automated parcel and mail screening for dangerous goods and theft prevention in courier and postal facilities.
Automated parcel and mail screening for dangerous goods and theft prevention in courier and postal facilities.
🏫 Educational Institutions
School and university campus entry screening for enhanced student safety – ideal for backpack and parcel inspection.
School and university campus entry screening for enhanced student safety – ideal for backpack and parcel inspection.
🌟 Why Choose eSSL Pune as Your Bag Scanner Partner?
Genuine eSSL Hardware
We supply factory‑fresh eBS6040C units with a full manufacturer warranty and strict compliance with eSSL security standards.
We supply factory‑fresh eBS6040C units with a full manufacturer warranty and strict compliance with eSSL security standards.
Expert Installation & Calibration
Our team handles site surveys, installation, conveyor alignment, X‑ray calibration, and operator training, ensuring your bag scanner is operational from day one.
Our team handles site surveys, installation, conveyor alignment, X‑ray calibration, and operator training, ensuring your bag scanner is operational from day one.
Seamless Network Integration
The LAN interface supports multi‑terminal baggage checking and centralised monitoring, allowing supervisors to review images from remote workstations.
The LAN interface supports multi‑terminal baggage checking and centralised monitoring, allowing supervisors to review images from remote workstations.
Best‑in‑Class Pricing & AMC Options
Competitive rates for the eSSL eBS6040C, plus optional annual maintenance contracts for preventative maintenance, calibration, and hardware support.
Competitive rates for the eSSL eBS6040C, plus optional annual maintenance contracts for preventative maintenance, calibration, and hardware support.
⚙️ Intelligent Image‑Processing for Higher Detection Accuracy
🎨 24‑Bit True Colour & Material Association
Different densities and atomic numbers are rendered with 24‑bit colour, helping operators quickly distinguish organic vs. inorganic vs. mixed items.
Different densities and atomic numbers are rendered with 24‑bit colour, helping operators quickly distinguish organic vs. inorganic vs. mixed items.
🔍 Edge Enhancement & High/Low Penetration
Sharpen object edges and adjust X‑ray penetration on the fly to reveal details hidden behind dense metallic shielding.
Sharpen object edges and adjust X‑ray penetration on the fly to reveal details hidden behind dense metallic shielding.
🔬 Eagle Eye Zoom
A continuous zoom function allows operators to examine suspicious areas at high magnification without loss of clarity.
A continuous zoom function allows operators to examine suspicious areas at high magnification without loss of clarity.
♻️ Image Recall & Real‑time Storage
Recall previous images for post‑event analysis, training, or quality audits; store any image in real time for incident investigation.
Recall previous images for post‑event analysis, training, or quality audits; store any image in real time for incident investigation.
⚫ Organic/Inorganic Matter Removal
Selectively block or highlight organic/inorganic layers, making it easier to identify explosives, narcotics, or weapons.
Selectively block or highlight organic/inorganic layers, making it easier to identify explosives, narcotics, or weapons.
💾 Date/Time & Operator Logging
Every scanned image is time‑stamped and linked to the operator’s ID, ensuring full accountability and audit‑readiness.
Every scanned image is time‑stamped and linked to the operator’s ID, ensuring full accountability and audit‑readiness.
❓ Frequently Asked Questions – Bag Scanner
What is the tunnel size of the eSSL eBS6040C bag scanner?
The eSSL eBS6040C has a tunnel size of 600 mm (W) × 400 mm (H), making it suitable for screening hand luggage, briefcases, small parcels, and medium‑sized packages.
What is the maximum load capacity of the eBS6040C conveyor belt?
The conveyor belt can handle a maximum uniform load of 150 kg, allowing the scanner to process heavy luggage and multiple packages in a single pass.
What is the difference between single‑energy and dual‑energy X‑ray baggage scanners?
Dual‑energy scanners use two X‑ray energy levels to precisely distinguish between organic (orange) and inorganic (blue) materials, significantly improving threat detection for explosives, narcotics, and weapons hidden among organic items. The eBS6040C is a true dual‑energy system.
How many X‑ray images can the eBS6040C store?
The scanner stores over 100,000 X‑ray images in real time, with full image archiving for audits, incident investigation, and training purposes.
Is the eBS6040C safe for operators and for items being scanned?
Yes. The leakage radiation is kept below international safety limits (< 0.06 μGy/h). It is film‑safe for ISO 1600 film, and there is no residual radiation on scanned items. Food, electronics, and documents are not damaged by the X‑ray process.
