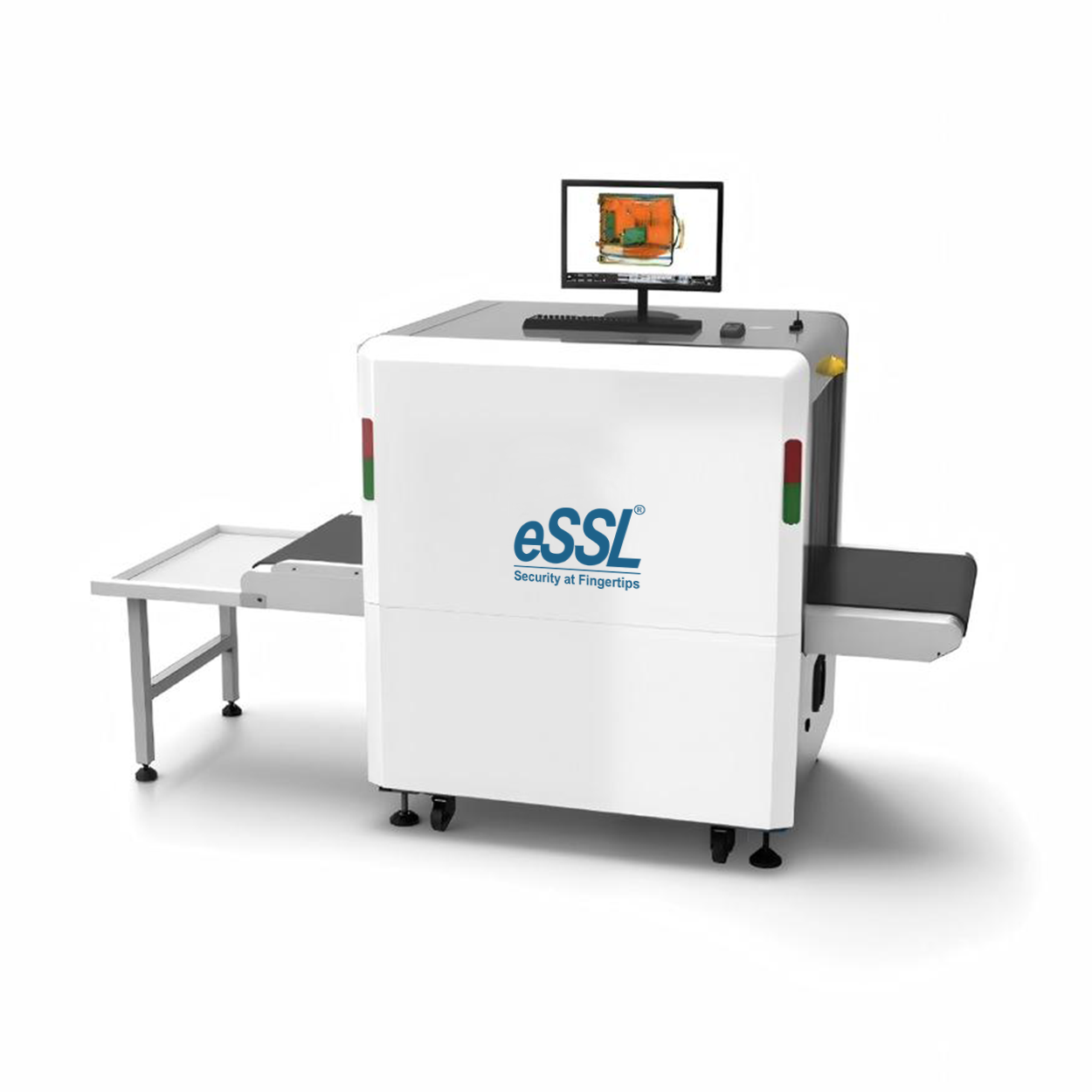

eSSL eBS‑5030A‑N – Single Energy X‑Ray Baggage Scanner
The eSSL eBS‑5030A‑N x ray scanner is a high‑performance single‑energy X‑ray security inspection system designed for the rapid, non‑intrusive screening of luggage, parcels, cargo, and small packages. With an optimised 500 mm × 300 mm tunnel, a 0.22 m/s conveyor belt, a 150 kg load capacity, a 21.5″ touchscreen LCD, and advanced image‑processing software, it is the trusted choice for airports, railway stations, government buildings, courthouses, prisons, embassies, and high‑security corporate facilities.
The eBS‑5030A‑N combines a high‑output 80 kV‑100 kV X‑ray generator with a full‑digital ASIC detection chain and a 24‑bit L‑shaped detector array. It delivers clear, colour‑coded images (organic = orange, inorganic = blue, mixed = green) that allow operators to quickly identify weapons, explosives, contraband, and other prohibited items. All images can be enhanced with a suite of real‑time processing tools, stored on an integrated 500 GB hard disk (over 100,000 images), and shared over a LAN for centralised monitoring.
📦 Product Overview – The Professional X Ray Scanner for Security Checkpoints
The eSSL eBS‑5030A‑N single‑energy X‑ray baggage scanner is the security professional's choice for mid‑sized inspection tasks. Whether you are screening passenger hand luggage at an airport checkpoint, scanning mail parcels at a courthouse / prison, or inspecting cargo at a logistics centre, its well‑proportioned 500×300 mm tunnel handles virtually all common baggage types without occupying excessive floor space. The 0.22 m/s conveyor belt keeps the throughput high (approximately 700 bags per hour), while the 150 kg load capacity guarantees that even heavy items or multiple bags can be processed without stopping the line. The scanner is fully equipped with advanced features: a full‑digital ASIC hardware platform (improves interference immunity and imaging clarity), a 24‑bit L‑shaped detector, a 21.5″ touchscreen LCD (1920×1080P), and an onboard PC with Windows 10 OS, Intel® Core™ i3 processor, 4 GB RAM, and a 500 GB hard disk for real‑time image storage (over 100,000 images). An intuitive operator interface, multi‑language support, and one‑key shutdown make daily operation simple and safe.
📊 Technical Specifications – eSSL eBS‑5030A‑N
| Product Model | eSSL eBS‑5030A‑N |
|---|---|
| Category | Single‑Energy X‑Ray Baggage Scanner |
| Tunnel Size (W × H) | 500 mm × 300 mm |
| Conveyor Speed / Max Load | 0.22 m/s / 150 kg (uniform load) |
| Conveyor Belt Height | 660 mm (from ground) |
| X‑Ray Source / Orientation | 80 kV – 100 kV adjustable, 0.5 mA; Upward |
| Detector Type | L‑shaped 24‑bit photodiode array (full‑digital ASIC) |
| Wire Resolution / Spatial Resolution | AWG38 (Φ0.102 mm) / 1.0 mm H & V |
| Penetration (Steel Plate) | 12 mm steel |
| Single Inspection Dosage / Leakage Dose | < 5 μGy/h / < 0.5 μGy/h at 50 mm from housing |
| Film Safety / Radiation Compliance | ISO 1600 safe; IEC, CE and international safety standards |
| Display / Resolution | 21.5″ touchscreen LCD / 1920×1080P |
| Image Storage | Over 100,000 images (on 500 GB hard disk, real‑time archiving) |
| Image Processing Tools | Colour/BW, local enhancement, high/low/super penetration, organic/inorganic removal, inversion, brightness/darkening, 1‑64× continuous zoom (eagle‑eye), pseudo‑colour, image restoration, recall & replay |
| Advanced System Functions | One‑key shutdown, self‑diagnosis, multi‑level user management, TIP (threat image projection), curve/keyboard diagnostics, remote operation software, LAN networking (multi‑terminal check), energy‑saving standby mode |
| Operating System / Processor | Windows 10 / Intel Core i3, 4 GB RAM, 500 GB HDD |
| Power / Consumption | AC 220 V (±10 %), 50 ±3 Hz / 500 W (max) |
| Noise / Working Temp / Humidity | < 55 dB / 5 °C to 40 °C / 10 % – 90 % (non‑condensing) |
| Storage Temp / Humidity | -20 °C to 40 °C / 0 % – 90 % RH |
| Device Dimensions (L×W×H) / Net Weight | 1475 mm × 784 mm × 1100 mm / 220 kg |
| Gross Weight / Package | 280 kg / 540 L × 840 W × 1340 H (mm) |
🔑 Core Features – eSSL eBS‑5030A‑N X Ray Scanner
✅ 500×300 mm Tunnel (Briefcases / Hand Luggage / Parcels)
Ideal for inspecting standard carry‑on luggage, small cargo, mail parcels and express courier bags.
Ideal for inspecting standard carry‑on luggage, small cargo, mail parcels and express courier bags.
✅ Powerful 80‑100 kV Adjustable X‑Ray Generator
Single‑energy X‑ray source with 0.5 mA tube current – optimised for fast throughput while maintaining high‑quality penetration imaging.
Single‑energy X‑ray source with 0.5 mA tube current – optimised for fast throughput while maintaining high‑quality penetration imaging.
✅ 24‑Bit L‑Shaped Detector & Full‑Digital ASIC Design
The latest ASIC full‑digital solution offers high integration, strong anti‑interference capability, and exceptionally clear imaging effects.
The latest ASIC full‑digital solution offers high integration, strong anti‑interference capability, and exceptionally clear imaging effects.
✅ 21.5″ High‑Resolution Touchscreen
Full HD (1920×1080P) 21.5‑inch LCD touchscreen with intuitive graphical interface for quick access to scanning and image‑processing controls.
Full HD (1920×1080P) 21.5‑inch LCD touchscreen with intuitive graphical interface for quick access to scanning and image‑processing controls.
✅ 0.22 m/s Conveyor Belt / 150 kg Load Capacity
High‑speed belt ensures up to 700 bags/hour throughput; the reinforced belt handles heavy shipments and multiple bags without interruption.
High‑speed belt ensures up to 700 bags/hour throughput; the reinforced belt handles heavy shipments and multiple bags without interruption.
✅ 100,000+ Real‑Time Image Storage (500 GB Hard Disk)
Every scanned image is timestamped and saved for full audit trails, incident investigation and operator training.
Every scanned image is timestamped and saved for full audit trails, incident investigation and operator training.
✅ Advanced Image‑Processing Suite
Colour / BW, local enhancement, high/low/super‑pass, organic/inorganic removal, inversion, brightness adjustment, 1‑64× stepless zoom, magnifying glass, pseudo‑colour, image restoration, replay, and more.
Colour / BW, local enhancement, high/low/super‑pass, organic/inorganic removal, inversion, brightness adjustment, 1‑64× stepless zoom, magnifying glass, pseudo‑colour, image restoration, replay, and more.
✅ Colour Material Identification (Organic / Inorganic / Mixed)
Organic materials appear in orange, inorganic materials in blue, and mixtures in green – speeds up threat identification for explosives, narcotics, and weapons.
Organic materials appear in orange, inorganic materials in blue, and mixtures in green – speeds up threat identification for explosives, narcotics, and weapons.
✅ One‑Key Shutdown & Automatic X‑Ray Control
X‑ray emission is under automatic control to avoid accidental exposure; one‑key shutdown ensures safe, convenient operation.
X‑ray emission is under automatic control to avoid accidental exposure; one‑key shutdown ensures safe, convenient operation.
✅ LAN Networking (Multi‑Terminal Baggage Checking)
Network interface supports connection to a LAN, allowing centralised image review and management from multiple workstations.
Network interface supports connection to a LAN, allowing centralised image review and management from multiple workstations.
✅ Enhanced Operator Support – TIP, Self‑Diagnosis & Energy‑Saving Mode
Threat Image Projection (TIP) for operator training, real‑time self‑diagnosis, multi‑level user management, energy‑saving standby mode, and a full activity log (user logon/logoff, X‑ray and IR generator notifications).
Threat Image Projection (TIP) for operator training, real‑time self‑diagnosis, multi‑level user management, energy‑saving standby mode, and a full activity log (user logon/logoff, X‑ray and IR generator notifications).
✅ Robust & Safe – IEC/CE Certified, Low Radiation
Leakage radiation < 0.5 μGy/h, single inspection dosage < 5 μGy/h; safe for ISO 1600 film, food and electronics.
Leakage radiation < 0.5 μGy/h, single inspection dosage < 5 μGy/h; safe for ISO 1600 film, food and electronics.
⚙️ How the eSSL eBS‑5030A‑N X Ray Scanner Works
📦 Step 1: Baggage Conveying
Luggage or parcels are placed on the 0.22 m/s conveyor belt and move through the 500×300 mm tunnel. An infrared sensor triggers the X‑ray generator automatically.
Luggage or parcels are placed on the 0.22 m/s conveyor belt and move through the 500×300 mm tunnel. An infrared sensor triggers the X‑ray generator automatically.
🔦 Step 2: X‑Ray Penetration & Digitisation
The 80‑100 kV X‑ray beam passes through the baggage. Different materials absorb X‑rays at different rates. The L‑shaped 24‑bit detector array captures the attenuated rays and converts them into a high‑contrast digital signal.
The 80‑100 kV X‑ray beam passes through the baggage. Different materials absorb X‑rays at different rates. The L‑shaped 24‑bit detector array captures the attenuated rays and converts them into a high‑contrast digital signal.
🎨 Step 3: Colour Material Discrimination
By analysing the effective atomic number (Z) of materials, the system displays organic items in orange, inorganic items in blue, and mixtures in green – vastly improving the speed and accuracy of threat detection.
By analysing the effective atomic number (Z) of materials, the system displays organic items in orange, inorganic items in blue, and mixtures in green – vastly improving the speed and accuracy of threat detection.
🖥️ Step 4: Image Processing & Threat Identification
Operators use the 21.5″ touchscreen to apply local enhancement, high/low penetration, zoom (1‑64×), or organic/inorganic removal to clarify suspicious areas. The Threat Image Projection (TIP) function overlays simulated threats during training to improve operator detection skills.
Operators use the 21.5″ touchscreen to apply local enhancement, high/low penetration, zoom (1‑64×), or organic/inorganic removal to clarify suspicious areas. The Threat Image Projection (TIP) function overlays simulated threats during training to improve operator detection skills.
💾 Step 5: Image Archiving & Audit Trail
All X‑ray images are automatically timestamped, linked to the operator ID, and stored on the 500 GB hard disk (capacity > 100,000 images). Completed scans can be retrieved later for security audits, investigations, or training.
All X‑ray images are automatically timestamped, linked to the operator ID, and stored on the 500 GB hard disk (capacity > 100,000 images). Completed scans can be retrieved later for security audits, investigations, or training.
🔌 Step 6: Centralised Management
The LAN interface enables multi‑terminal baggage checking. Supervisors can view live feeds or review stored images from any workstation on the network and integrate scan data with external ERP platforms.
The LAN interface enables multi‑terminal baggage checking. Supervisors can view live feeds or review stored images from any workstation on the network and integrate scan data with external ERP platforms.
🏢 Where to Deploy the eSSL eBS‑5030A‑N Baggage Scanner
✈️ Airports & Aviation
Check‑in baggage, cabin hand luggage, and small cargo inspection.
Check‑in baggage, cabin hand luggage, and small cargo inspection.
🚉 Metro & Railway Stations
High‑throughput passenger baggage inspection for weapons, explosives, and contraband.
High‑throughput passenger baggage inspection for weapons, explosives, and contraband.
🏛️ Government & Public Buildings
Courthouses, prisons, embassies, and legislative buildings – secure visitor package screening.
Courthouses, prisons, embassies, and legislative buildings – secure visitor package screening.
🏢 Corporate Campuses & IT Parks
Corporate mailrooms, package receiving areas, and employee entry checkpoints.
Corporate mailrooms, package receiving areas, and employee entry checkpoints.
🏭 Industrial & Manufacturing Facilities
Inspect incoming supplies, raw materials, and outgoing cargo for theft prevention and compliance.
Inspect incoming supplies, raw materials, and outgoing cargo for theft prevention and compliance.
🏨 Hotels & Large Venues
Hotels, convention centres, stadiums – screen guest luggage, vendor deliveries, and service entrances.
Hotels, convention centres, stadiums – screen guest luggage, vendor deliveries, and service entrances.
📦 Logistics Hubs & Courier Services
Parcel and mail screening for dangerous goods; centralised image management over the LAN.
Parcel and mail screening for dangerous goods; centralised image management over the LAN.
🏫 Educational Institutions
School and university campus entry screening for back‑to‑school events, exam‑hall parcel processing, and daily bag‑checks.
School and university campus entry screening for back‑to‑school events, exam‑hall parcel processing, and daily bag‑checks.
🌟 Why Choose eSSL Pune as Your X Ray Scanner Partner?
Genuine eSSL Hardware
We supply factory‑fresh eBS‑5030A‑N units with full manufacturer warranty, IEC/CE certification, and strict compliance with eSSL security standards.
We supply factory‑fresh eBS‑5030A‑N units with full manufacturer warranty, IEC/CE certification, and strict compliance with eSSL security standards.
Expert Installation & Calibration
Our Pune‑based engineers handle site surveys, conveyor alignment, X‑ray calibration, and operator training, ensuring your x ray scanner is operational from day one.
Our Pune‑based engineers handle site surveys, conveyor alignment, X‑ray calibration, and operator training, ensuring your x ray scanner is operational from day one.
Best‑in‑Class Pricing & AMC Options
Competitive rates for the eBS‑5030A‑N, plus optional annual maintenance contracts for preventative maintenance, calibration, and hardware support.
Competitive rates for the eBS‑5030A‑N, plus optional annual maintenance contracts for preventative maintenance, calibration, and hardware support.
❓ Frequently Asked Questions – X Ray Scanner
What is the tunnel size of the eSSL eBS‑5030A‑N x ray scanner?
The eSSL eBS‑5030A‑N has a tunnel size of 500 mm (W) × 300 mm (H), which is optimised for briefcases, hand luggage, mail packages, express parcels, and small cargo items.
Is the eBS‑5030A‑N safe for operators and the items being scanned?
Yes. The leakage radiation is below 0.5 μGy/h at 50 mm from the housing, well within international safety standards. The single inspection dose is less than 5 μGy/h, the scanner is film‑safe for ISO 1600 film, and there is no residual X‑ray radiation on scanned items. Food, electronics and documents are not damaged by the X‑ray process.
How many images can the eBS‑5030A‑N store and what image enhancement tools are included?
The scanner stores over 100,000 X‑ray images in real time (hard‑disk based). It includes a full suite of image‑processing tools: colour/BW display, local enhancement, high/low/super pass, organic/inorganic removal, inversion, brightness/darkening adjustment, 1‑64× continuous zoom, magnifying glass, image restoration, pseudo‑colour, and image recall.
What is the maximum load capacity of the eBS‑5030A‑N conveyor belt?
The reinforced conveyor belt can handle a maximum uniform load of 150 kg, allowing high‑throughput processing of multiple bags or heavy cargo items without interrupting operations.
