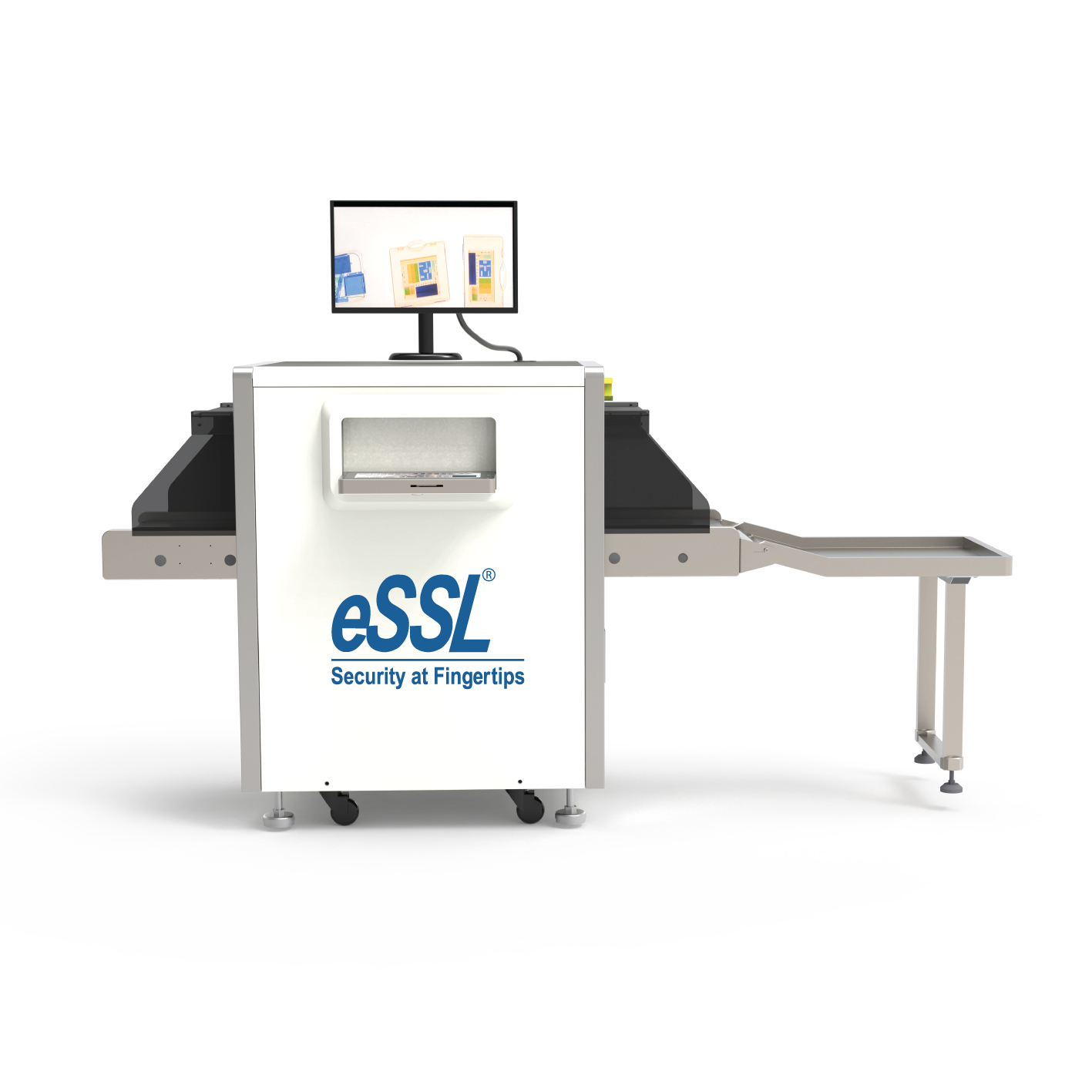

eSSL eBS‑5030A – Single Energy X‑Ray Baggage Scanner
The eSSL eBS‑5030A is a high‑reliability single‑energy X‑ray baggage scanner designed for security screening of luggage, parcels, and cargo. Featuring a 500 × 300 mm tunnel, a 150 kg conveyor load capacity, and a powerful suite of image enhancement tools, this scanner delivers dependable threat detection for airports, metro stations, hotels, and government facilities.
The eSSL eBS‑5030A is a compact yet powerful X‑ray security inspection system designed for non‑intrusive screening of hand luggage, briefcases, small parcels, and medium‑sized packages. An X‑ray beam passes through the baggage as it moves along the conveyor belt; the L‑shaped 24‑bit photodiode array detector captures the transmitted radiation and converts it into a high‑resolution digital image. Security personnel can then inspect the image on a 19‑inch high‑resolution colour LCD display to identify potential threats such as weapons, explosives, or contraband.
🔑 Key Features – eSSL eBS‑5030A Baggage Scanner
✅ 500 × 300 mm Tunnel Size
Ideal for hand luggage, briefcases, postal packages, and small to medium parcels – the most common security checkpoint dimensions.
Ideal for hand luggage, briefcases, postal packages, and small to medium parcels – the most common security checkpoint dimensions.
✅ 150 kg Conveyor Load Capacity
Heavy‑duty belt supports up to 150 kg uniform load, processing multiple bags without overloading the system.
Heavy‑duty belt supports up to 150 kg uniform load, processing multiple bags without overloading the system.
✅ 24‑Bit L‑Shaped Detector Array
High sensitivity L‑type photodiode array captures crisp, detailed images with 24‑bit colour depth for improved material discrimination.
High sensitivity L‑type photodiode array captures crisp, detailed images with 24‑bit colour depth for improved material discrimination.
✅ 100,000 Image Storage
Store up to 100,000 scan images in real time, providing a complete audit trail for security logs, incident investigation, and training.
Store up to 100,000 scan images in real time, providing a complete audit trail for security logs, incident investigation, and training.
✅ Advanced Image Processing Suite
Includes high/low penetration, edge enhancement, zoom (Eagle Eye), colour/BW/inversion, brightness/contrast, and image replay for precise threat identification.
Includes high/low penetration, edge enhancement, zoom (Eagle Eye), colour/BW/inversion, brightness/contrast, and image replay for precise threat identification.
✅ One‑Key Shutdown & Auto Control
X‑ray transmission operates under automatic control to avoid accidental exposure. A key‑controlled shutdown ensures safe, convenient operation.
X‑ray transmission operates under automatic control to avoid accidental exposure. A key‑controlled shutdown ensures safe, convenient operation.
✅ Low Radiation & Film‑Safe
Leakage radiation below 0.06 μGy/h (well within international safety limits). Safe for ISO 1600 film, food, and electronics.
Leakage radiation below 0.06 μGy/h (well within international safety limits). Safe for ISO 1600 film, food, and electronics.
✅ LAN Networking & Multi‑Terminal Support
The network interface connects to a LAN, enabling centralised monitoring and remote image review across multiple workstations.
The network interface connects to a LAN, enabling centralised monitoring and remote image review across multiple workstations.
📊 Technical Specifications – eSSL eBS‑5030A
| Product Model | eSSL eBS‑5030A |
|---|---|
| Product Category | Single‑Energy X‑Ray Baggage Scanner |
| Tunnel Size (W × H) | 500 mm × 300 mm |
| Conveyor Speed | 0.22 m/s |
| Conveyor Max Load | 150 kg (uniform load) |
| Single Inspection Dosage | < 1.32 μGy |
| Leakage Radiation | < 0.06 μGy/h |
| Wire Resolution | 40 AWG (0.0787 mm metal line) |
| Steel Penetration | 10 mm |
| Film Safety | ISO 1600 (safe) |
| X‑Ray Orientation | Upward (top to bottom) |
| Anode Voltage | 80 kV (adjustable) |
| Tube Current | 0.4–0.7 mA (adjustable) |
| X‑Ray Divergence Angle | 60° |
| Detector Type | L‑shaped photodiode array, 24‑bit depth |
| Image Storage Capacity | 100,000 images (real‑time, customisable) |
| Display | 19‑inch high‑resolution colour LCD monitor (Philips) |
| Image Output Formats | Colour/BW, Negative, High/Low penetration, Organic/Inorganic |
| Operating System | Windows‑based |
| Operating Temperature | 0 °C to +45 °C |
| Storage Temperature | -20 °C to +60 °C |
| Relative Humidity | 20 % to 95 % (non‑condensing) |
| System Power | 220 VAC (±10 %), 50 ±3 Hz |
| Power Consumption (Max) | 1.0 kW |
| Noise Level | < 65 dB |
| Net Weight | 410 kg |
| Package Dimensions (L×W×H) | 1810 mm × 910 mm × 1450 mm |
| Network Interface | LAN (supports multi‑terminal baggage checking) |
⚙️ Intelligent Image Processing for Reliable Detection
🎨 26‑Colour Management Architecture
Different materials appear in distinct colours, helping operators quickly distinguish between organic, inorganic, and mixed substances.
Different materials appear in distinct colours, helping operators quickly distinguish between organic, inorganic, and mixed substances.
📷 Edge Enhancement & High/Low Penetration
Sharpens object edges and adjusts penetration power to reveal details behind dense metallic shielding.
Sharpens object edges and adjusts penetration power to reveal details behind dense metallic shielding.
🔍 Eagle Eye Zoom (Up to 64×)
Enables continuous, high‑magnification inspection of suspicious areas for thorough threat assessment.
Enables continuous, high‑magnification inspection of suspicious areas for thorough threat assessment.
🔄 Image Replay & Batch Processing
Playback stored images sequentially for post‑event analysis, training, or quality audits.
Playback stored images sequentially for post‑event analysis, training, or quality audits.
⚫ Black/White & Colour Inversion
Alternative viewing modes that can bring out otherwise hidden details in dense or overlapped objects.
Alternative viewing modes that can bring out otherwise hidden details in dense or overlapped objects.
💾 Date/Time & Operator Logging
Every scanned image is time‑stamped and linked to the operator’s ID, ensuring accountability and audit readiness.
Every scanned image is time‑stamped and linked to the operator’s ID, ensuring accountability and audit readiness.
🏢 Where to Deploy the eSSL eBS‑5030A Baggage Scanner
✈️ Airports & Aviation
Check‑in luggage and cabin baggage screening.
Check‑in luggage and cabin baggage screening.
🚉 Metro & Railway Stations
High‑throughput passenger baggage inspection.
High‑throughput passenger baggage inspection.
🏨 Hotels & Commercial Buildings
Lobby, loading dock, and service entrance screening.
Lobby, loading dock, and service entrance screening.
🏛️ Government & Public Buildings
Courthouses, legislative buildings, and municipal offices.
Courthouses, legislative buildings, and municipal offices.
🏭 Industrial & Logistics Facilities
Prevent theft and inspect incoming/outgoing parcels.
Prevent theft and inspect incoming/outgoing parcels.
🎡 Stadiums & Event Venues
Temporary or permanent security checkpoints for large gatherings.
Temporary or permanent security checkpoints for large gatherings.
🏫 Educational Institutions
School and university campus entry screening.
School and university campus entry screening.
📦 Courier & Postal Hubs
Automated parcel and mail screening for dangerous goods.
Automated parcel and mail screening for dangerous goods.
🌟 Why Choose eSSL Pune as Your Baggage Scanner Partner?
Genuine eSSL Hardware
We supply factory‑fresh eBS‑5030A units with a full manufacturer warranty and strict compliance with eSSL security standards.
We supply factory‑fresh eBS‑5030A units with a full manufacturer warranty and strict compliance with eSSL security standards.
Expert Installation & Calibration
Our team handles site surveys, installation, conveyor alignment, X‑ray calibration, and operator training.
Our team handles site surveys, installation, conveyor alignment, X‑ray calibration, and operator training.
Seamless Network Integration
The network interface supports LAN connectivity, authorising multi‑terminal baggage checking and centralised monitoring.
The network interface supports LAN connectivity, authorising multi‑terminal baggage checking and centralised monitoring.
Best‑in‑Class Pricing & AMC Options
Competitive rates for the eSSL eBS‑5030A, plus optional annual maintenance contracts for preventative maintenance, calibration, and hardware support.
Competitive rates for the eSSL eBS‑5030A, plus optional annual maintenance contracts for preventative maintenance, calibration, and hardware support.
❓ Frequently Asked Questions – Baggage Scanner
What is the tunnel size of the eSSL eBS-5030A baggage scanner?
The eSSL eBS-5030A has a tunnel size of 500 mm (W) × 300 mm (H), making it suitable for screening hand luggage, briefcases, small parcels, and medium‑sized packages.
What is the maximum load capacity of the eBS-5030A conveyor belt?
The conveyor belt can handle a maximum uniform load of 150 kg, allowing the scanner to process heavy luggage and multiple small packages in a single pass.
How many X‑ray images can the eBS-5030A store?
The scanner can store up to 100,000 X‑ray images in real time, enabling comprehensive documentation for security audits and incident investigation.
Is the eBS-5030A safe for the operator and for items being scanned?
Yes. The leakage radiation is less than 0.06 μGy/h – well below international safety limits. It is also film‑safe for ISO 1600 film, and there is no residual radiation on scanned items.
What safety features does the eBS-5030A baggage scanner include?
The eBS-5030A includes X‑ray transmission under automatic control to prevent accidental exposure, a one‑key shutdown system, and a self‑diagnosis function that sends an alert if a malfunction is detected.
